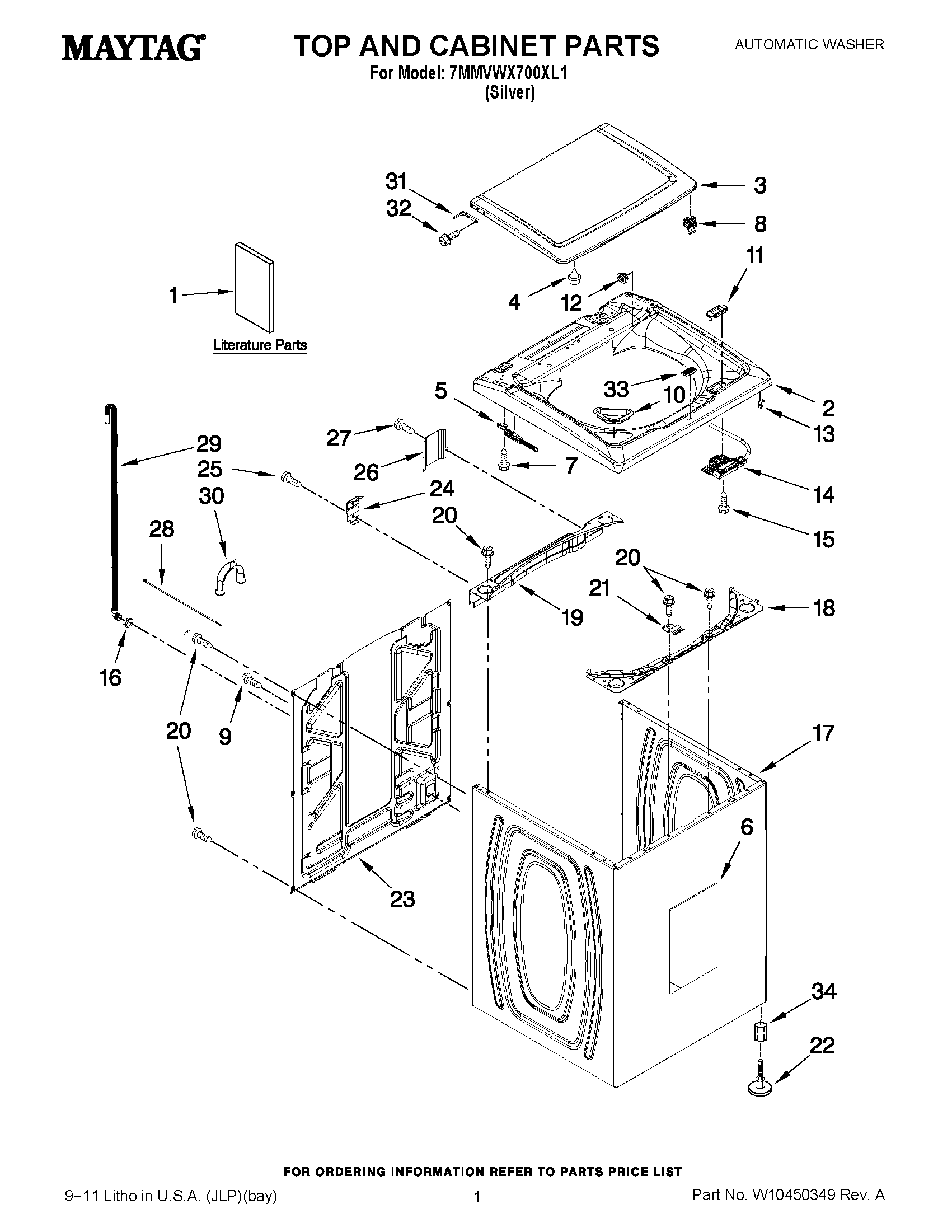

7MMVWX700XL1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10329765
1	MAY W10366295
1	MAY W10329770
1	MAY W10338674
1	MAY W10331110
2	TOP
3	MAY W10427125
4	MAY 9724509
5	HINGE, LID (RIGHT)
5	HINGE, LID (LEFT)
6	MAY W10414221
7	Screw
8	STRIKE, LID LOCK
9	SCREW
10	DISPENSER, BLEACH
11	BEZEL, LID LOCK
12	BEARING, LID HINGE (LEFT HAND)
12	BEARING, LID HINGE (RIGHT HAND)
13	Clip, Wire (4)
14	MAY W10238287
15	Screw
16	MAY 356138
17	CABINET (INCLUDES ITEMS 6, 18, 19, 20 & 22)
18	MAY W10215098
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	MAY W10248088
22	MAY W10335586
23	PANEL, REAR
24	MAY W10215102
25	SCREW
26	MAY W10215139
27	Screw, 10-32 x 5/8
28	TIE, CABLE
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	HINGE, WIRE (LEFT)
31	HINGE, WIRE (RIGHT)
32	SCREW
33	MAY W10323735
34	Nut, 3/8-16
