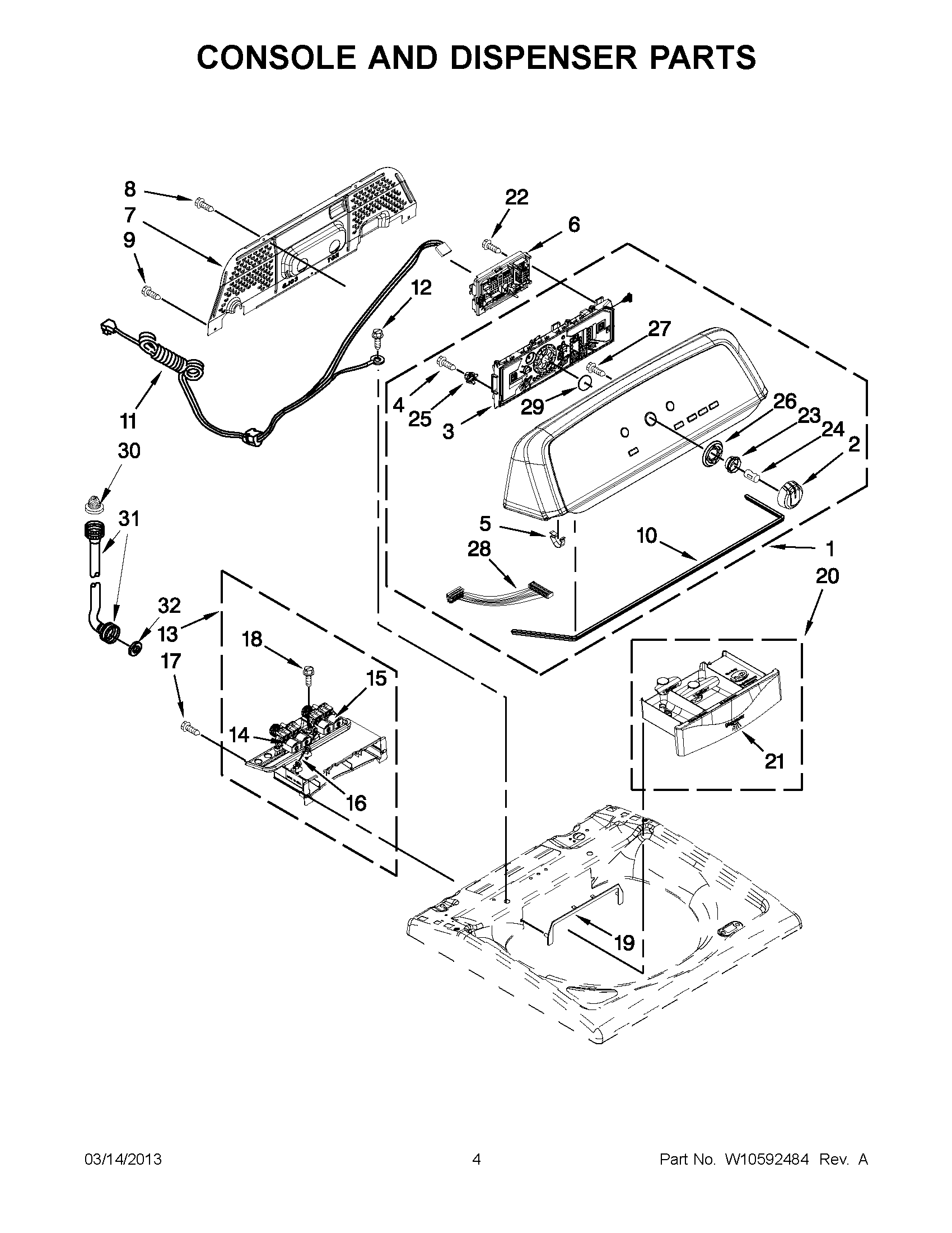

7MMVWX722BG0 02 – CONSOLE AND DISPENSER PARTS

Products

Position	Product
1	MAY W10571572
2	KNOB, CONTROL (CHROME)
3	MAY W10272638
4	MAY W10219342
5	MAY 8312709
6	MAY W10571581
7	MAY W10420984
8	SCREW
9	MAY 1157158
10	MAY W10280079
11	CORD-POWER
12	Screw, 10-32 x 5/8
13	MAY W10505504
14	MAY W10500742
15	MAY W10500739
16	MAY W10343675
17	SCREW, DISPENSER HOUSING MOUNTING
18	MAY 97787
19	MAY W10240946
20	MAY W10240960
21	MAY W10287478
22	SCREW
23	MAY W10326923
24	CLIP, SPRING
25	TENSIONER, FASCIA
26	MAY W10305134
27	SCREW
28	CABLE, USER INTERFACE
29	SEAL, USER INTERFACE
30	MAY 353362
31	MAY W10194211
31	MAY W10194210
32	ACCESSORY PARTS, WASHER, HOSE
