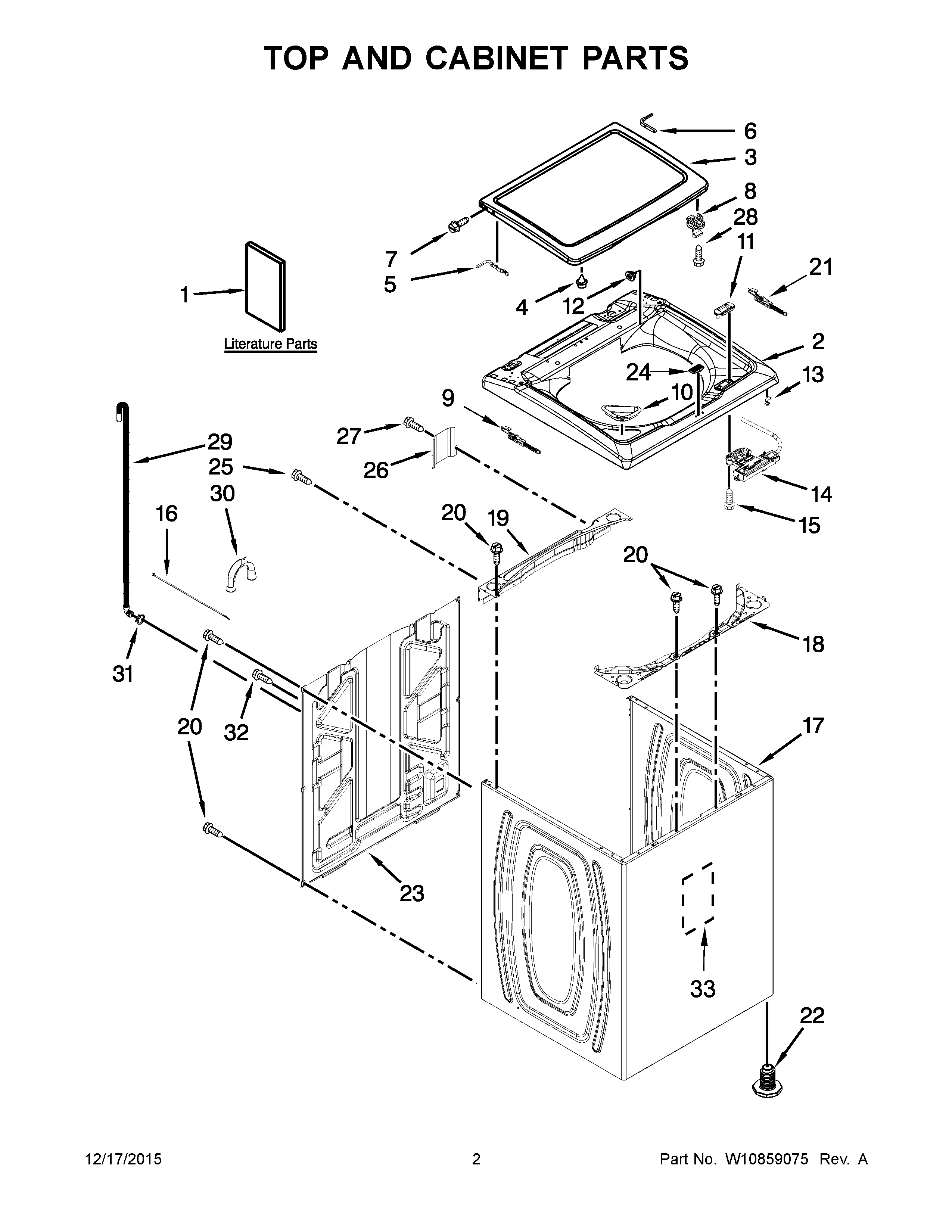

7MMVWX722BG1 02 – TOP AND CABINET PARTSadmin2025-04-26T11:00:15+00:007MMVWX722BG1 02 – TOP AND CABINET PARTS
Products
| Position | Product |
|---|
| 1D | MAY W10648285 |
| 1C | MAY W10331110 |
| 1B | MAY W10468342 |
| 1 | MAY W10478095 |
| 1A | MAY W10566773 |
| 2 | MAY W10420444 |
| 3 | MAY W10591223 |
| 4 | MAY 9724509 |
| 5 | HINGE, WIRE (LEFT) |
| 6 | HINGE, WIRE (RIGHT) |
| 7 | SCREW |
| 8 | MAY W10420456 |
| 9 | HINGE, LID (LEFT) |
| 10 | MAY W10468332 |
| 11 | MAY W10420458 |
| 12 | BEARING, LID HINGE (LEFT HAND) |
| 12A | BEARING, LID HINGE (RIGHT HAND) |
| 13 | Clip, Wire (4) |
| 14 | MAY W10744659 |
| 15 | Screw |
| 16 | TIE, CABLE |
| 17 | MAY W10503843 |
| 18 | MAY W10215098 |
| 19 | BRACE, CABINET TOP - REAR |
| 20 | MAY 1157158 |
| 21 | HINGE, LID (RIGHT) |
| 22 | MAY W10397994 |
| 23 | PANEL, REAR |
| 24 | MAY W10492808 |
| 25 | SCREW |
| 26 | MAY W10676061 |
| 27 | Screw, 10-32 x 5/8 |
| 28 | SCREW |
| 29 | HOSE, OUTER DRAIN ASSEMBLY |
| 30 | MAY W10280024 |
| 31 | MAY 356138 |
| 32 | SCREW |
| 33 | MAY W10414221 |
