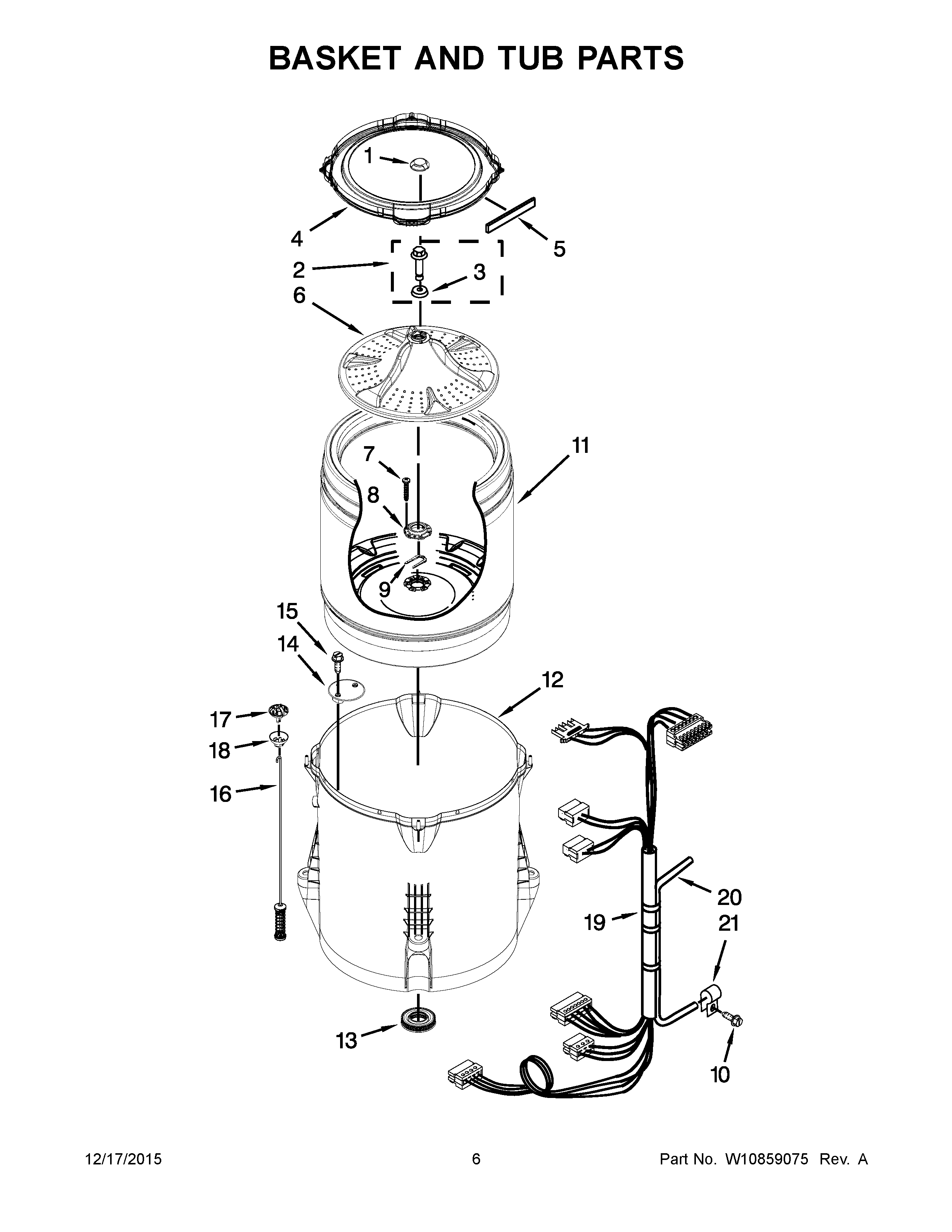

7MMVWX722BG1 04 – BASKET AND TUB PARTS

7MMVWX722BG1 04 – BASKET AND TUB PARTS

Written by

in

7MMVWX722BG1 04 – BASKET AND TUB PARTS

Products

PositionProduct
1MAY W10305251
2SCREW & WASHER
3MAY 3949550
4RING, TUB (INCLUDES ITEM 4)
5MAY W10205824
6MAY W10553968
7SCREW
8HUB – DRIVEN, BASKET
9RETAINER, DRIVE BLOCK
10SCREW
11MAY W10521297
12TUB
13MAY W10006371
14MAY W10215093
15Screw
16MAY W10748951
17BALL, SUSPENSION (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
18BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
19HARNESS, LOWER
20MAY W10429300
21CLAMP, CABLE
