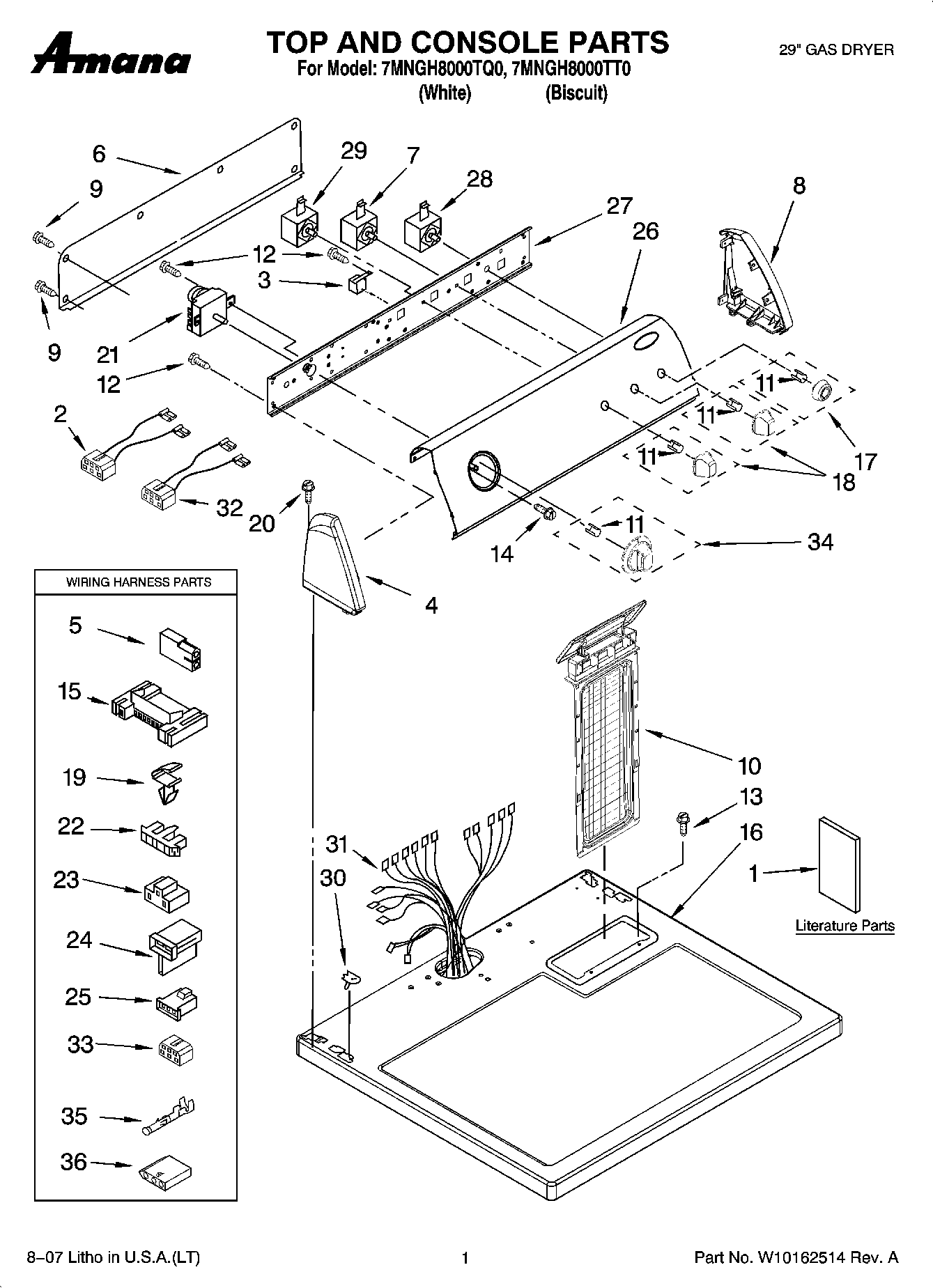

7MNGH8000TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10143415
1	MAY W10143416
1	MAY W10143418
1	MAY 8578217
2	MAY 3401695
3	MAY 694419
4	Cap, End (L.H.) (Biscuit)
4	Cap, End (L.H.) (White)
5	Plug, 2-Way Terminal
6	MAY 8274261
7	Switch, Temperature
8	Cap, End (R.H.) (White)
8	Cap, End (R.H.) (Biscuit)
9	Screw
10	MAY 8557858
10	LINT SCREEN WHITE
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	MAY 8533951
15	CONNECTOR (MOTOR)
16	MAY 8557930
16	Top (Biscuit)
17	Knob, Push-To-Start (White)
17	MAY W10112609
18	Knob, Control (2) (Biscuit)
18	Knob, Control (2) (White)
19	CLIP, HARNESS
20	Screw, Console
21	Timer Assembly (60 Hz.)
22	Connector-Timer
23	Connector (PTS) Relay
24	CONNECTOR, 2-POSITION (GAS VALVE)
25	MAY 3403498
26	MAY W10142363
26	MAY W10142365
27	MAY 8271418
28	Switch, Push-To-Start
29	Switch, Wrinkle Guard
30	Nut, Push-In
31	MAY 8299878
32	Jumper, Three Temperature
33	Connector
34	Timer Knob, Assembly (White)
34	MAY W10112608
35	Terminal
36	MAY 3936144
