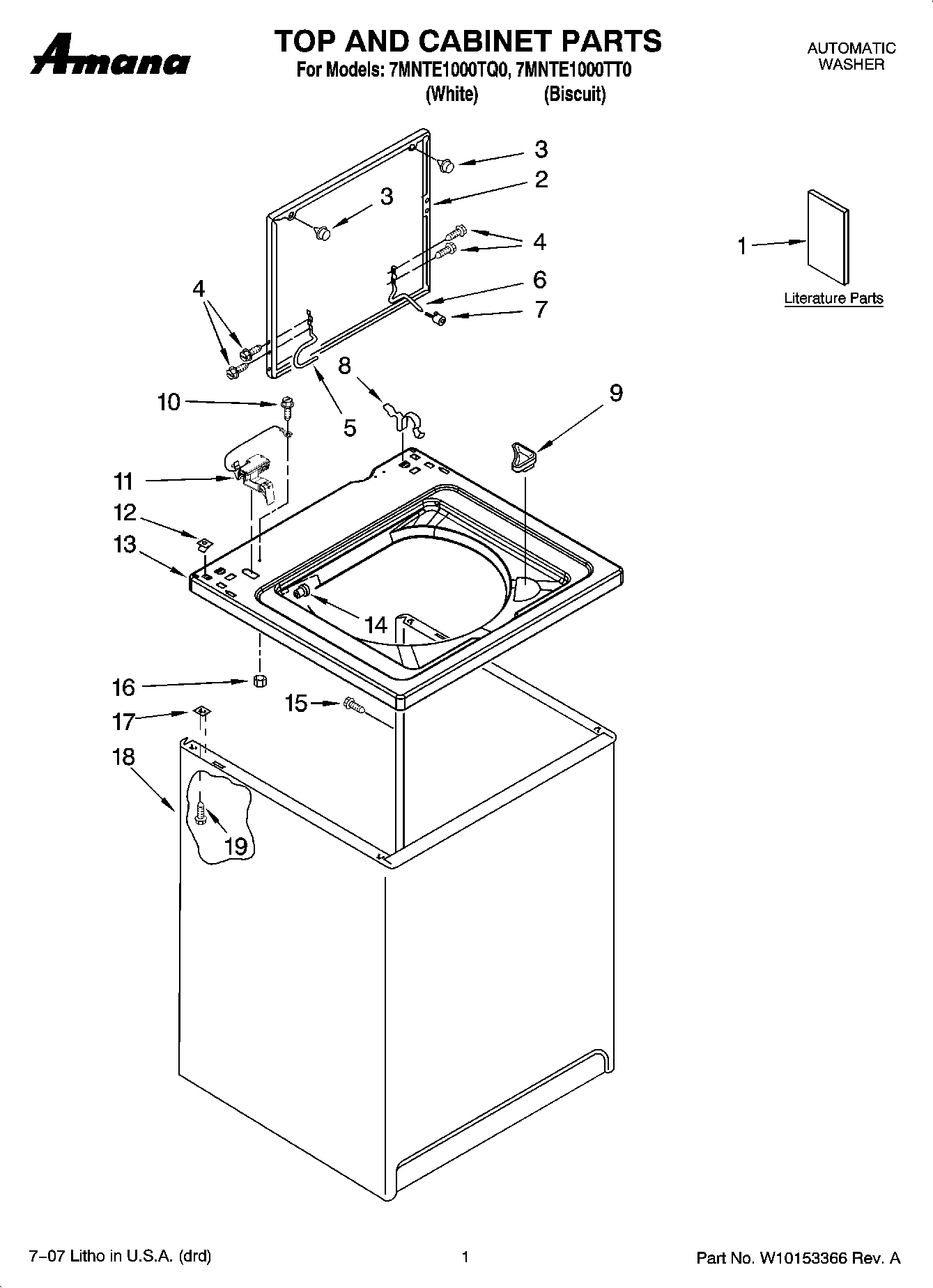

7MNTE1000TQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10131556
1	MAY W10131555
1	MAY 8542059
1	MAY W10131554
1	MAY W10131559
2	MAY W10096878
2	MAY W10096879
3	MAY 9724509
4	Screw And Washer
5	MAY 8318088
6	HINGE, LID (RIGHT HAND)
7	MAY 19119
8	MAY 62780
9	MAY 3362952
10	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
11	MAY 8318084
12	Nut, Push-In
13	MAY 8318066
13	MAY 8318064
14	Hinge, Bearing (2)
15	SCREW
16	MAY 8533959
17	MAY 62750
18	Cabinet
18	MAY 3954357
19	SCREW
