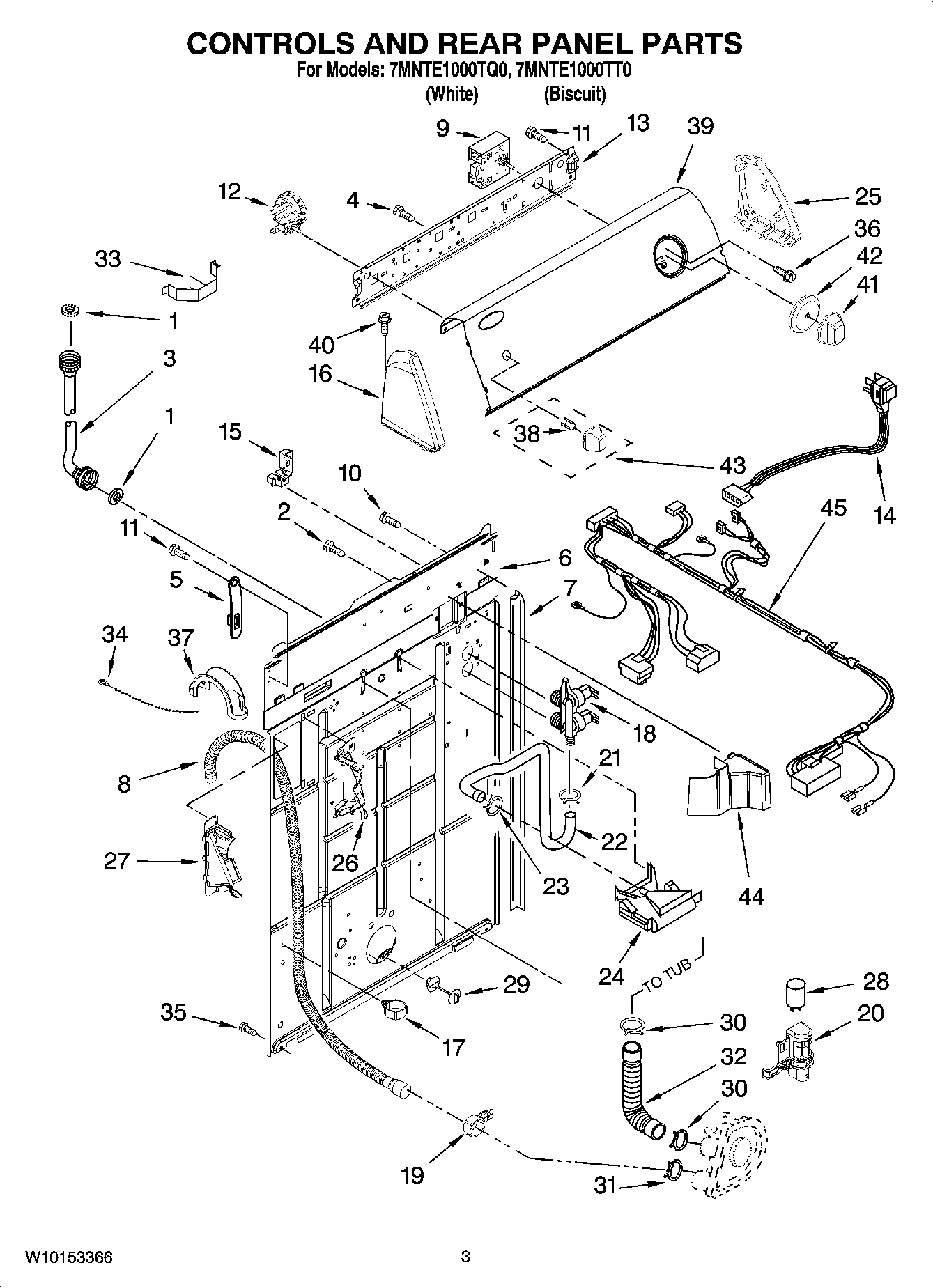

7MNTE1000TT0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	ACCESSORY PARTS, WASHER, INLET HOSE
2	SCREW
3	Hose, Water Inlet (Hot Water)
3	Hose, Water Inlet (2) (Blue Coupler)
4	SCREW
5	Strap, Console
6	MAY 8318015
7	MAY 62747
8	Drain Hose Assembly (Includes Items 22, 28 & 32)
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
11	SCREW,8-18 X 3/8
12	MAY 8577846
13	MAY 3948608
14	Cord, Power (Includes Item 15)
15	MAY 3952821
16	Cap, End (L.H.) (White)
16	Cap, End (L.H.) (Biscuit)
17	MAY 8541667
18	MAY 3952164
19	MAY 8541668
20	MAY 8318046
21	MAY 301958
22	MAY 8541607
23	MAY 370450
24	Thermister, Inlet
25	Cap, End (R.H.) (White)
25	Cap, End (R.H.) (Biscuit)
26	MAY 8541669
27	MAY 8541658
28	MAY 8572717
29	MAY 8519200
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	Clip, Harness & Pressure Switch
34	MAY 3347868
35	Screw, Mixing Valve Mounting
36	SCREW
37	U-Bend
38	CLIP, SPRING
39	MAY W10115423
39	MAY W10115424
40	Screw, Console
41	MAY W10110045
41	MAY W10112605
42	MAY W10112606
42	MAY W10110046
43	Knob, Control (2) (Biscuit)
43	Knob, Control (2) (White)
44	MAY 8314879
45	MAY W10151497
