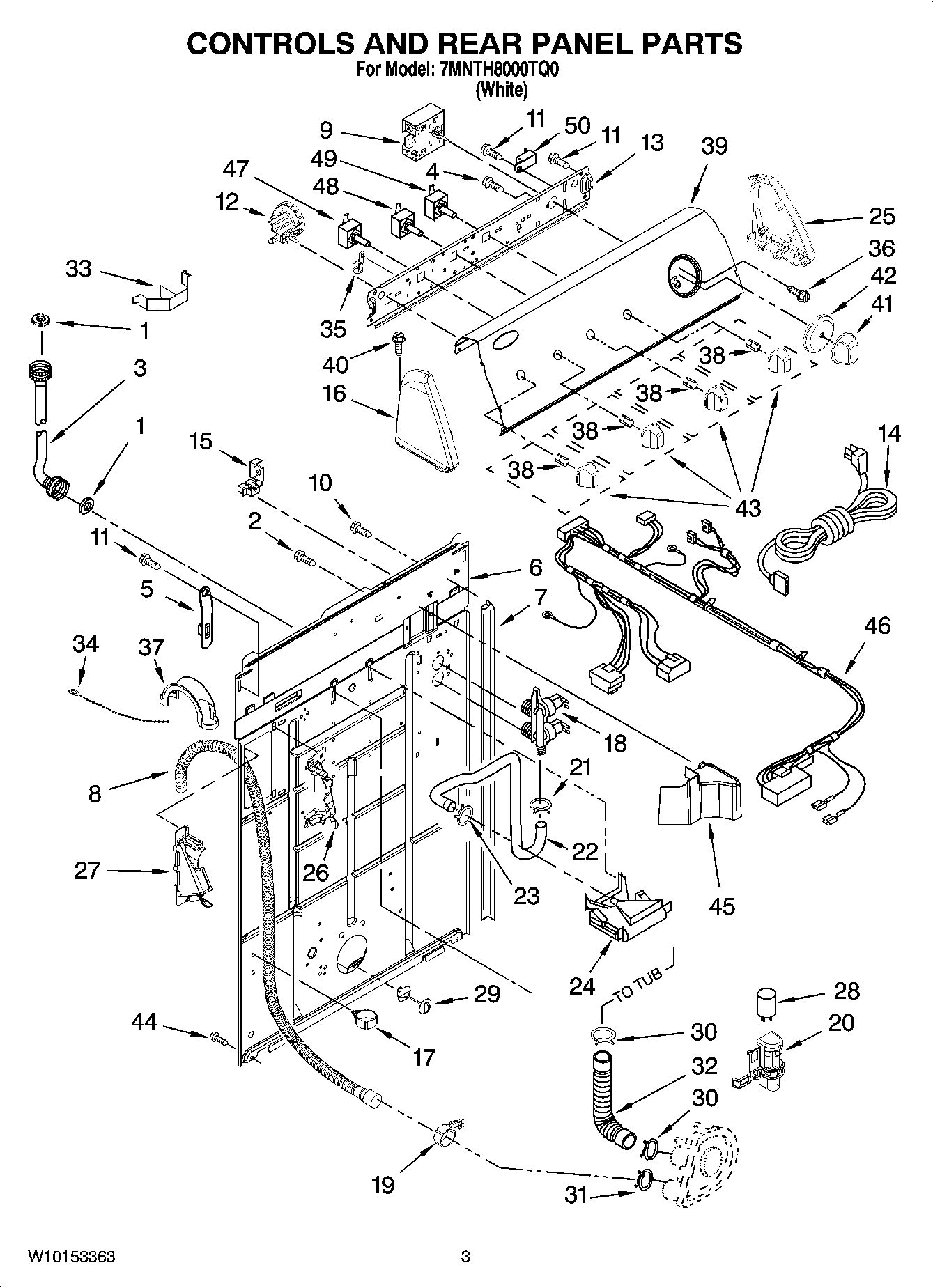

7MNTH8000TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	ACCESSORY PARTS, WASHER, INLET HOSE
2	SCREW
3	Hose, Water Inlet (2) (Blue Coupler)
3	Hose, Water Inlet (Hot Water)
4	SCREW
5	Strap, Console
6	MAY 8318015
7	MAY 62747
8	Drain Hose Assembly (Includes Items 22, 28 & 32)
9	MAY 3951702
10	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
11	SCREW,8-18 X 3/8
12	MAY 8577842
13	MAY 3948608
14	Cord, Power (Includes Item 15)
15	MAY 3952821
16	Cap, End (L.H.) (White)
17	MAY 8541667
18	MAY 3952164
19	MAY 8541668
20	MAY 8318046
21	MAY 301958
22	MAY 8541607
23	MAY 370450
24	Thermister, Inlet
25	Cap, End (R.H.) (White)
26	MAY 8541669
27	MAY 8541658
28	MAY 8572717
29	MAY 8519200
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	Clip, Harness & Pressure Switch
34	MAY 3347868
35	MAY 8317975
36	SCREW
37	U-Bend
38	CLIP, SPRING
39	MAY W10115429
40	Screw, Console
41	MAY W10110045
42	MAY W10110046
43	Knob, Control (2) (White)
44	Screw, Mixing Valve Mounting
45	MAY 8314879
46	MAY W10151489
47	MAY 3950347
48	MAY 3949187
49	Switch, Rotary
50	MAY 694419
