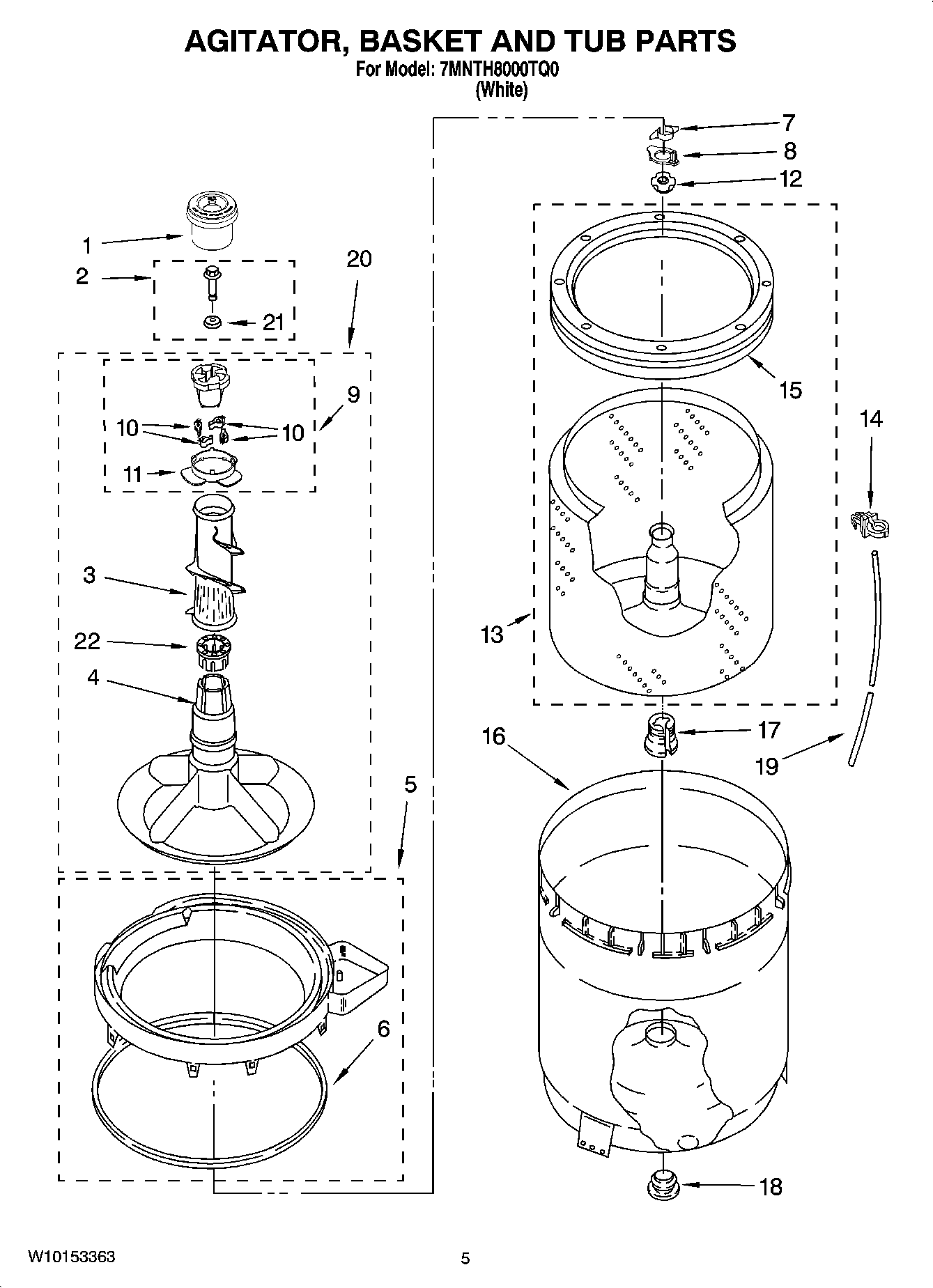

7MNTH8000TQ0 03 – AGITATOR, BASKET AND TUB PARTS

7MNTH8000TQ0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

7MNTH8000TQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1MAY 8575076
2Screw & Washer
3MAY 3363003
4MAY 3951632
5Tub Ring
6MAY 3976308
7MAY 3354845
8MAY 8543666
9MAY 3951682
10Dog, Agitator (4)
11Bearing, Cam Driven
12MAY 21366
13MAY 8526017
14Clip, Harness (1)
15Ring, Balance
16MAY 63849
17Block, Drive
18MAY 383727
19MAY 3347780
20MAY 3951744
21MAY 3949550
22Spacer, Thrust
