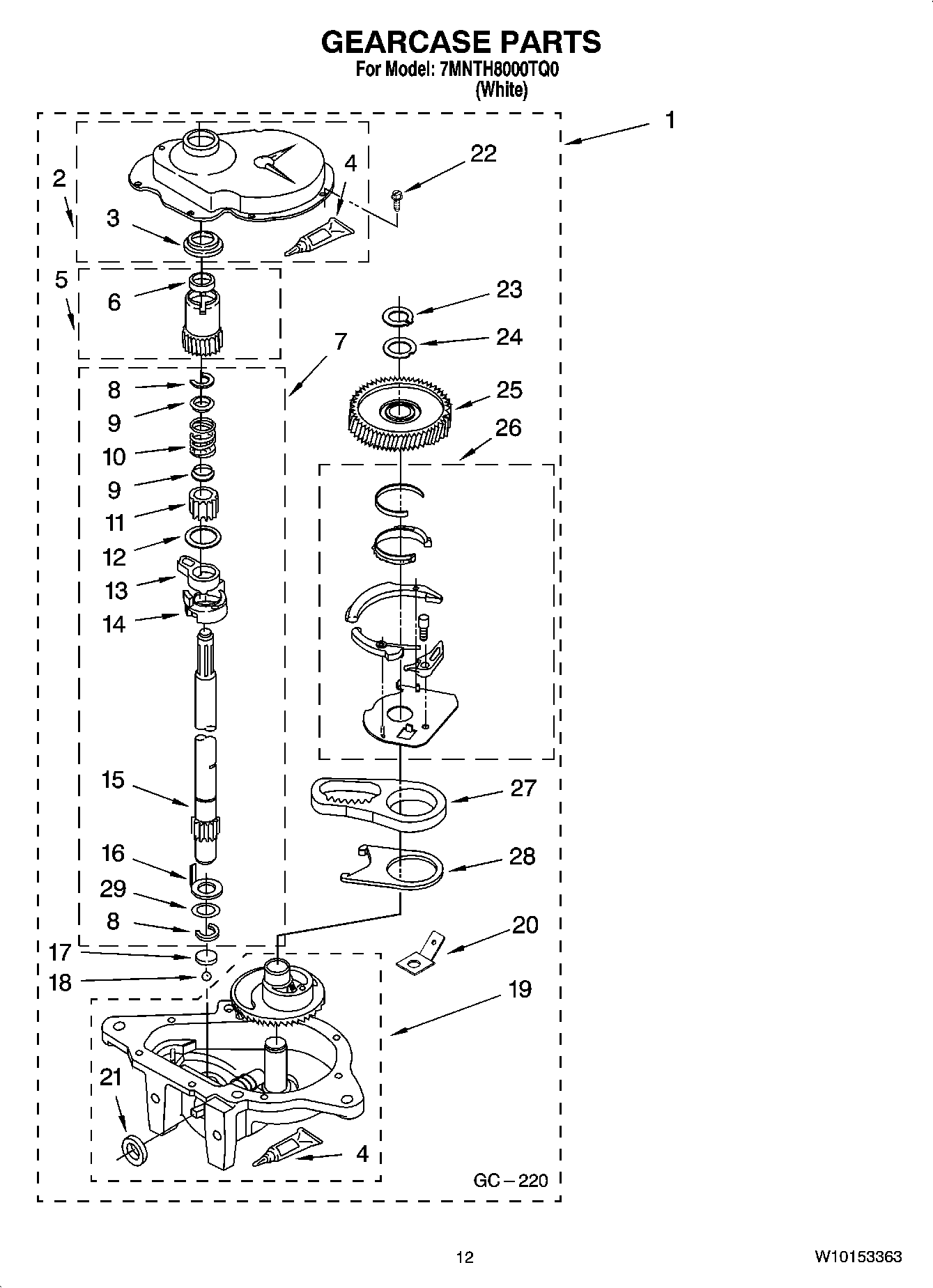

7MNTH8000TQ0 08 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	Fabric Dispenser
NI	MAY 285208
NI	CNTRL-ELEC
NI	MAY 280129
NI	MAY 280130
NI	SEALER, GASKET (.20 FL. OZ.) (6ML)
NI	MAY 280131
NI	WATER SYSTEM PARTS, DRAIN PROTECTOR
NI	MAY 350572
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
1	Gearcase (Complete)(Refer To Page 17 For Further Breakdown)
2	MAY 285202
3	MAY 3349985
5	Pinion, Spin (Includes Illus. 25)
6	Seal, Spin Pinion
7	MAY 389387
8	MAY 90369
9	Retainer, Spring (2)
10	MAY 62676
11	Gear, Agitate (Includes 15 & 29)
12	MAY 62619
13	MAY 62580
14	MAY 62581
15	Shaft, Agitator (Includes 11 & 29)
16	MAY 62618
17	Bearing, Thrust (Includes 18)
18	Ball, Bearing (Includes 17)
19	MAY 389230
20	MAY 3949116
21	MAY 285352
22	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
23	MAY 3362552
24	MAY 285735
25	MAY 62570
26	MAY 388253
27	MAY 3349296
28	MAY 62621
29	MAY 388815
