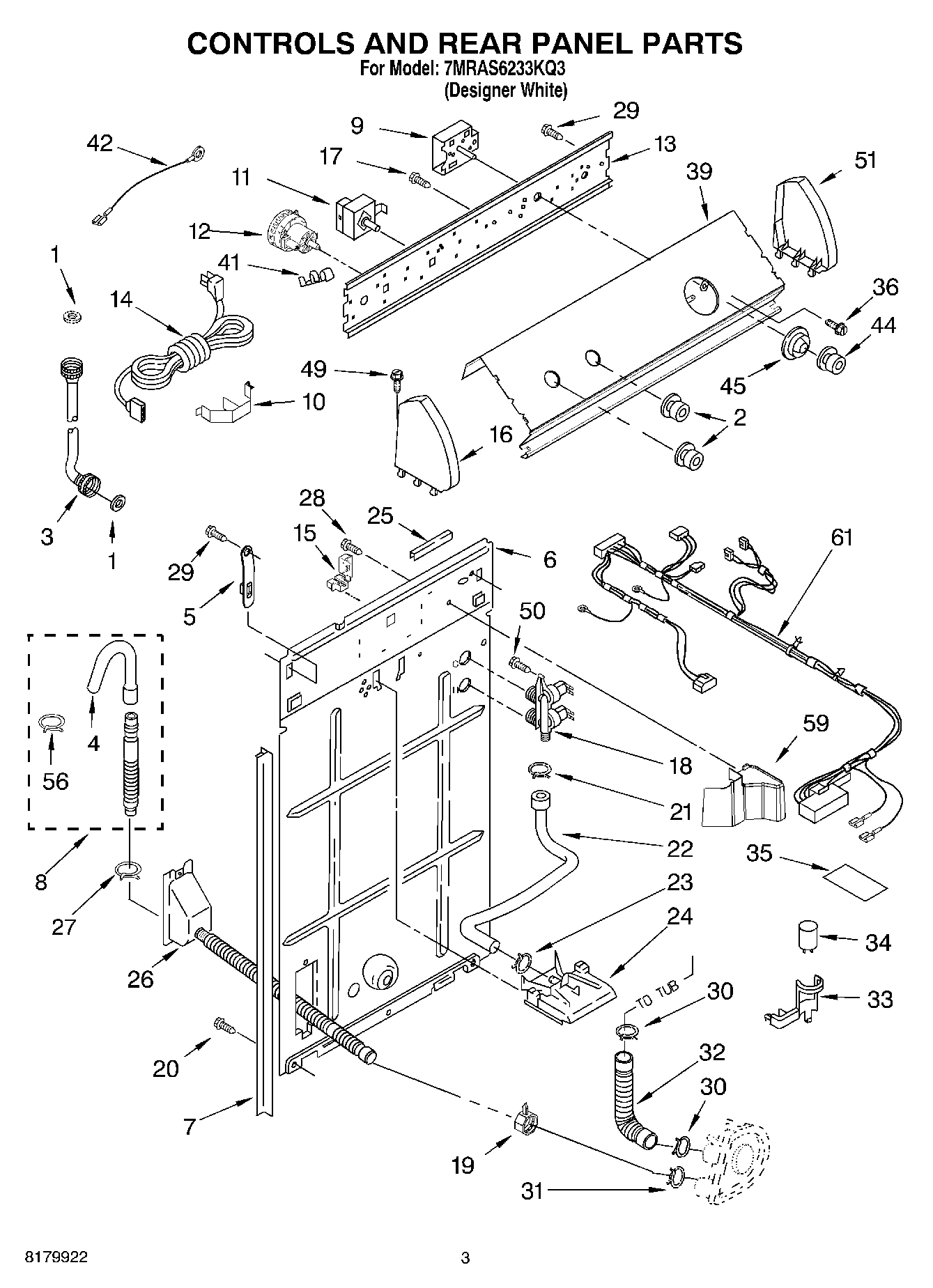

7MRAS6233KQ3 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Knob, Control (2)
3	WP89503 Whirlpool Washer Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285702 Whirlpool Extensions
8	285666 Whirlpool Drain Hose 10'
9	WP3953146 Whirlpool Timer
10	Clip, Harness & Pressure Hose
11	WPW10168256 Whirlpool Temperature Switch
12	SWITCH-WL
13	WP3948608 Whirlpool Bracket
14	W10130795 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
17	Screw (6)
18	285805 Whirlpool Washer Water Inlet Valve
19	Clamp, Hose
20	WP3390631 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Edge Protector
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	WP3351614 Whirlpool Screw
29	WP90767 Whirlpool Screw
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Capacitor
34	CAPACITOR
35	Shield, Capacitor
36	WP3400818 Whirlpool Screw
39	Panel, Console
41	W10113937 Whirlpool Clamp
42	Wire, Ground
44	W10807860 Whirlpool White Control Knob
45	Dial, Timer
49	WP388326 Whirlpool Screw
50	WP9740848 Whirlpool Dishwasher Screw
51	Cap, End (R.
56	WP3357331 Whirlpool Clamp
59	Sh
61	WPL 3956139
