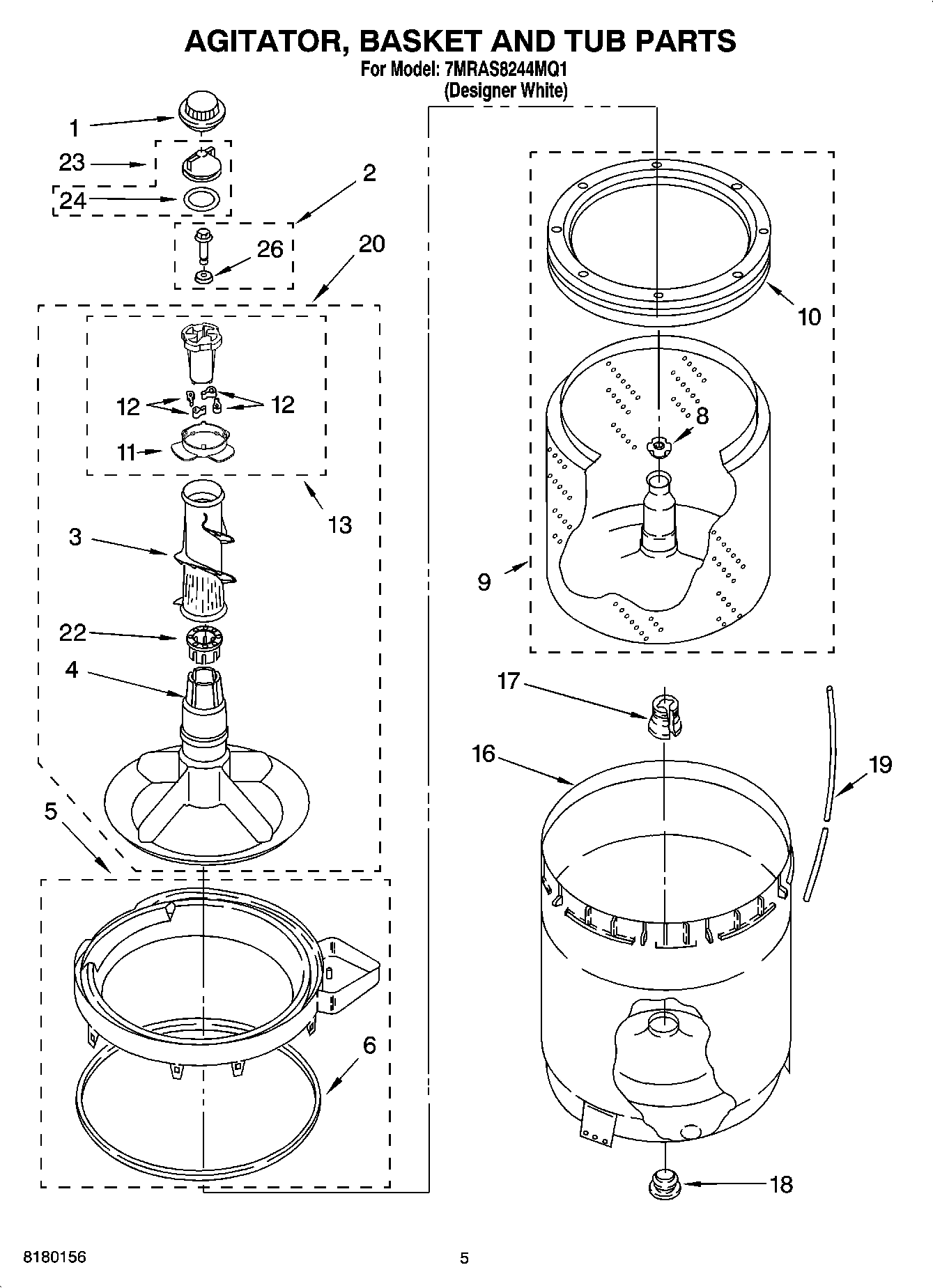

7MRAS8244MQ1 03 – AGITATOR, BASKET AND TUB PARTS

7MRAS8244MQ1 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

7MRAS8244MQ1 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP3348752 Whirlpool Agitator Mover
4AGITATOR
5W10880720 Whirlpool Tub Ring
6WP3976308 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9W10389329 Whirlpool Microwave Basket
10WP387240 Whirlpool Balance Ring
11WP3363661 Whirlpool Bearing Cam
1280040 Whirlpool Washer Agitator Dog Kit
13285811 Whirlpool Washer Agitator Repair Kit
1663849 Whirlpool Outer Tub Primary Assembly
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
20285565 Whirlpool Agitator Assembly
22285587 Whirlpool Thrust Washer
23WPW10074580 Whirlpool Agitator Inner Cap and Seal
24WPW10072840 Whirlpool Seal Assembly
26WP3949550 Whirlpool Gasket Assembly
