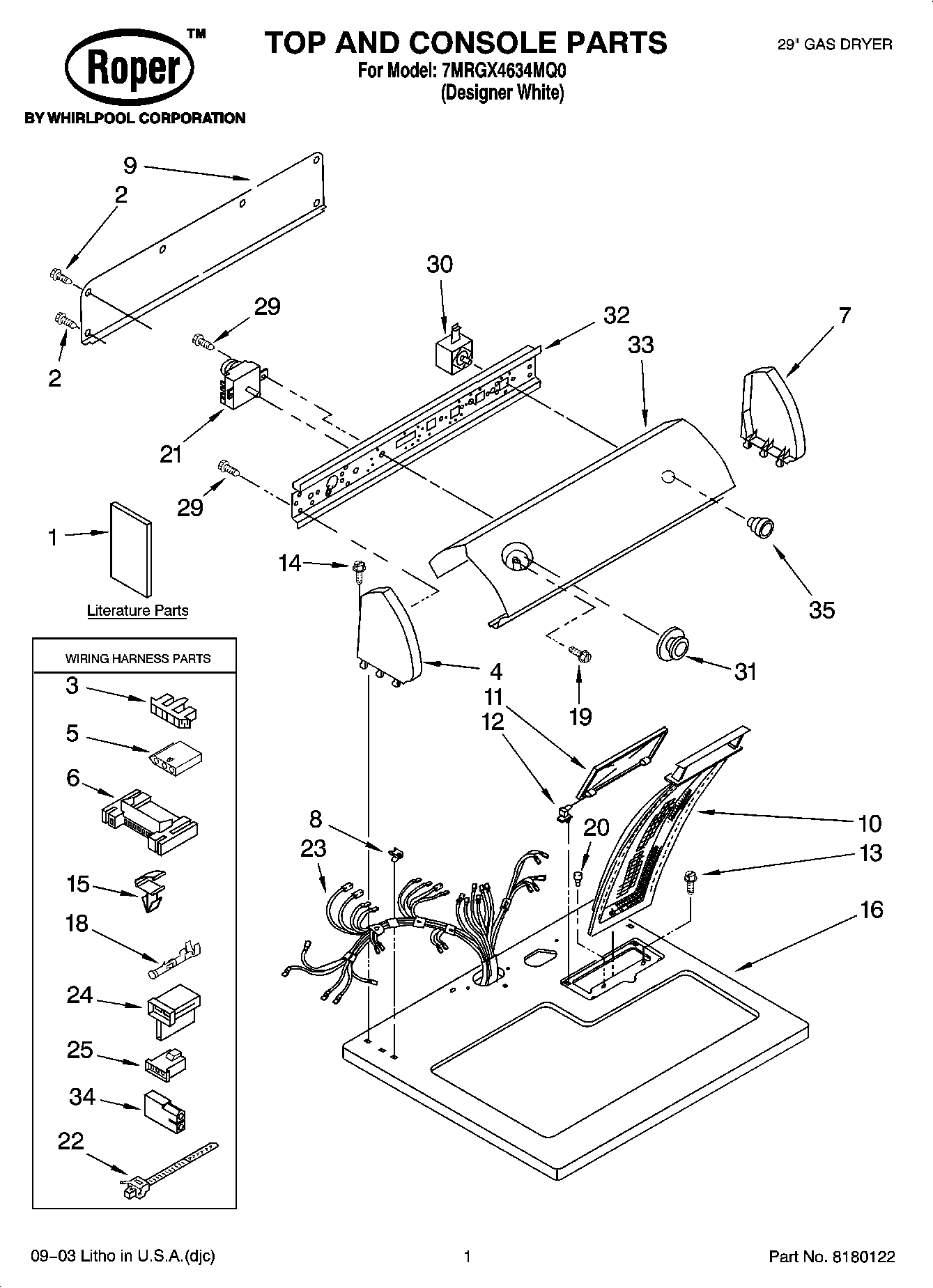

7MRGX4634MQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Instructions, Installation
1	Wiring Diagram
1	WPL 677818
1	Literature Parts (Guide, Use & Care)
1	Following May Be Purchased
1	DO-IT-YOURSELF REPAIR MANUALS
2	WP693995 Whirlpool Screw
3	Connector, Timer
5	3936144 Whirlpool Connector
6	3395683 Whirlpool Connector
7	279960 Whirlpool Endcap Assembly
8	WP357213 Whirlpool Hinge Stopper
9	W10103406 Whirlpool Rear Panel
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP3394427 Whirlpool Clip
16	Top
18	WP94614 Whirlpool Terminal
19	3400859 Whirlpool Screw
20	Bumper, Lint Lid
21	WP8299764 Whirlpool Timer
22	Tie, Cable
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP3977456 Whirlpool Start Switch
31	Timer Knob Assembly
32	Bracket, Control
33	Panel, Control
34	Receptacle, Latching (2-Way) (Uses Terminal 94614)
35	KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
35	350930 Whirlpool White Spray Paint
35	350938 Whirlpool Spray Gun
35	72017 Whirlpool Appliance Touch-Up Paint White
35	799344 Whirlpool Refrigerator Paint
35	4392065 Whirlpool Dryer Maintenance Kit
35	WP689790 Whirlpool Dryer Rack
35	WP3957800 Whirlpool Knob
35	ACCESSORY PARTS
