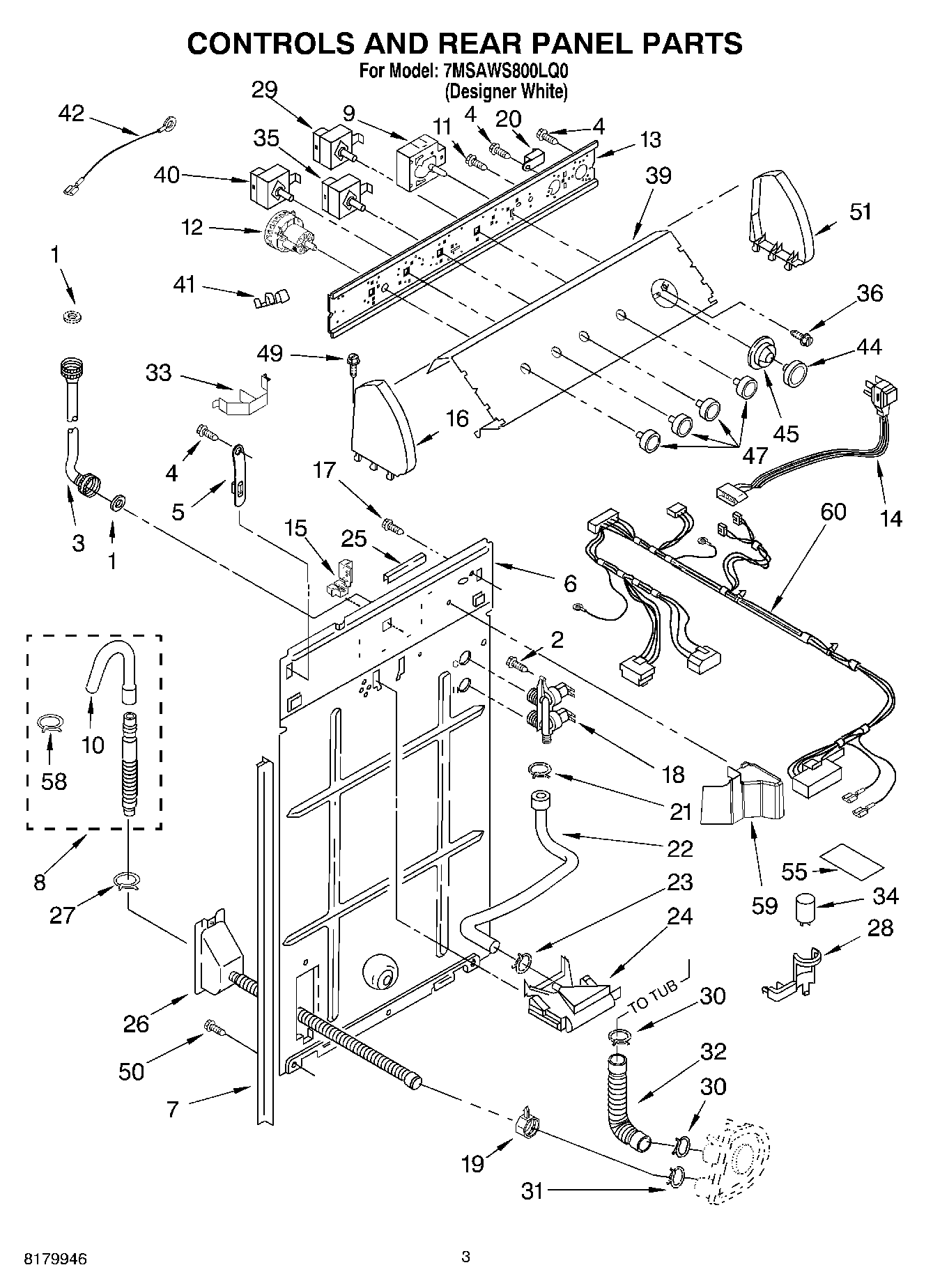

7MSAWS800LQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	WP89503 Whirlpool Washer Fill Hose
4	WP90767 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	WP3357027 Whirlpool Nozzle Assembly
11	Screw (6)
12	W10337780 Whirlpool Pressure Switch
13	WP3948608 Whirlpool Bracket
14	W10130795 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
17	WP3351614 Whirlpool Screw
18	285805 Whirlpool Washer Water Inlet Valve
19	Clamp, Hose
20	WP694419 Whirlpool Buzzer Adjuster
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Edge Protector
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	Clip, Capacitor
29	W10851055 Whirlpool Cycle Switch
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
34	CAPACITOR
35	WPW10168257 Whirlpool Cycle Switch
36	WP3400818 Whirlpool Screw
39	Panel, Console
40	Switch, Water Temperature
41	W10113937 Whirlpool Clamp
42	Wire, Ground
44	W10807860 Whirlpool White Control Knob
45	WP3957841 Whirlpool Dial
47	WP3957796 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.
55	Shield, Capacitor
58	WP3357331 Whirlpool Clamp
59	Sh
60	WPL 3956172
