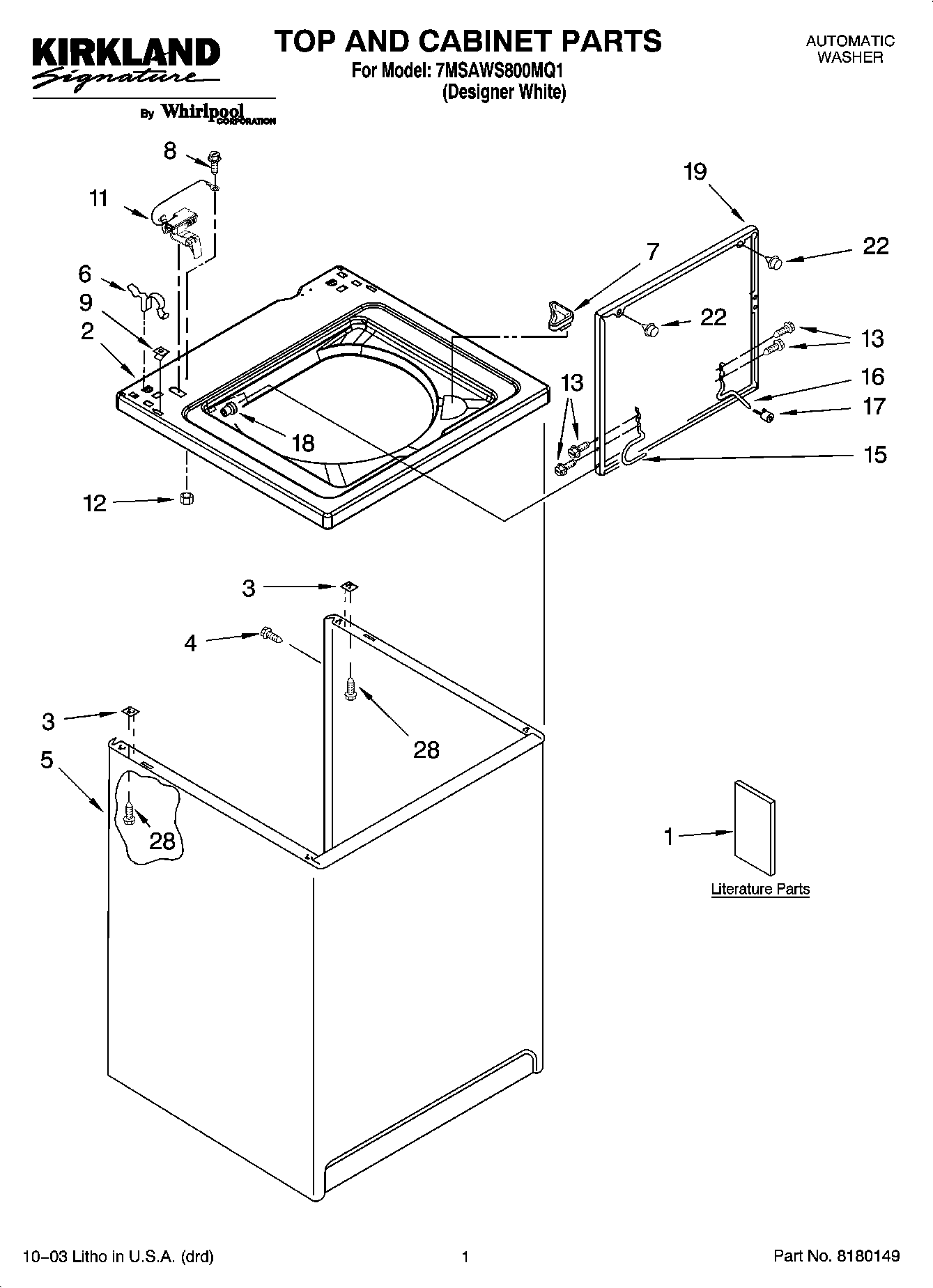

7MSAWS800MQ1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Literature Parts (Energy Guide)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Installation Instructions)
2	Top (White)
3	WP62750 Whirlpool Spacer
4	WP308685 Whirlpool Microwave Screw
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WP3362952 Whirlpool Bezel
8	WP3351614 Whirlpool Screw
9	WP357213 Whirlpool Hinge Stopper
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	W10080180 Whirlpool Nut
13	SCREW
15	8318088 Whirlpool Hinge Assembly
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	WPW10193857 Whirlpool Lid Assembly
22	WP9724509 Whirlpool Bumper
28	WP3390631 Whirlpool Screw
