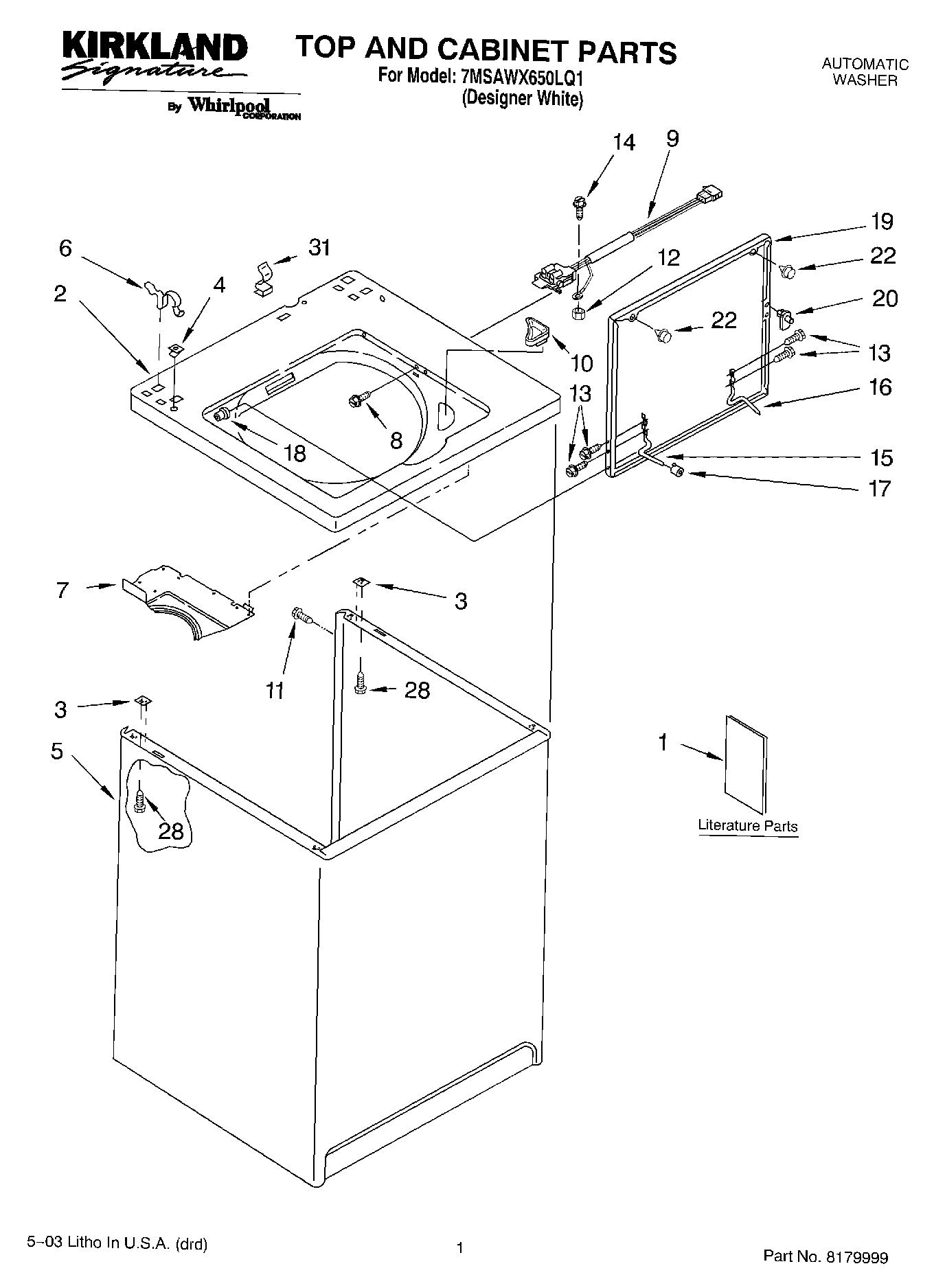

7MSAWX650LQ1 01 – TOP AND CABINET PARTS

7MSAWX650LQ1 01 – TOP AND CABINET PARTS

Written by

in

7MSAWX650LQ1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Use & Care Guide)
1Literature Parts (Energy Guide)
1Literature Parts (Installation Instructions)
1Manual, (Washer) Do-It-Yourself
1Literature Parts (Wiring Diagram)
2Top (White)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7Shield, Lid Switch
8WP3356311 Whirlpool Screw
9WP3950298 Whirlpool Lid Switch
10WP3362952 Whirlpool Bezel
11WP308685 Whirlpool Microwave Screw
12W10080180 Whirlpool Nut
13SCREW
14WP3351614 Whirlpool Screw
15WP54584 Whirlpool Hinge
16WP91770 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
28WP3390631 Whirlpool Screw
31WP90016 Whirlpool Clip
