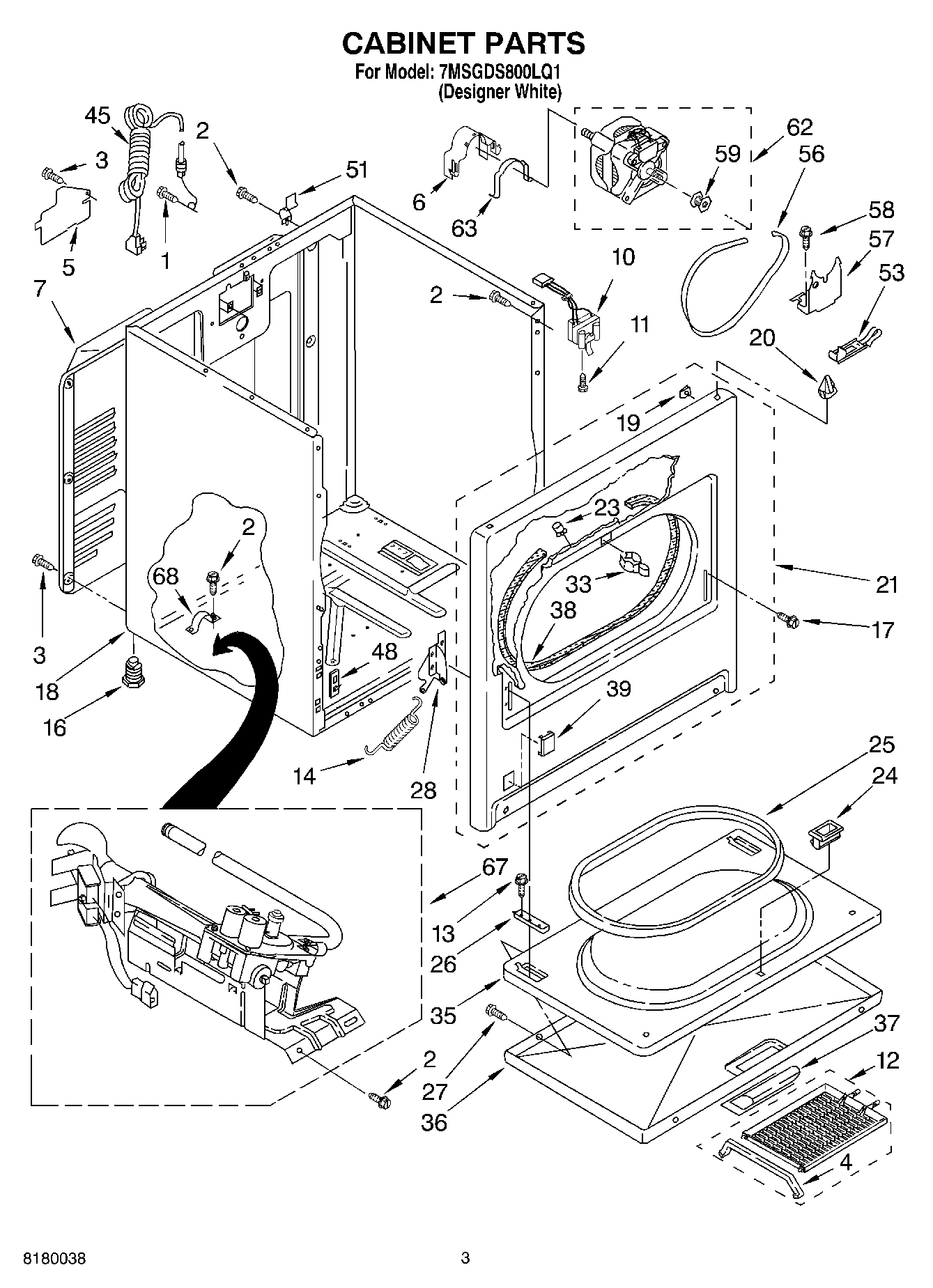

7MSGDS800LQ1 02 – CABINET PARTS

7MSGDS800LQ1 02 – CABINET PARTS

Written by

in

7MSGDS800LQ1 02 – CABINET PARTS

Products

PositionProduct
1W10850756 Whirlpool Screw
2SCREW
3WP693995 Whirlpool Screw
4Bracket, Dryer Rack
5W11539855 Whirlpool Refrigerator Pump
6WP3404162 Whirlpool Clamp
7280043 Whirlpool Rear Panel
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
123406839 Whirlpool Drying Rack
13WP308685 Whirlpool Microwave Screw
14WPW10041960 Whirlpool Door Spring
1649621 Whirlpool Leveling Feet
17Screw, 10-32 x 1/2
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21279740 Whirlpool Panel Primary with O/S2
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25W10906683 Whirlpool Door Seal
26W11252547 Whirlpool Clip Assembly
27WP694091 Whirlpool Screw
28WP8066056 Whirlpool Door Hinge
28WP8066057 Whirlpool Door Hinge
33279570 Whirlpool Dryer Door Latch Kit
35WP695737 Whirlpool Door
36WP3393549 Whirlpool Door Assembly
37WP348721 Whirlpool Handle
38W11035878 Whirlpool Bearing and Seal
39Plug, Front Panel (White)
45W11222083 Whirlpool Power Cord
48W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
62279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
67W10823508 Whirlpool Gas Burner
68341029 Whirlpool Clamp
