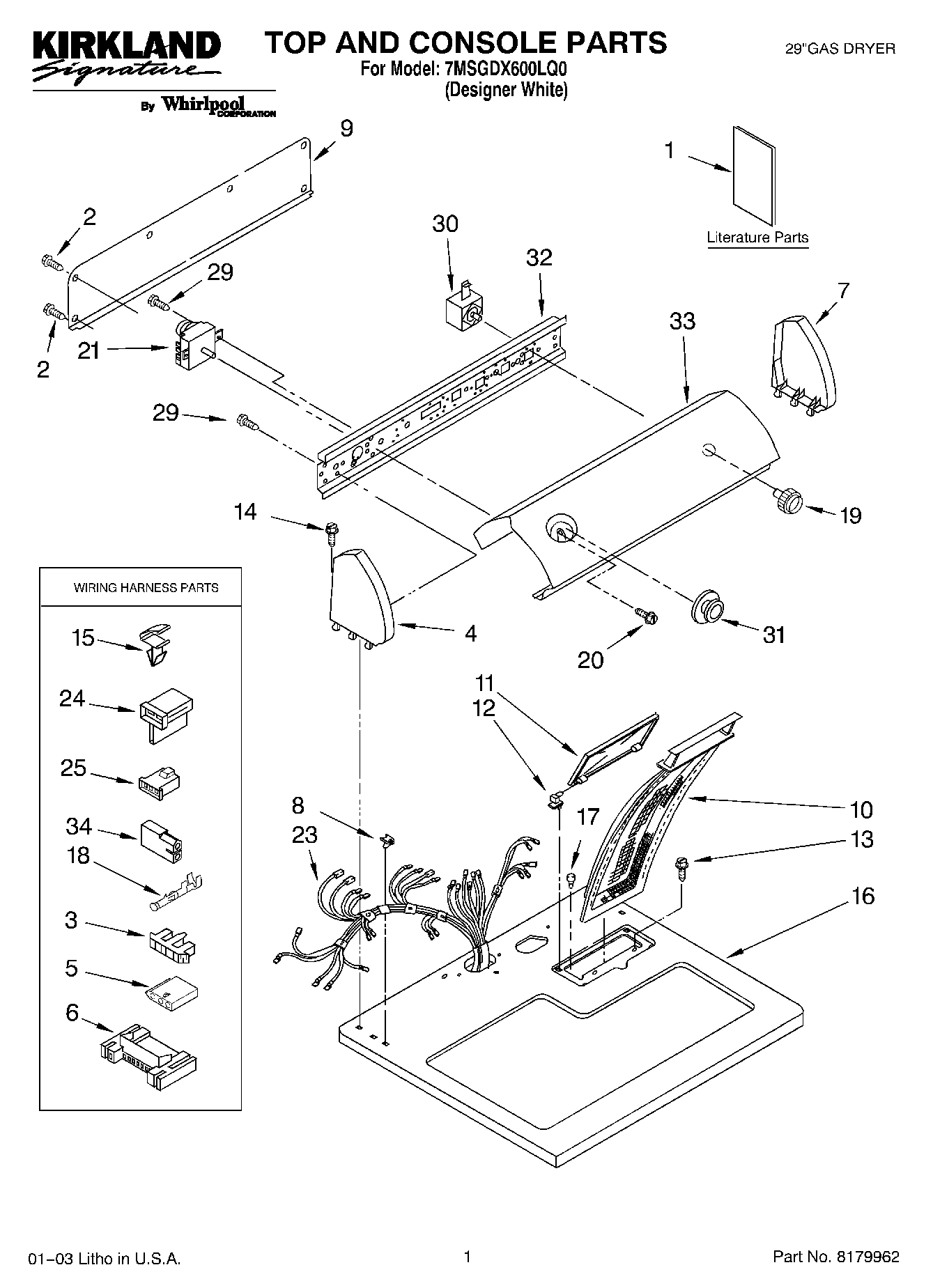

7MSGDX600LQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	WPL 677818
1	Literature Parts (Guide, Use & Care)
1	Literature Parts (Instructions, Installation)
1	DO-IT-YOURSELF REPAIR MANUALS
1	Following May Be Purchased
1	Wiring Diagram
2	WP693995 Whirlpool Screw
3	Connector, Timer
5	3936144 Whirlpool Connector
6	3395683 Whirlpool Connector
7	279960 Whirlpool Endcap Assembly
8	WP357213 Whirlpool Hinge Stopper
9	W10103406 Whirlpool Rear Panel
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP3394427 Whirlpool Clip
16	Top
17	Bumper, Lint Lid
18	WP94614 Whirlpool Terminal
19	WP3957800 Whirlpool Knob
20	3400859 Whirlpool Screw
21	WP8299764 Whirlpool Timer
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP3977456 Whirlpool Start Switch
31	WP3957746 Whirlpool Knob Assembly
32	Bracket, Control
33	Panel, Control
34	72017 Whirlpool Appliance Touch-Up Paint White
34	350938 Whirlpool Spray Gun
34	KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
34	799344 Whirlpool Refrigerator Paint
34	Receptacle, Latching (2-Way) (Uses Terminal 94614)
34	350930 Whirlpool White Spray Paint
34	WP689790 Whirlpool Dryer Rack
34	4392065 Whirlpool Dryer Maintenance Kit
34	ACCESSORY PARTS
