7MT7118XDQ0 03 – CABINET, LITERATURE

7MT7118XDQ0 03 – CABINET, LITERATURE

Written by

in

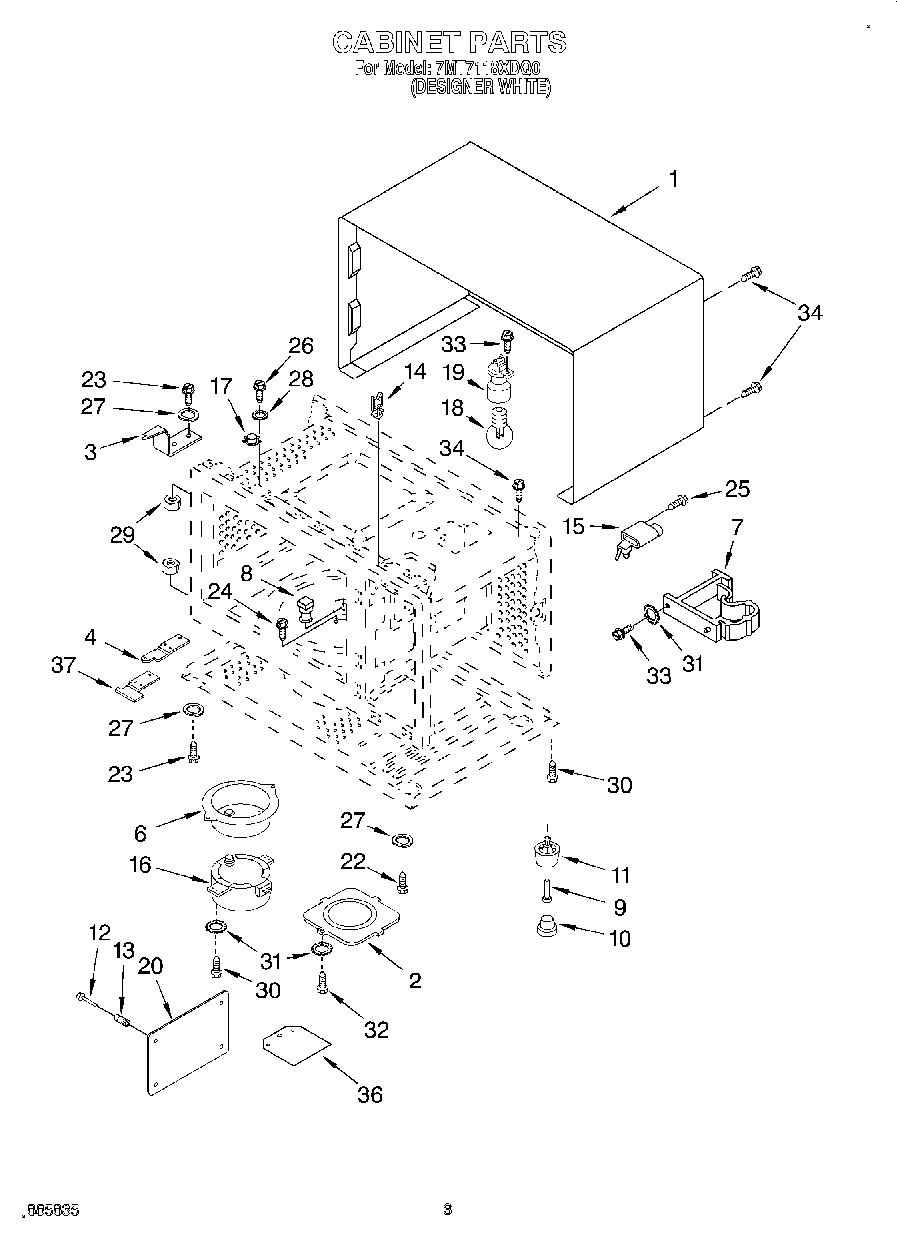

7MT7118XDQ0 03 – CABINET, LITERATURE

Products

Position	Product
	Cooking Guide Label
	Use & Care Guide
1	Cover, Oven (White Model)
2	Cover, Motor
3	Hinge, Upper
4	Hinge, Lower
6	Motor Case
7	Spacer, Back
8	Shaft, Turntable
9	Nail, Foot
10	Pan Foot
11	Oven Foot
12	Nail, Plastic
13	Bushing, Nail
14	Clip, Wire
15	Strain Relief
16	Motor, Turntable
17	Thermostat
18	Lamp
19	Holder, Lamp
20	Cover
22	8169480 Whirlpool Microwave Screw
23	Screw
24	Screw
25	Screw
26	Screw
27	WP8533914 Whirlpool Lock
28	Washer
29	Nut
30	Screw
31	Screw
32	Screw
33	Screw
34	Screw
36	Plate, Rubber
37	Plate, Spacer
