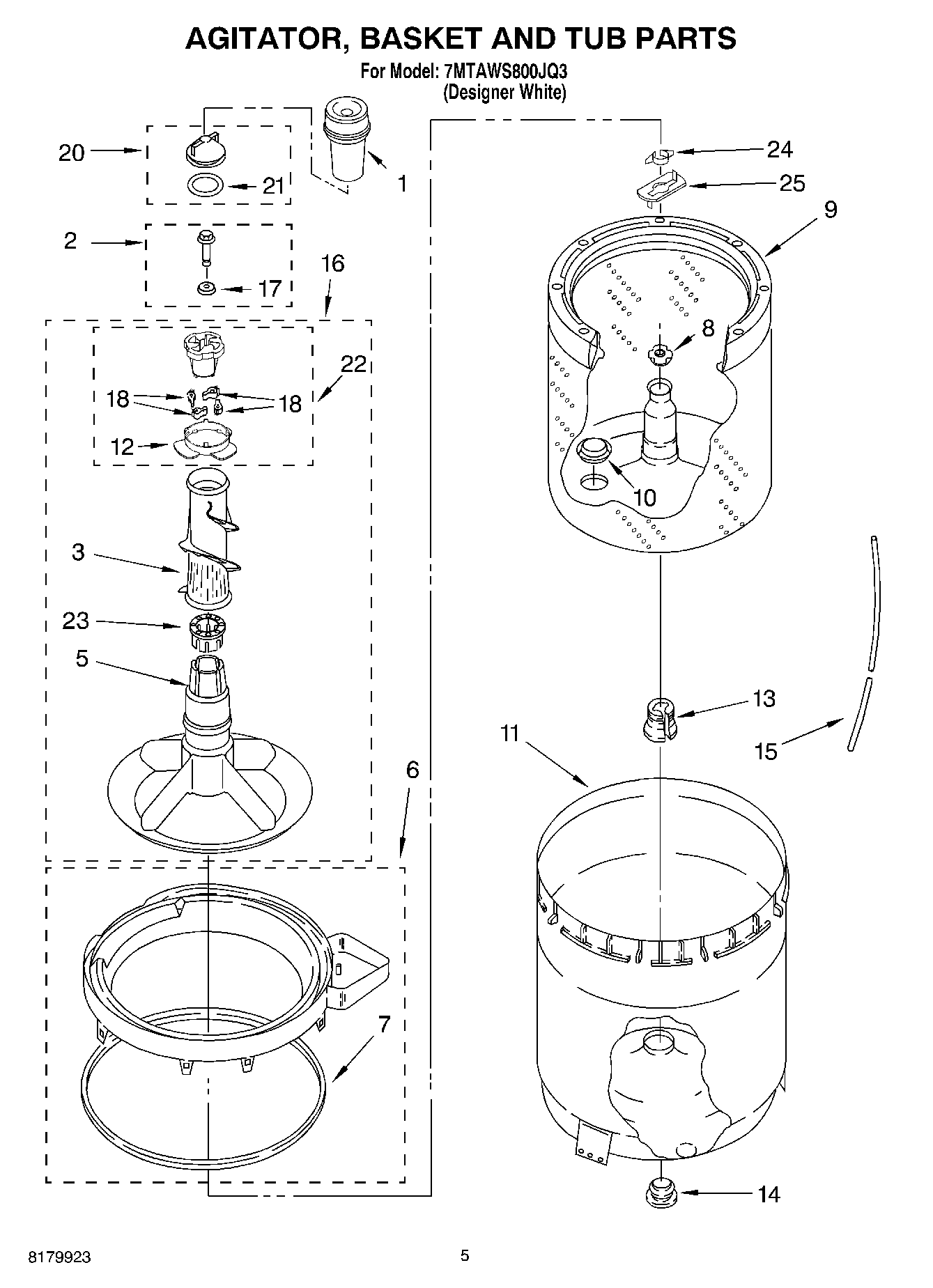

7MTAWS800JQ3 03 – CONTROLS AND REAR PANEL, AGITATOR,

7MTAWS800JQ3 03 – CONTROLS AND REAR PANEL, AGITATOR,

Written by

in

7MTAWS800JQ3 03 – CONTROLS AND REAR PANEL, AGITATOR,

Products

PositionProduct
163580 Whirlpool Washer Fabric Softener Dispenser
2WP358237 Whirlpool Agitator Bolt
3WP3348752 Whirlpool Agitator Mover
5AGITATOR
6W10880720 Whirlpool Tub Ring
7WP3976308 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9W10389329 Whirlpool Microwave Basket
10285868 Whirlpool Washer Filter Plug Kit
1163849 Whirlpool Outer Tub Primary Assembly
12WP3363661 Whirlpool Bearing Cam
13WP389140 Whirlpool Drive Block or Bell
14W10814296 Whirlpool Washer Center Post Seal Gasket
15WP353244 Whirlpool Hose
16285565 Whirlpool Agitator Assembly
17WP3949550 Whirlpool Gasket Assembly
1880040 Whirlpool Washer Agitator Dog Kit
20WPW10074580 Whirlpool Agitator Inner Cap and Seal
21WPW10072840 Whirlpool Seal Assembly
22285811 Whirlpool Washer Agitator Repair Kit
23285587 Whirlpool Thrust Washer
24WP3354845 Whirlpool Clip
25WP8543666 Whirlpool Washer
