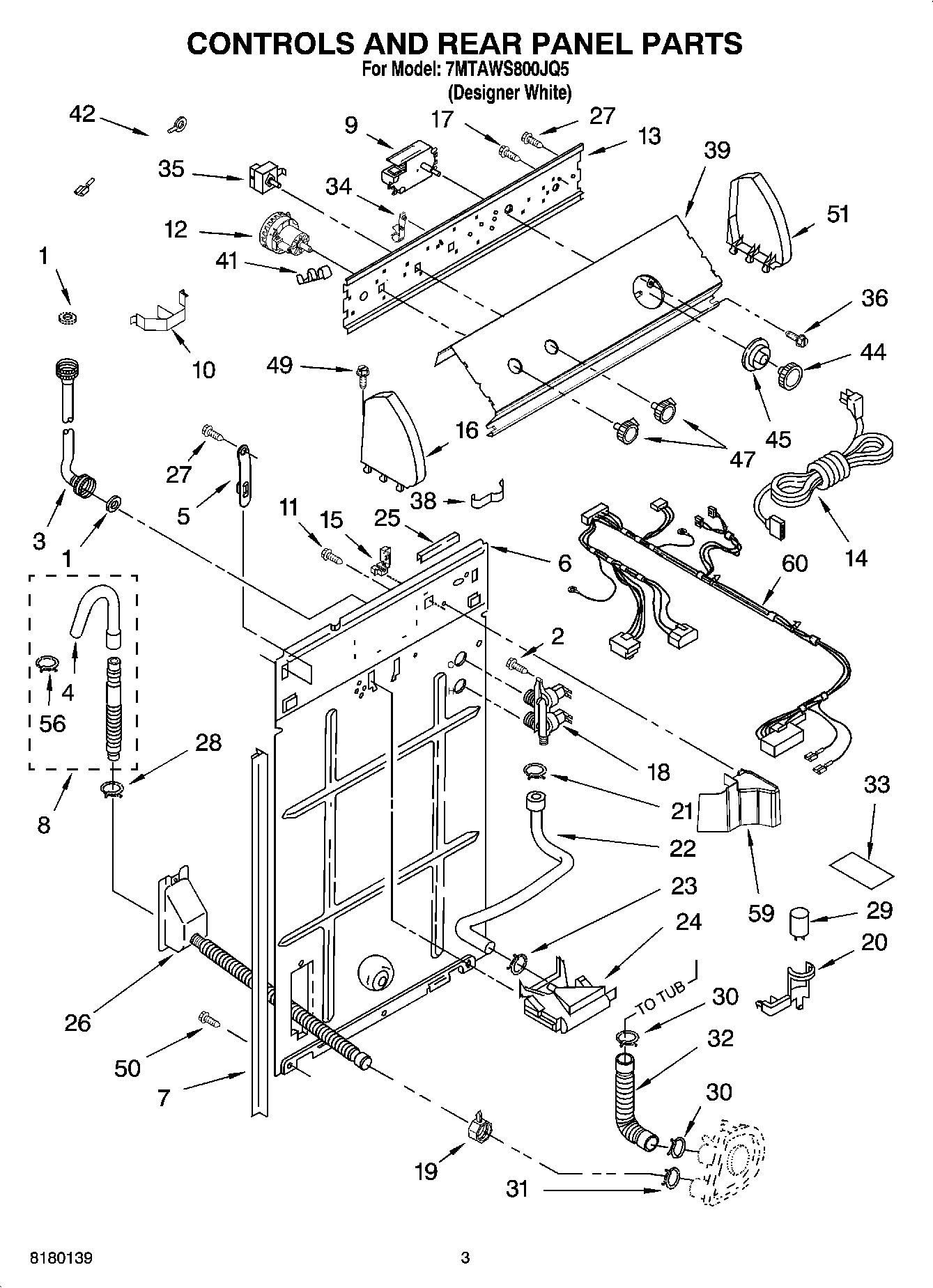

7MTAWS800JQ5 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	WP89503 Whirlpool Washer Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
9	WP3948852 Whirlpool Timer Assembly
10	Clip, Harness & Pressure Hose
11	WP3351614 Whirlpool Screw
12	W10335056 Whirlpool Water Level Pressure Switch
13	WP3948608 Whirlpool Bracket
14	W10130795 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
17	Screw (6)
18	285805 Whirlpool Washer Water Inlet Valve
19	Clamp, Hose
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Edge Protector
26	WPW10358149 Whirlpool Hose
27	WP90767 Whirlpool Screw
28	WP356138 Whirlpool Hose Clamp
29	CAPACITOR
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Shield, Capacitor
34	Retainer, Harness
35	Switch, Water Temperature
36	WP3400818 Whirlpool Screw
38	8528351 Whirlpool Clip
39	Panel, Console
41	W10113937 Whirlpool Clamp
42	Wire, Ground
44	W10807860 Whirlpool White Control Knob
45	WP3957841 Whirlpool Dial
47	WP3957796 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.
56	WP3357331 Whirlpool Clamp
59	Sh
60	WPL 3956741
