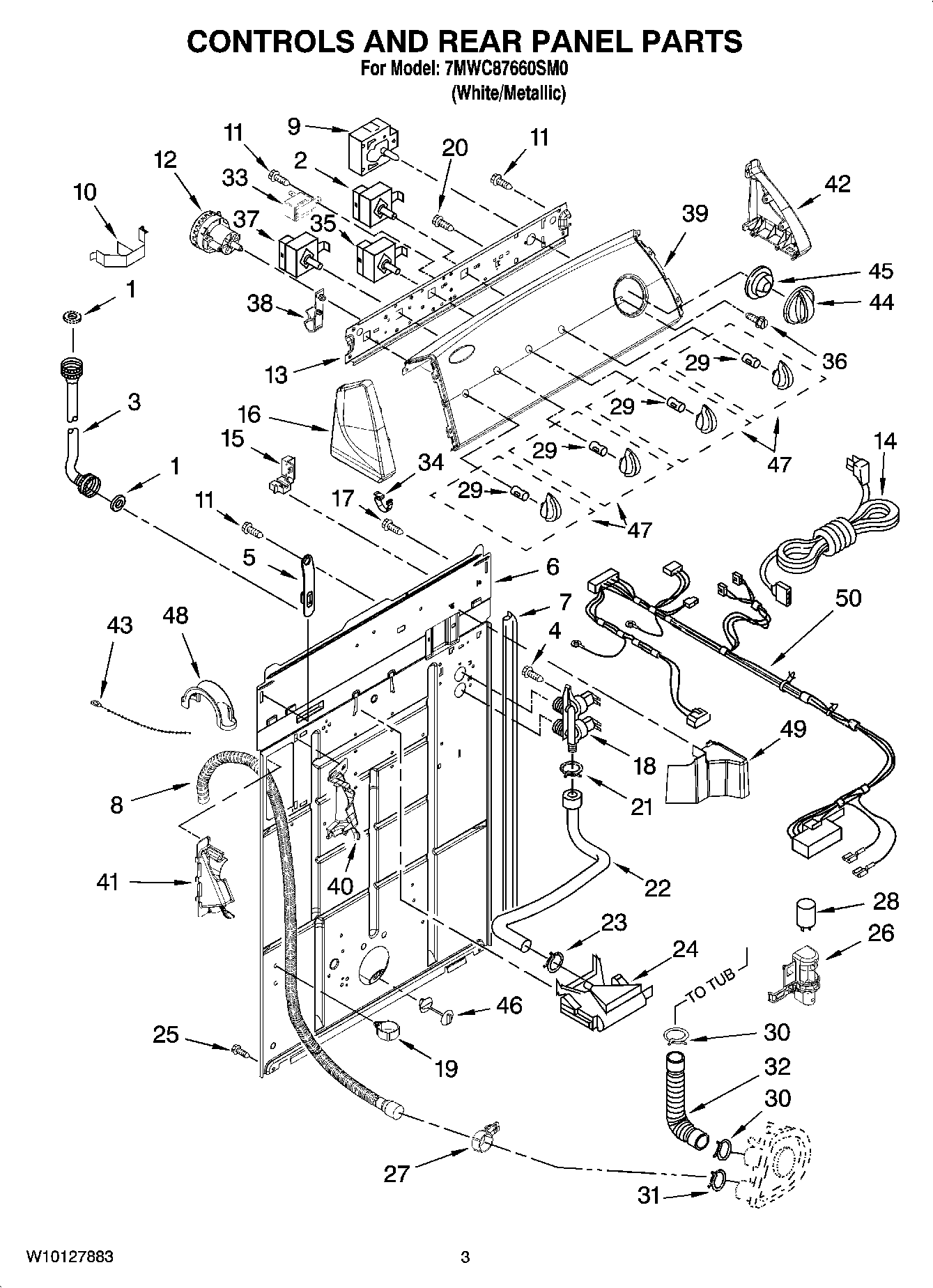

7MWC87660SM0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2W10851055 Whirlpool Cycle Switch
3FILL HOSE 5' W/WASHER
3WP89503 Whirlpool Washer Fill Hose
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP3951702 Whirlpool Timer
10Clip, Harness & Pressure Hose
11WP90767 Whirlpool Screw
12W10339326 Whirlpool Washer Water Level Switch
13Bracket, Control
14Cord, Power (Includes Item 15)
15Strain Relief, Power Cord
16WP8565957 Whirlpool Endcap Assembly
17WP3351614 Whirlpool Screw
18285805 Whirlpool Washer Water Inlet Valve
19Clamp, Hose
203400073 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP3390631 Whirlpool Screw
26Clip, Capacitor
278541668 Whirlpool Washer Clamp
28CAPACITOR
29WP8536939 Whirlpool Spring Clip
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33WP694419 Whirlpool Buzzer Adjuster
34WP8312709 Whirlpool Endcap Clip
35WPW10168257 Whirlpool Cycle Switch
36WP3400818 Whirlpool Screw
37Switch, Water Temperature
38Retainer, Harness
39Panel, Console
41WPW10096921 Whirlpool Hose
42WP8565954 Whirlpool Endcap
43WPW10339879 Whirlpool Wire Tie
44Knob, Timer
45WP8566018 Whirlpool Dial Assembly
46WP8519200 Whirlpool Support Assembly
47Knob, Control
48WP8577378 Whirlpool Retainer
49Sh
50WPL 3957374
