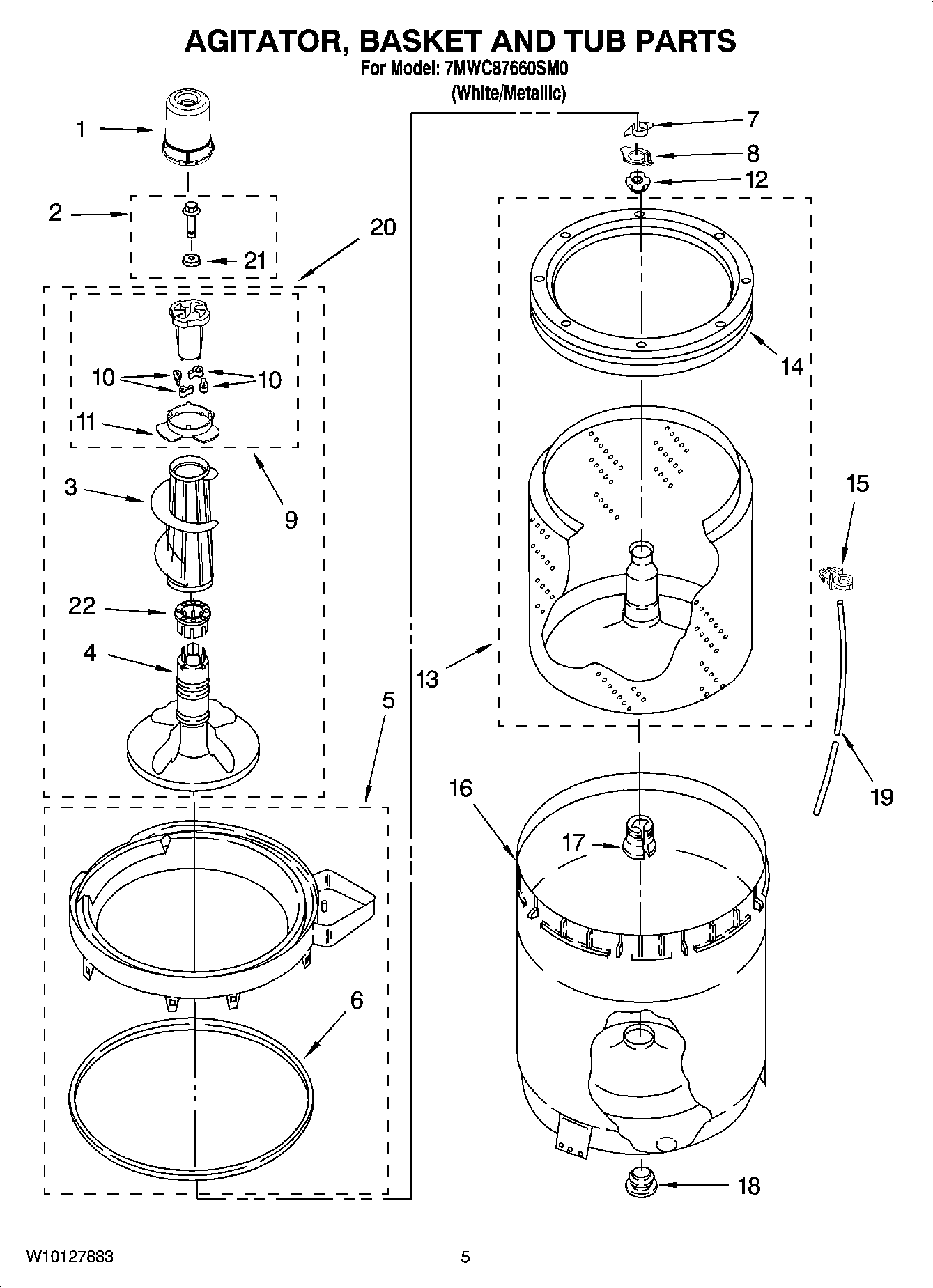

7MWC87660SM0 03 – AGITATOR, BASKET AND TUB PARTS

7MWC87660SM0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

7MWC87660SM0 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP8533252 Whirlpool Dispenser Assembly
2WP358237 Whirlpool Agitator Bolt
3WP3360824 Whirlpool Agitator Auger
4WP389386 Whirlpool Agitator Assembly
5W10880720 Whirlpool Tub Ring
6WP3976308 Whirlpool Tub Seal
7WP3354845 Whirlpool Clip
8WP8543666 Whirlpool Washer
9285748 Whirlpool Agitator Cam Kit
1080040 Whirlpool Washer Agitator Dog Kit
11WP3363661 Whirlpool Bearing Cam
12WP21366 Whirlpool Spanner Nut
13W10389329 Whirlpool Microwave Basket
14WP387240 Whirlpool Balance Ring
152219077 Whirlpool Refrigerator Clip
1663849 Whirlpool Outer Tub Primary Assembly
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
20285727 Whirlpool Agitator Assembly
21WP3949550 Whirlpool Gasket Assembly
22285587 Whirlpool Thrust Washer
