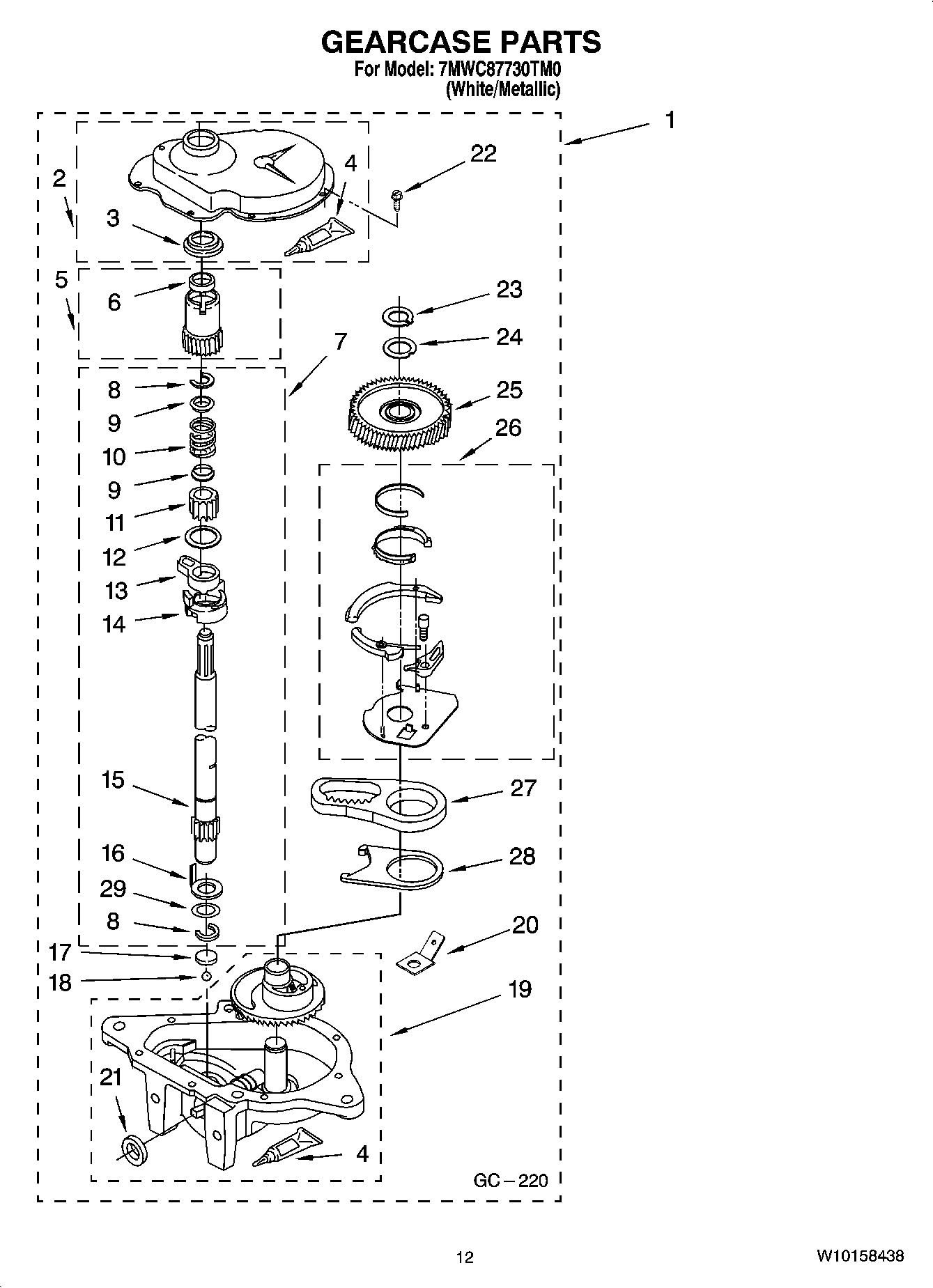

7MWC87730TM0 08 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

7MWC87730TM0 08 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

7MWC87730TM0 08 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
ACCES
WP285195 Whirlpool Sealer Assembly
Drain Hose Adapter Kit
280129A Whirlpool Break Switch
40922 Whirlpool Drain Hose Extension Kit
OIL
LUBRICANT
SEALER
350572 Whirlpool Oil Transmission 15 Oz
Drain Protector (Not Included)
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
2285202 Whirlpool Cover Assembly
3WP3349985 Whirlpool Shaft Seal
6WP356427 Whirlpool Shaft Seal
8Ring, Retaining (2)
962677 Whirlpool Retainer
10Spring, Agitator
1262619 Whirlpool Washer
15WP389387 Whirlpool Agitator Shaft
16Washer, Cam Thrust
17285205 Whirlpool Bearing
19Bottom and Pinion, Gearcase
20BLOCK TAB, TERMINAL
21285352 Whirlpool Washer Oil Seal Kit for Gearcase Input Shaft
22WP3351614 Whirlpool Screw
23Ring, Retaining
24Washer Kit, Thrust
26NEUTRL-PAK
273360629 Whirlpool Washer Gearcase Transmission
29WP388815 Whirlpool Washer
