7MWC87730TM1 01 – TOP AND CABINET PARTS

7MWC87730TM1 01 – TOP AND CABINET PARTS

Written by

in

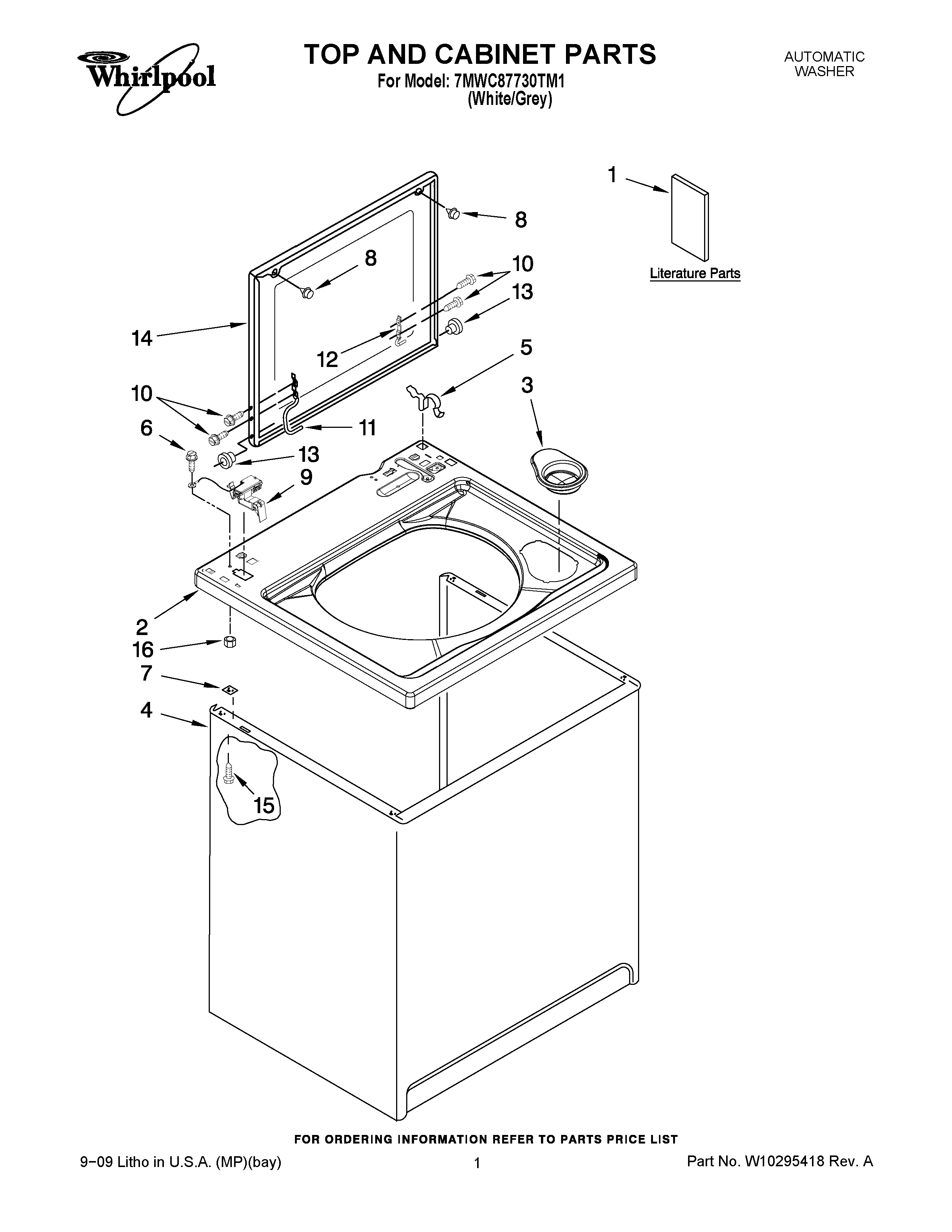

7MWC87730TM1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide (Mexico)
1Use & Care Guide
1Installation Instructions
1Wiring Diagram
1Feature Sheet
2Top
3Dispenser, Bleach
463424 Whirlpool Cabinet Assembly
5WP62780 Whirlpool Cabinet Clip
6WP3351614 Whirlpool Screw
7WP62750 Whirlpool Spacer
8WP9724509 Whirlpool Bumper
9WP8318084 Whirlpool Washer Lid Switch Assembly
10SCREW
11Hinge, Lid (L.H.)
12WP91770 Whirlpool Hinge
13Bearing, Lid Hinge (2)
14Lid
15WP3390631 Whirlpool Screw
16W10080180 Whirlpool Nut
