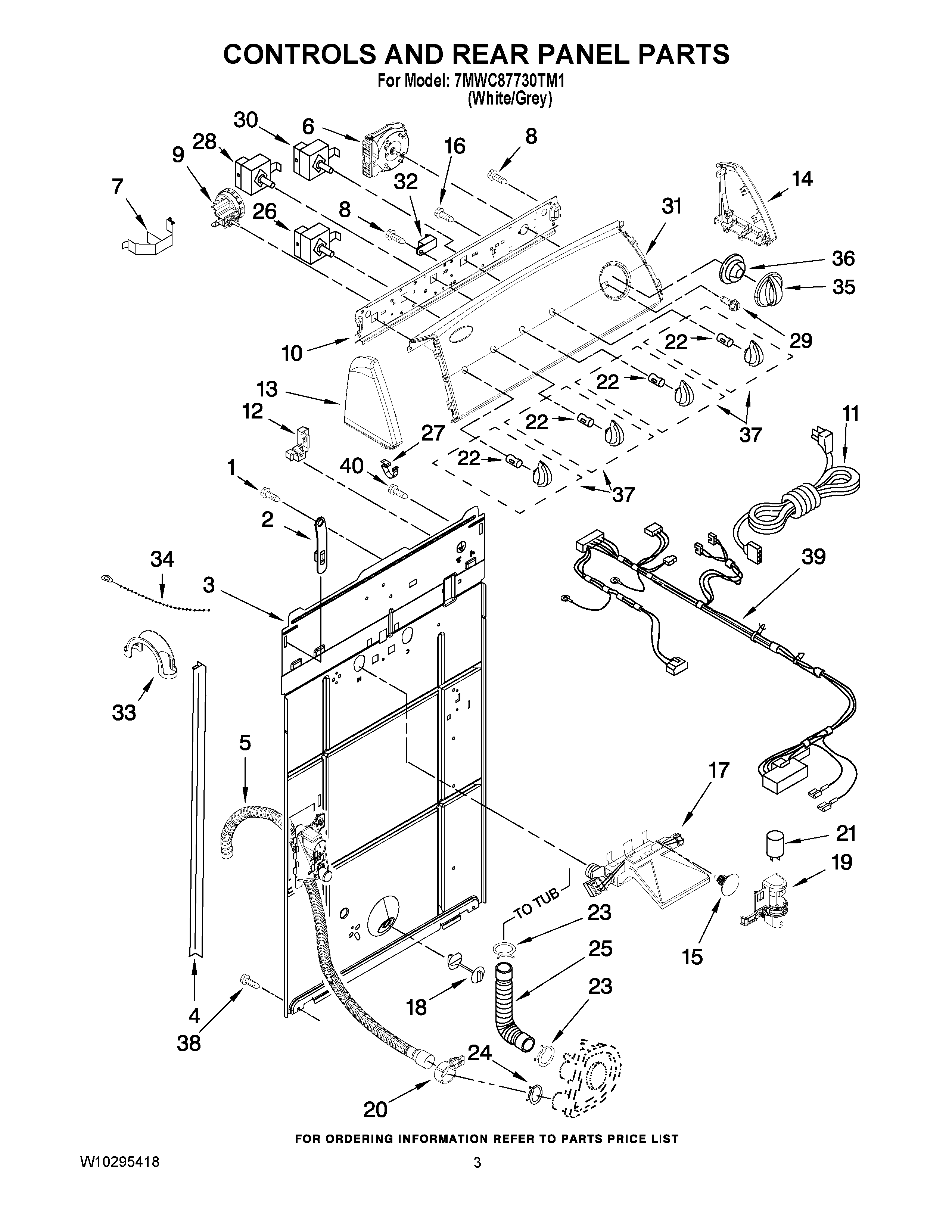

7MWC87730TM1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP9740848 Whirlpool Dishwasher Screw
2	WP8568314 Whirlpool Strap
3	WPW10194450 Whirlpool Rear Panel
4	WP62747 Whirlpool Pad
5	WPW10189267 Whirlpool Drain Hose
6	WP8577356 Whirlpool Washer Timer
7	Clip, Harness & Pressure Hose
8	WP90767 Whirlpool Screw
9	W10339250 Whirlpool Washer Water Level Switch
10	Bracket, Control
11	Cord, Power (Includes Item 15)
12	Strain Relief, Power Cord
13	WP8565957 Whirlpool Endcap Assembly
14	WP8565954 Whirlpool Endcap
15	Clip, Push-In Retainer
16	3400073 Whirlpool Screw
17	BREAK, VACUUM
18	WP8519200 Whirlpool Support Assembly
19	Clip, Capacitor
20	8541668 Whirlpool Washer Clamp
21	CAPACITOR
22	WP8536939 Whirlpool Spring Clip
23	WP616099 Whirlpool Clamp
24	WP285655 Whirlpool Hose Clamp
25	285871 Whirlpool Hose and Clamp
26	Switch, Water Temperature
27	WP8312709 Whirlpool Endcap Clip
28	WPW10168257 Whirlpool Cycle Switch
29	WP3400818 Whirlpool Screw
30	W10851055 Whirlpool Cycle Switch
31	PANEL, CONSOLE
32	WP694419 Whirlpool Buzzer Adjuster
33	WP8577378 Whirlpool Retainer
34	WPW10339879 Whirlpool Wire Tie
35	Knob, Timer
36	WP8566018 Whirlpool Dial Assembly
37	Knob, Control
38	WP3390631 Whirlpool Screw
39	Harness, Wiring (For Detail See Pages 9 & 10)
40	WP3351614 Whirlpool Screw
