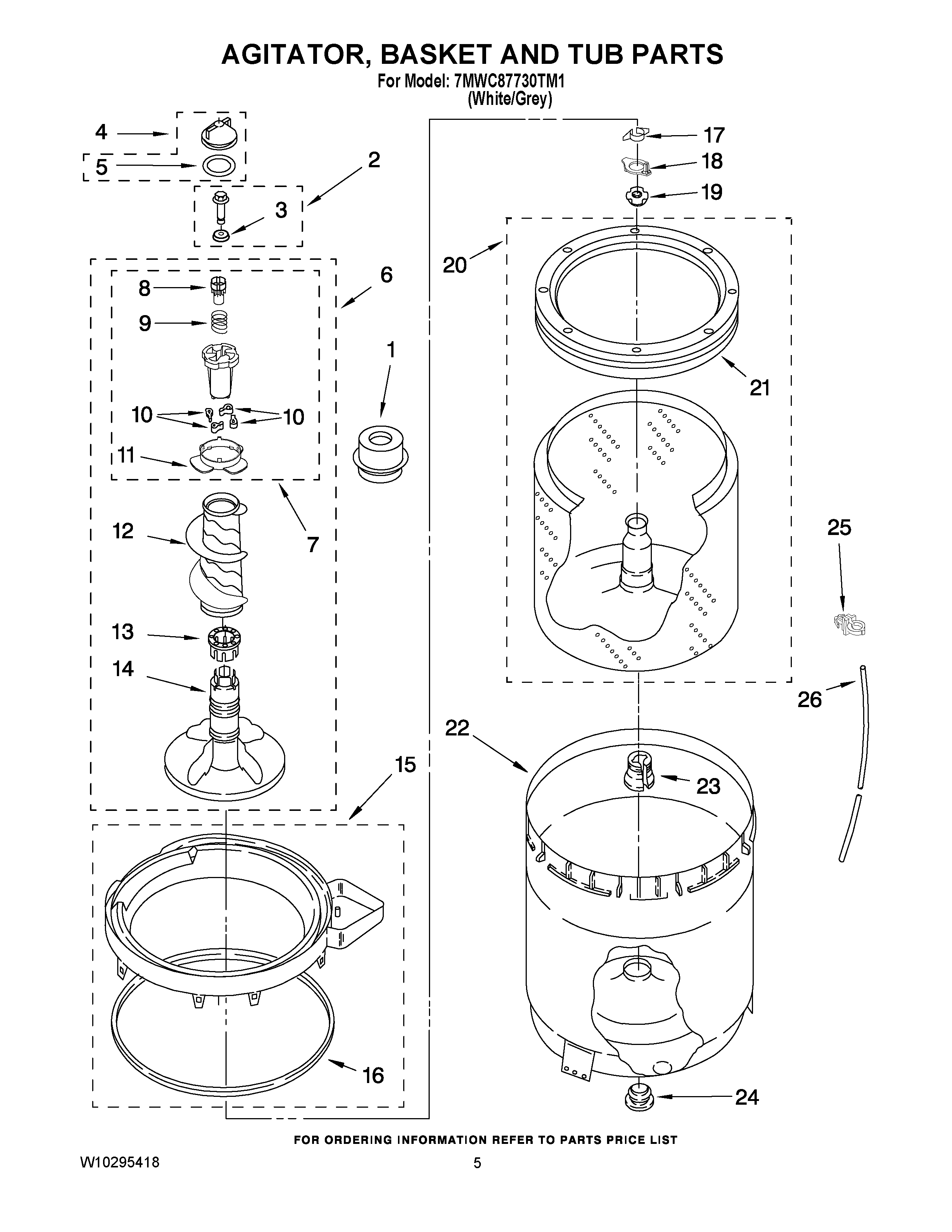

7MWC87730TM1 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP8580006 Whirlpool Dispenser
2WP358237 Whirlpool Agitator Bolt
3WP3949550 Whirlpool Gasket Assembly
4WPW10074580 Whirlpool Agitator Inner Cap and Seal
5WPW10072840 Whirlpool Seal Assembly
6WP8578210 Whirlpool Agitator
7WP8537434 Whirlpool Agitator Cam
8WP8533540 Whirlpool Retainer Clip
9WP8055140 Whirlpool Spring
1080040 Whirlpool Washer Agitator Dog Kit
11WP8055141 Whirlpool Bearing Assembly
12WP8054468 Whirlpool Agitator Auger
13WP8055228 Whirlpool Washer
14WP8578209 Whirlpool Agitator
15W10880720 Whirlpool Tub Ring
16WP3976308 Whirlpool Tub Seal
17WP3354845 Whirlpool Clip
18WP8543666 Whirlpool Washer
19WP21366 Whirlpool Spanner Nut
20W10389329 Whirlpool Microwave Basket
21WP387240 Whirlpool Balance Ring
2263849 Whirlpool Outer Tub Primary Assembly
23WP389140 Whirlpool Drive Block or Bell
24W10814296 Whirlpool Washer Center Post Seal Gasket
252219077 Whirlpool Refrigerator Clip
26WP353244 Whirlpool Hose
