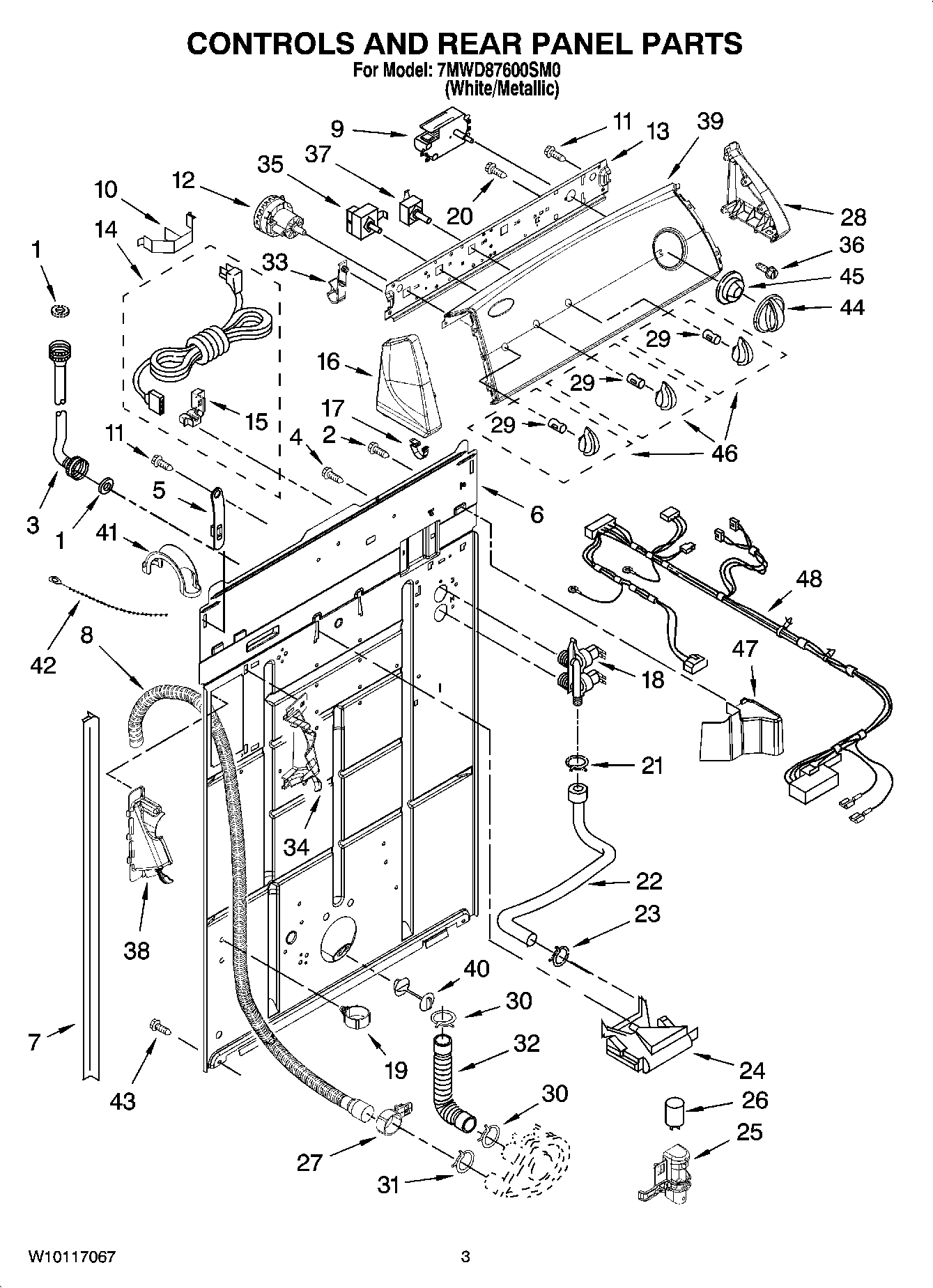

7MWD87600SM0 02 – CONTROLS AND REAR PANEL PARTS

7MWD87600SM0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

7MWD87600SM0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP3351614 Whirlpool Screw
3FILL HOSE 5' W/WASHER
3WP89503 Whirlpool Washer Fill Hose
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP3949208 Whirlpool Timer
10Clip, Harness & Pressure Hose
11WP90767 Whirlpool Screw
12W10337780 Whirlpool Pressure Switch
13Bracket, Control
14Cord, Power (Includes Item 15)
15Strain Relief, Power Cord
16WP8565957 Whirlpool Endcap Assembly
17WP8312709 Whirlpool Endcap Clip
18285805 Whirlpool Washer Water Inlet Valve
19Clamp, Hose
203400073 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Clip, Capacitor
26CAPACITOR
278541668 Whirlpool Washer Clamp
28WP8565954 Whirlpool Endcap
29WP8536939 Whirlpool Spring Clip
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Retainer, Harness
35WPW10168256 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
37W10851055 Whirlpool Cycle Switch
38WPW10096921 Whirlpool Hose
39Panel, Console
40WP8519200 Whirlpool Support Assembly
41WP8577378 Whirlpool Retainer
42WPW10339879 Whirlpool Wire Tie
43WP3390631 Whirlpool Screw
44Knob, Timer
45WP8566018 Whirlpool Dial Assembly
46Knob, Control
47Sh
48WPL 3956729
