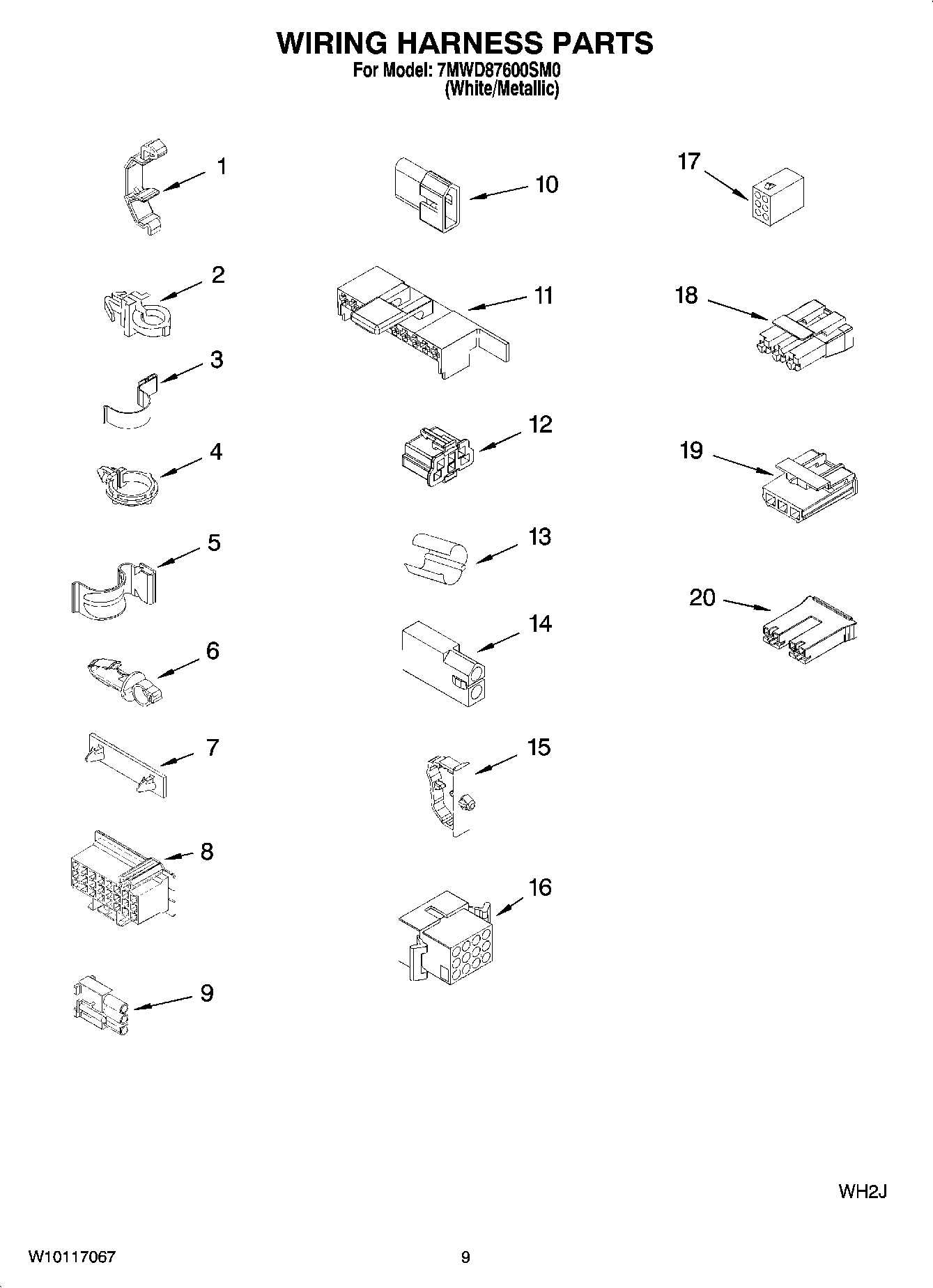

7MWD87600SM0 06 – WIRING HARNESS PARTSadmin2025-04-26T12:54:53+00:007MWD87600SM0 06 – WIRING HARNESS PARTS
Products
| Position | Product |
|---|
| 1 | Clip, Harness |
| 2 | Clip, Harness |
| 3 | 8528351 Whirlpool Clip |
| 4 | 8559320 Whirlpool Clip |
| 5 | WP90016 Whirlpool Clip |
| 6 | Clip, Harness |
| 7 | WP389379 Whirlpool Retainer |
| 8 | W10876590 Whirlpool Connector |
| 8 | Timer, Block Disconnect (White) |
| 9 | WP62889 Whirlpool Washer Lid Switch Terminal Receptacle |
| 10 | 353424 Whirlpool Connector |
| 11 | WP62505 Whirlpool Connector |
| 12 | Block, Disconnect |
| 13 | Protector, Harness |
| 14 | Receptacle, Latching (2-Way) (Uses Terminal 94614) |
| 15 | Clip, Harness |
| 16 | Block, Disconnect (12-Way) (Timer) (Use Term. 94613) |
| 17 | Receptacle, (6-Way) (Use Term. 94613) |
| 18 | WP2172937 Whirlpool Connector |
| 19 | WP3360056 Whirlpool Connector |
| 20 | 3354925 Whirlpool Connector |
| 20 | WPL 3354926 |
