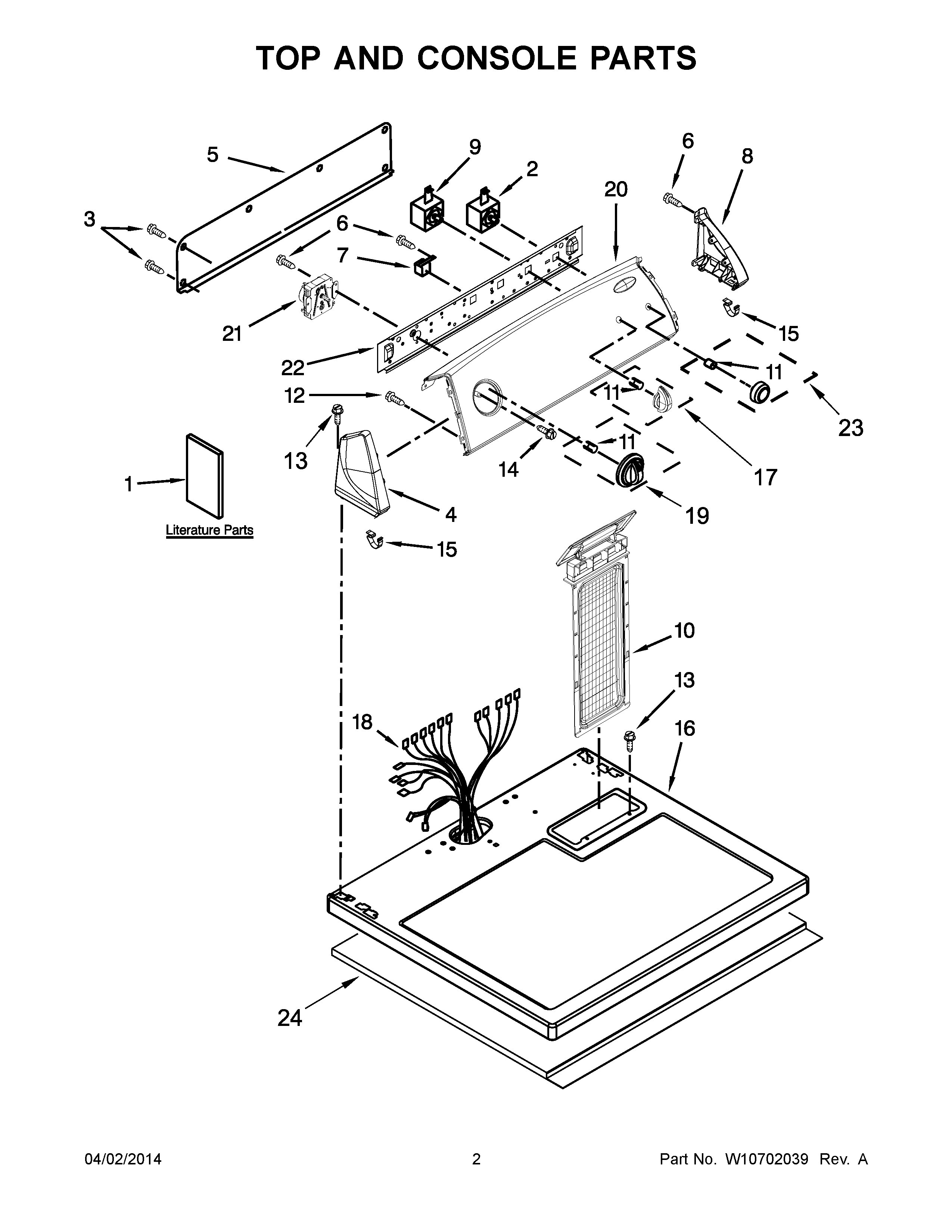

7MWED1600BM1 02 – TOP AND CONSOLE PARTS

7MWED1600BM1 02 – TOP AND CONSOLE PARTS

Written by

in

7MWED1600BM1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
1WIRING DIAGRAM
2WP3977456 Whirlpool Start Switch
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5W10103406 Whirlpool Rear Panel
6WP90767 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8WP8565954 Whirlpool Endcap
93405152 Whirlpool Switch Assembly
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP3400818 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP8312709 Whirlpool Endcap Clip
16WP8563663 Whirlpool Top Assembly
17Knob, Control (3)
18HARNESS, WIRING
19TIMER KNOB ASSEMBLY
20PANEL, CONTROL
21W10894766 Whirlpool Dryer Timer
228566052 Whirlpool Bracket
23W10034770 Whirlpool Knob Assembly
24W10123956 Whirlpool Sound Absorber
