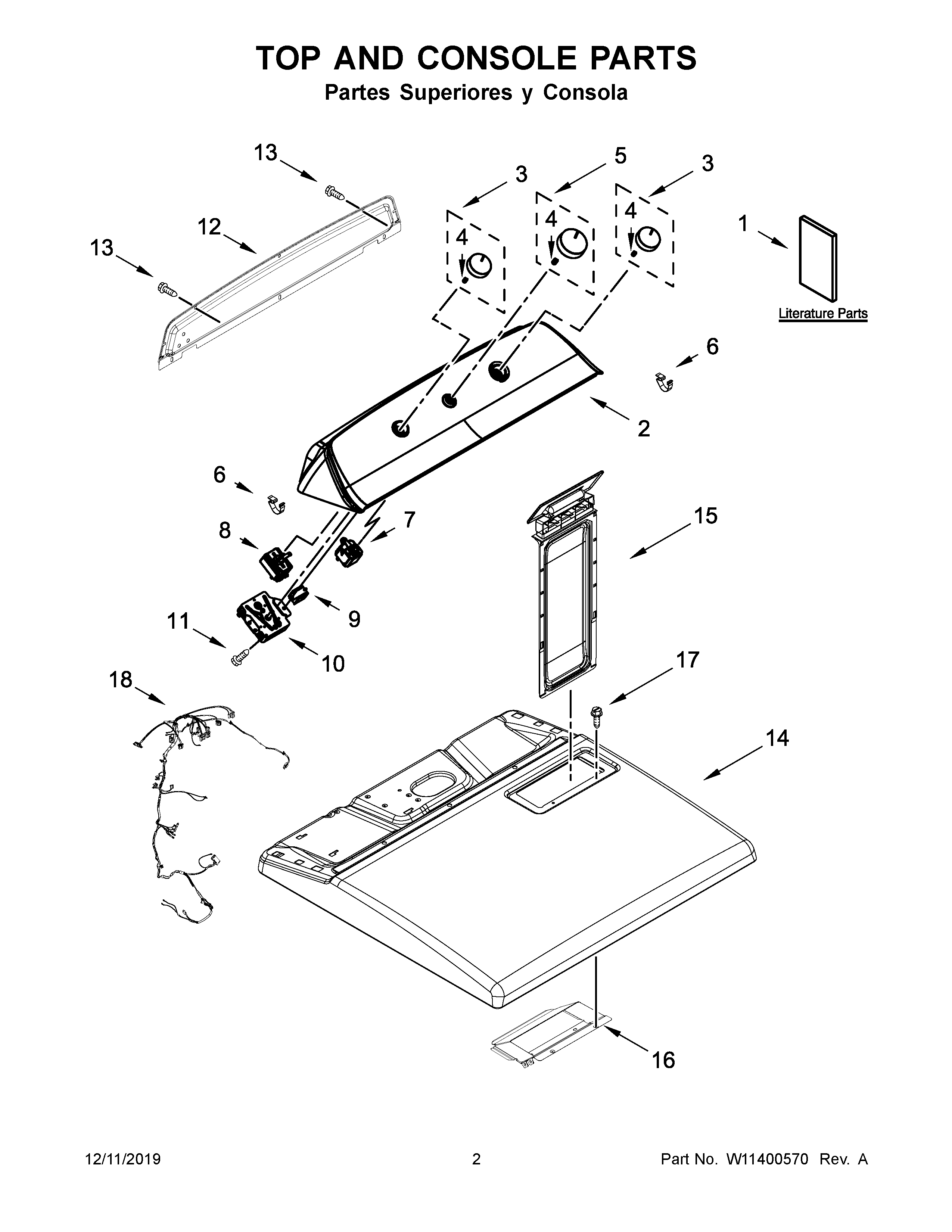

7MWED1730JQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTRUCTION INSTALLATION
1BWIRING DIAGRAM
1AUSE & CARE GUIDE
2FASCIA & CONSOLE ASSEMBLY
3W11611672 Whirlpool Knob
4WP688805 Whirlpool Spring Clip
5W11662342 Whirlpool Knob
6WP8312709 Whirlpool Endcap Clip
7WPW10446920 Whirlpool Switch Start
8W10648593 Whirlpool Switch
9WP694419 Whirlpool Buzzer Adjuster
10WPW10185982 Whirlpool Timer
11WP90767 Whirlpool Screw
12W10775189 Whirlpool Rear Panel
13WP693995 Whirlpool Screw
14W11222514 Whirlpool Top Assembly
15SCREEN
16W10662472 Whirlpool Cover Assembly
17W11693756 Whirlpool Screw Assembly
18HARNESS, WIRING
