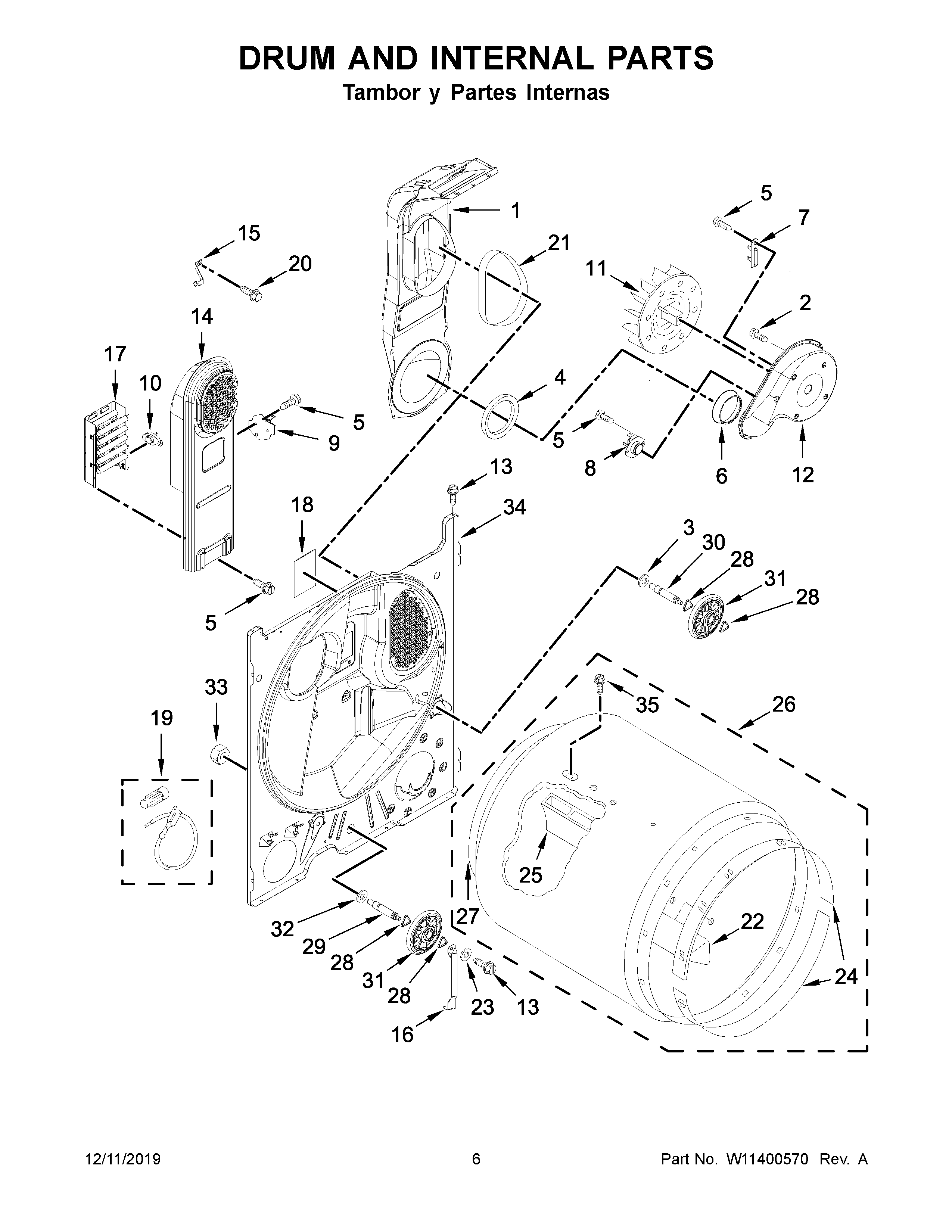

7MWED1730JQ0 04 – DRUM AND INTERNAL PARTS

7MWED1730JQ0 04 – DRUM AND INTERNAL PARTS

Written by

in

7MWED1730JQ0 04 – DRUM AND INTERNAL PARTS

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2WP488729 Whirlpool Refrigerator Door Screw
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3392519 Whirlpool Dryer Thermal Fuse
8WP3387134 Whirlpool Dryer Cycling Thermostat
9279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10WP3977767 Whirlpoo Dryer High Limit Thermostat
11WP694089 Whirlpool Dryer Blower Wheel
12WP8577230 Whirlpool Housing
13SCREW
14WP8541818 Whirlpool Box
15279771 Whirlpool Clip
16W11684613 Whirlpool Bracket
17279838 Whirlpool Dryer Heating Element 5400W
18W11409002 Whirlpool Pad
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20WP489463 Whirlpool Refrigerator Screw
21SEAL
22WP3403636 Whirlpool Drum Baffle
23WP90296 Whirlpool Clip
24279441 Whirlpool Front Bearing Ring
25BAFFLE-DRM
26W10899578 Whirlpool Dryer Drum Assembly
27W10612022 Whirlpool Felt Seal
28WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
29SHAFT SUPPORT ROLLER DRYER
30SHAFT SUPPORT ROLLER DRYER
31WPW10314173 Whirlpool Dryer Drum Support Wheel
32WP348197 Whirlpool Washer Assembly
33W11229607 Whirlpool Nut
34W11178668 Whirlpool Bulkhead
35W10853898 Whirlpool Screw
