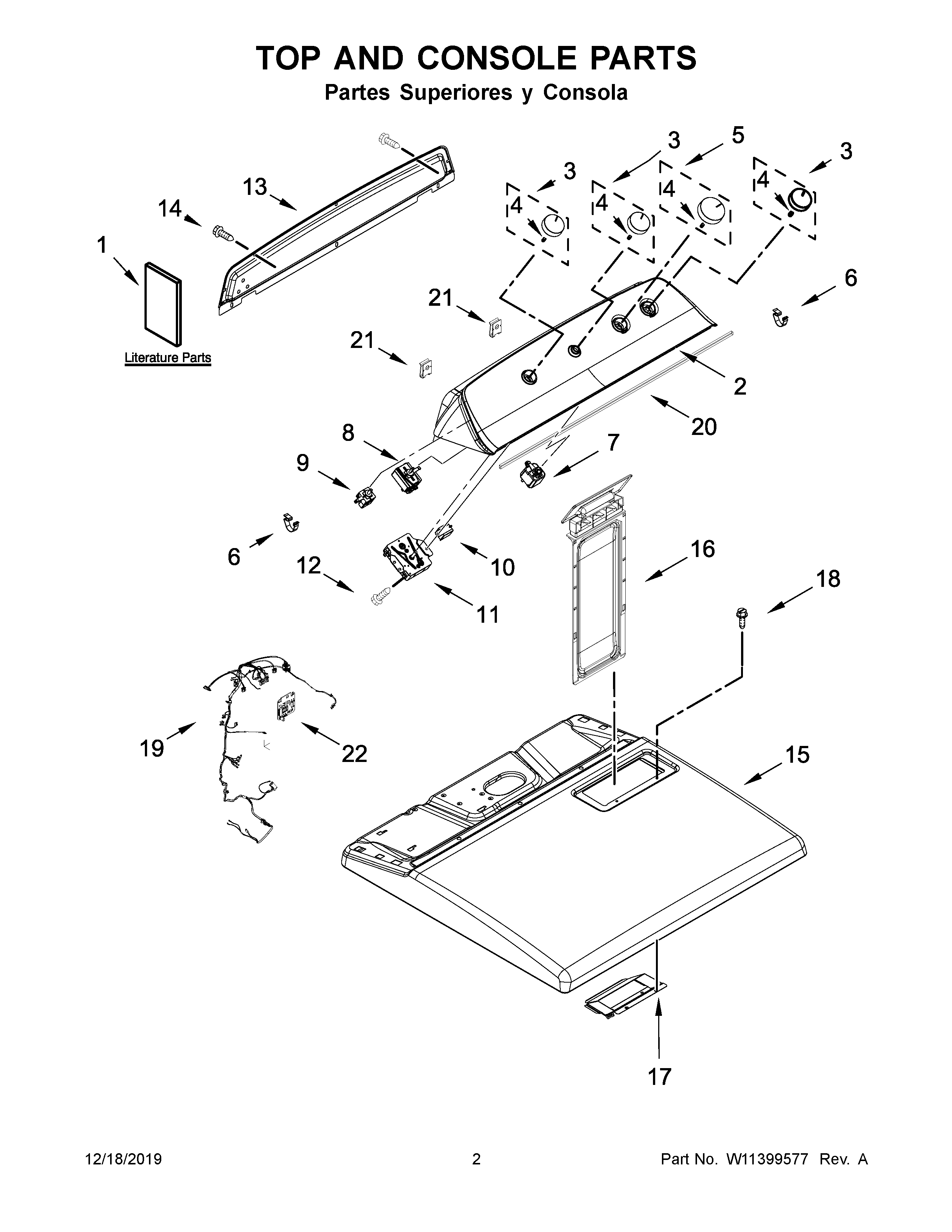

7MWED2040JM0 02 – TOP AND CONSOLE PARTS

7MWED2040JM0 02 – TOP AND CONSOLE PARTS

Written by

in

7MWED2040JM0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1INSTRUCTION INSTALLATION
1AUSE & CARE GUIDE
2W11401706 Whirlpool Console
3W11611672 Whirlpool Knob
4WP688805 Whirlpool Spring Clip
5W11662342 Whirlpool Knob
6WP8312709 Whirlpool Endcap Clip
7WPW10446920 Whirlpool Switch Start
8W10648614 Whirlpool Switch Assembly
9W11501315 Whirlpool Temperature Switch
10WP694419 Whirlpool Buzzer Adjuster
11TIMER
12WP9740848 Whirlpool Dishwasher Screw
13W10775189 Whirlpool Rear Panel
14WP693995 Whirlpool Screw
15W11222514 Whirlpool Top Assembly
16SCREEN
17W10662472 Whirlpool Cover Assembly
18W11693756 Whirlpool Screw Assembly
19HARNESS, WIRING
20SEAL CONSOLE
21W11213336 Whirlpool Nut
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
