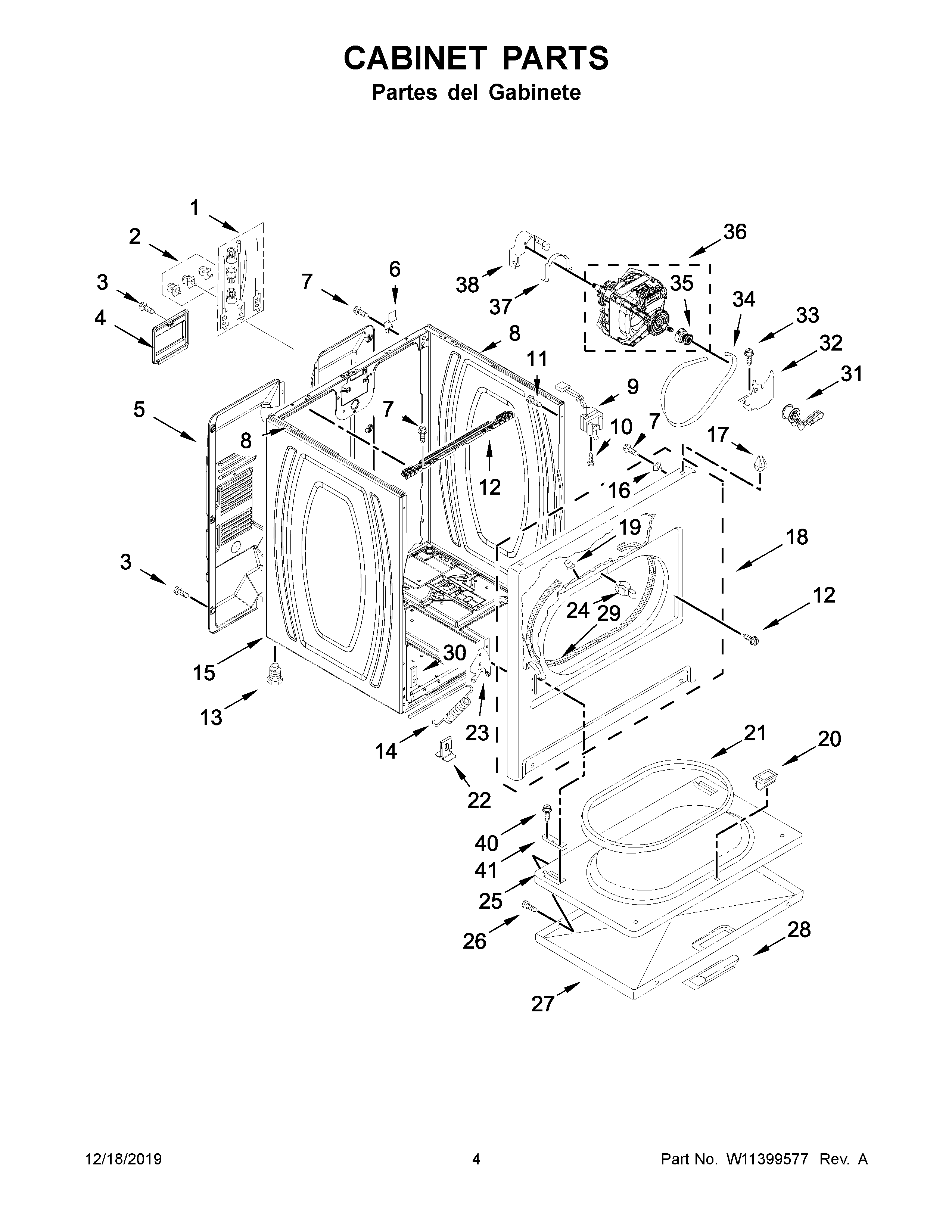

7MWED2040JM0 03 – CABINET PARTS

Products

Position	Product
1	279318 Whirlpool Terminal
2	279393 Whirlpool Terminal Block Screw and Nut Kit
3	WP693995 Whirlpool Screw
4	COVER, TERMINAL BLOCK
5	PANEL, REAR
6	W11715722 Whirlpool Hinge
7	SCREW
8	WPW10157932 Whirlpool Seal Foam
9	WP3406107 Whirlpool Dryer Door Switch
10	WP3395530 Whirlpool Screw
11	WP3390631 Whirlpool Screw
12	W11596046 Whirlpool Seal
13	W10813918 Whirlpool Leveling Feet
14	WPW10041960 Whirlpool Door Spring
15	8533643 Whirlpool Dryer White Cabinet
16	WP98234 Whirlpool Nut
17	WP8066092 Whirlpool Panel Clip
18	279443 Whirlpool Primary Panel
19	279220 Whirlpool Clip
20	WP3389441 Whirlpool Door Catch
21	W10906683 Whirlpool Door Seal
22	W10575896 Whirlpool Clip
23A	WP8066057 Whirlpool Door Hinge
23	WP8066056 Whirlpool Door Hinge
24	279570 Whirlpool Dryer Door Latch Kit
25	WP695737 Whirlpool Door
26	WP488627 Whirlpool Refrigerator Screw
27	W10861223 Whirlpool Door Appliance
28	W10861225 Whirlpool Dryer White Door Handle
29	W11035878 Whirlpool Bearing and Seal
30	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
31	WP691366 Whirlpool Dryer Idler Pulley Assembly
32	WP348780 Whirlpool Base
33	3400500 Whirlpool Screw
34	341241 Whirlpool Dryer Drum Belt
35	WP8066184 Whirlpool Dryer Motor Pulley
36	279827 Whirlpool Dryer Drive Motor
37	CLAMP
38	WP3404162 Whirlpool Clamp
