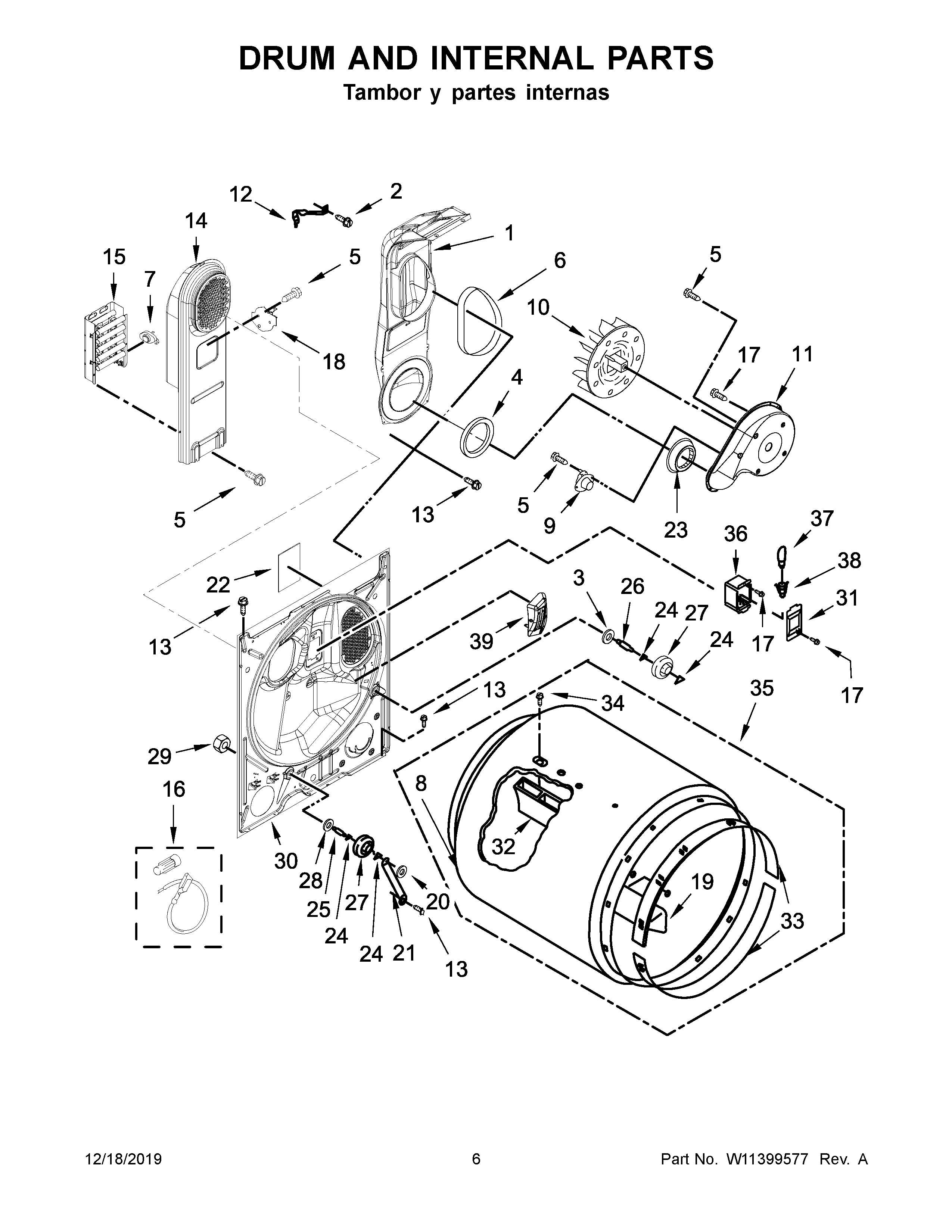

7MWED2040JM0 04 – DRUM AND INTERNAL PARTS

7MWED2040JM0 04 – DRUM AND INTERNAL PARTS

Written by

in

7MWED2040JM0 04 – DRUM AND INTERNAL PARTS

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2WP489463 Whirlpool Refrigerator Screw
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6SEAL
7WP3977767 Whirlpoo Dryer High Limit Thermostat
8W10612022 Whirlpool Felt Seal
9WP3387134 Whirlpool Dryer Cycling Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13WP3390631 Whirlpool Screw
14WP8541818 Whirlpool Box
15279838 Whirlpool Dryer Heating Element 5400W
16279457 Whirlpool Dryer Heating Element Wide Spade Connection
17WP488729 Whirlpool Refrigerator Door Screw
18279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
19WP3403636 Whirlpool Drum Baffle
20WP90296 Whirlpool Clip
21W11684613 Whirlpool Bracket
22W11409002 Whirlpool Pad
23W11233063 Whirlpool Shield Assembly
24WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
25SHAFT SUPPORT ROLLER DRYER
26SHAFT SUPPORT ROLLER DRYER
27WPW10314173 Whirlpool Dryer Drum Support Wheel
28WP348197 Whirlpool Washer Assembly
29W11229607 Whirlpool Nut
30W10828905 Whirlpool Bulkhead OS1
31W11226088 Whirlpool Lens Assembly
32BAFFLE-DRM
33279441 Whirlpool Front Bearing Ring
34W10853898 Whirlpool Screw
35W10899578 Whirlpool Dryer Drum Assembly
363977373 Whirlpool Bracket
37WP22002263 Whirlpool Dryer 10W Light Bulb
38W11222979 Whirlpool Socket
39W10853313 Whirlpool Sensor
