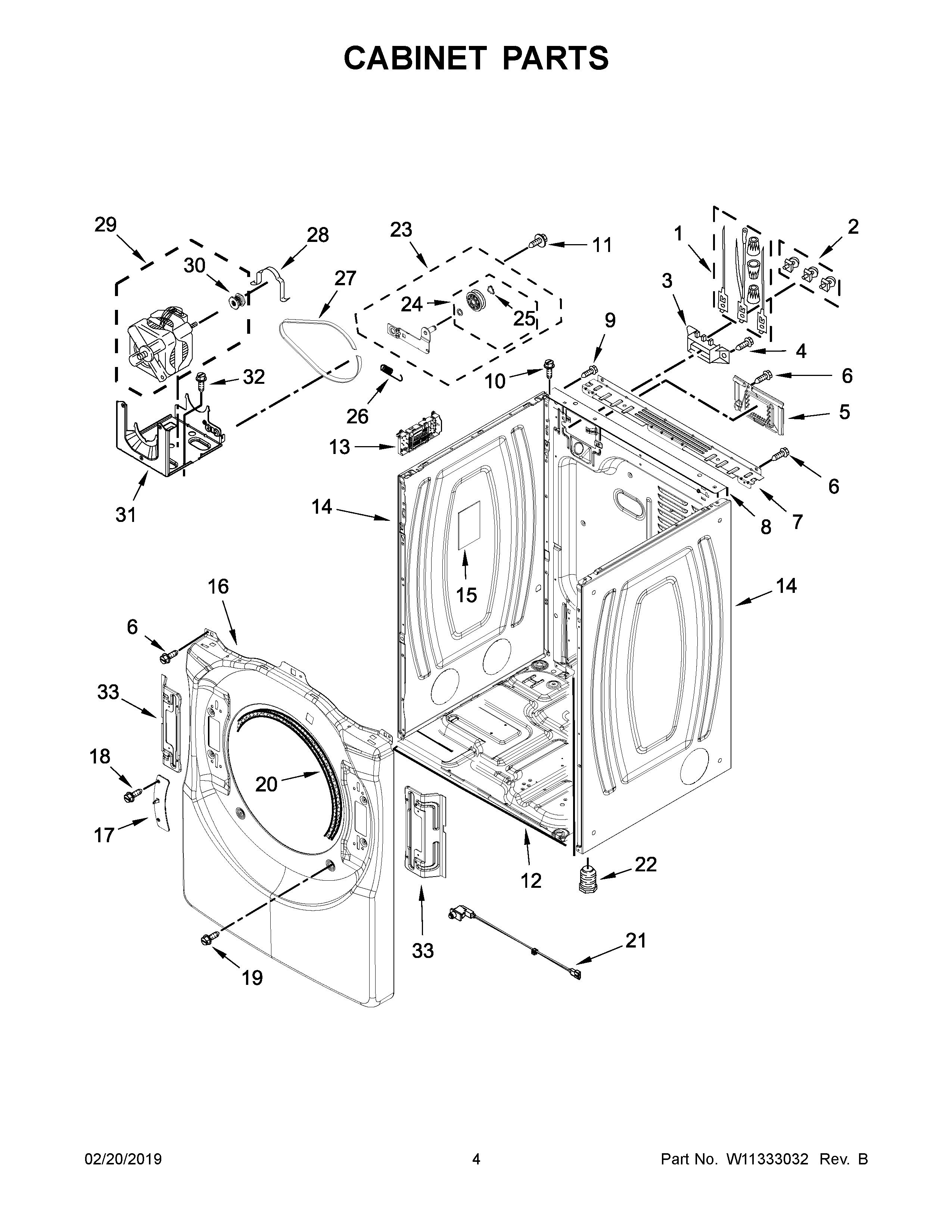

7MWED6613HW0 03 – CABINET PARTS

Products

Position	Product
NI	W10323246 Whirlpool Dryer Vent Kit 4-Way
NI	49621 Whirlpool Leveling Feet
1	279318 Whirlpool Terminal
2	279393 Whirlpool Terminal Block Screw and Nut Kit
3	WP3397659 Whirlpool Terminal Block
4	WP489463 Whirlpool Refrigerator Screw
5	WPW10316167 Whirlpool Dishwasher Terminal Cover
6	WP488729 Whirlpool Refrigerator Door Screw
7	WPW10208382 Whirlpool Dryer Bracket
8	W10487430 Whirlpool Rear Panel
9	W10850756 Whirlpool Screw
11	WP3389420 Whirlpool Screw
12	W11215531 Whirlpool Base
13	W11350875 Whirlpool Electronic Control Board + Core
14	W11233548 Whirlpool Panel
15	W11409002 Whirlpool Pad
16	W11310029 Whirlpool Panel
17	W11310031 Whirlpool Strike Assembly
18	SCREW
19	WP308685 Whirlpool Microwave Screw
20	WP3387242 Whirlpool Seal
21	W11427601 Whirlpool Door Switch
23	W10837240 Whirlpool Dryer Idler Pulley
24	279640 Whirlpool Dryer Idler Pulley Kit
25	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
26	WPW10446781 Whirlpool Spring
27	661570V Whirlpool Dryer Drum Belt
28	CLAMP
29	MOTOR-DRVE
30	WP8066184 Whirlpool Dryer Motor Pulley
31	W11481730 Whirlpool Bracket
32	SCREW
33	W11310030 Whirlpool Bracket Assembly
