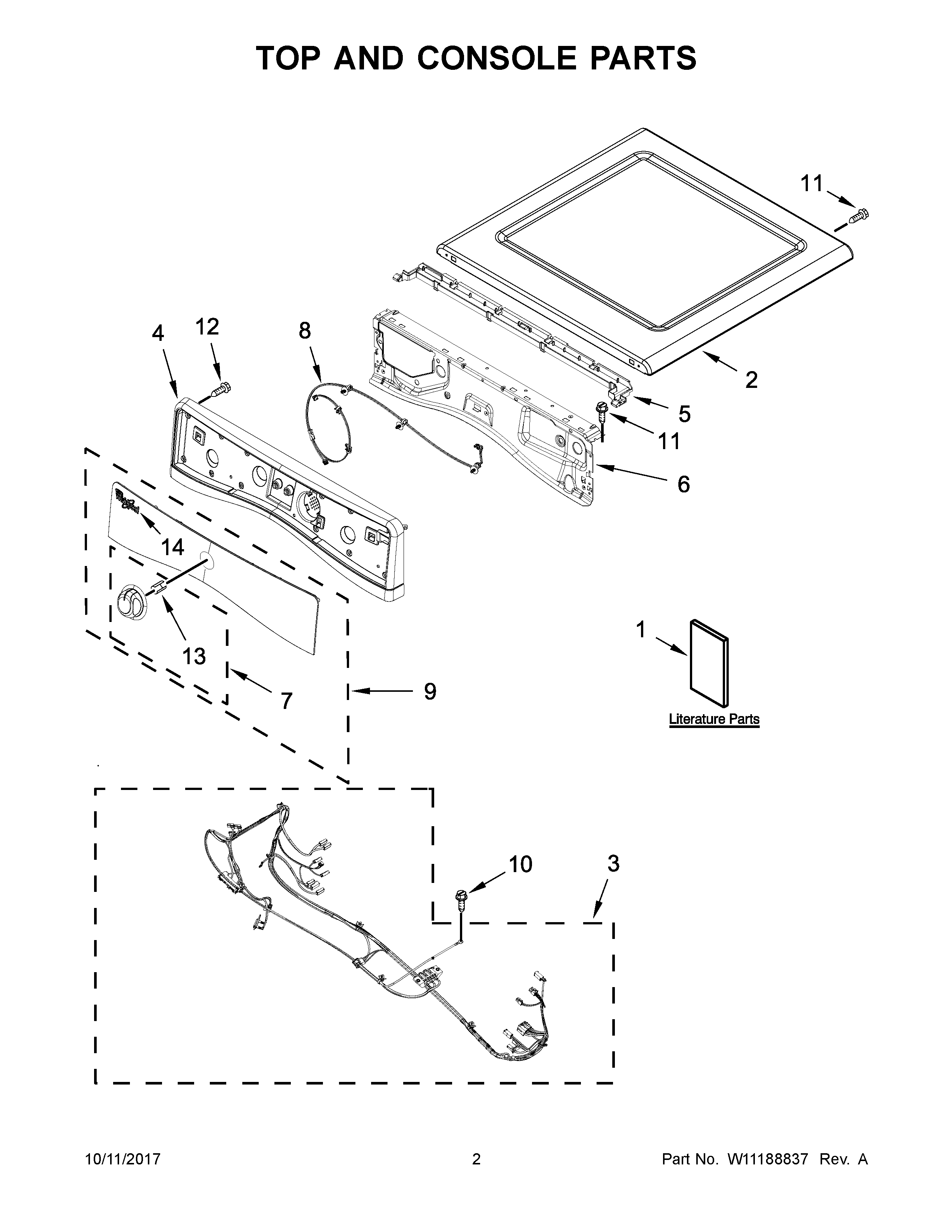

7MWED90HEFW1 02 – TOP AND CONSOLE PARTS

7MWED90HEFW1 02 – TOP AND CONSOLE PARTS

Written by

in

7MWED90HEFW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
1CWIRING DIAGRAM
1BTECH SHEET
2WPW10208383 Whirlpool Top Panel
3W10637533 Whirlpool Wire Harness
4WPW10391519 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10875909 Whirlpool Timer Knob
8W10837344 Whirlpool Wire Harness
9W10919212 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
13WP8536939 Whirlpool Spring Clip
14W11178521 Whirlpool Dishwasher Nameplate
