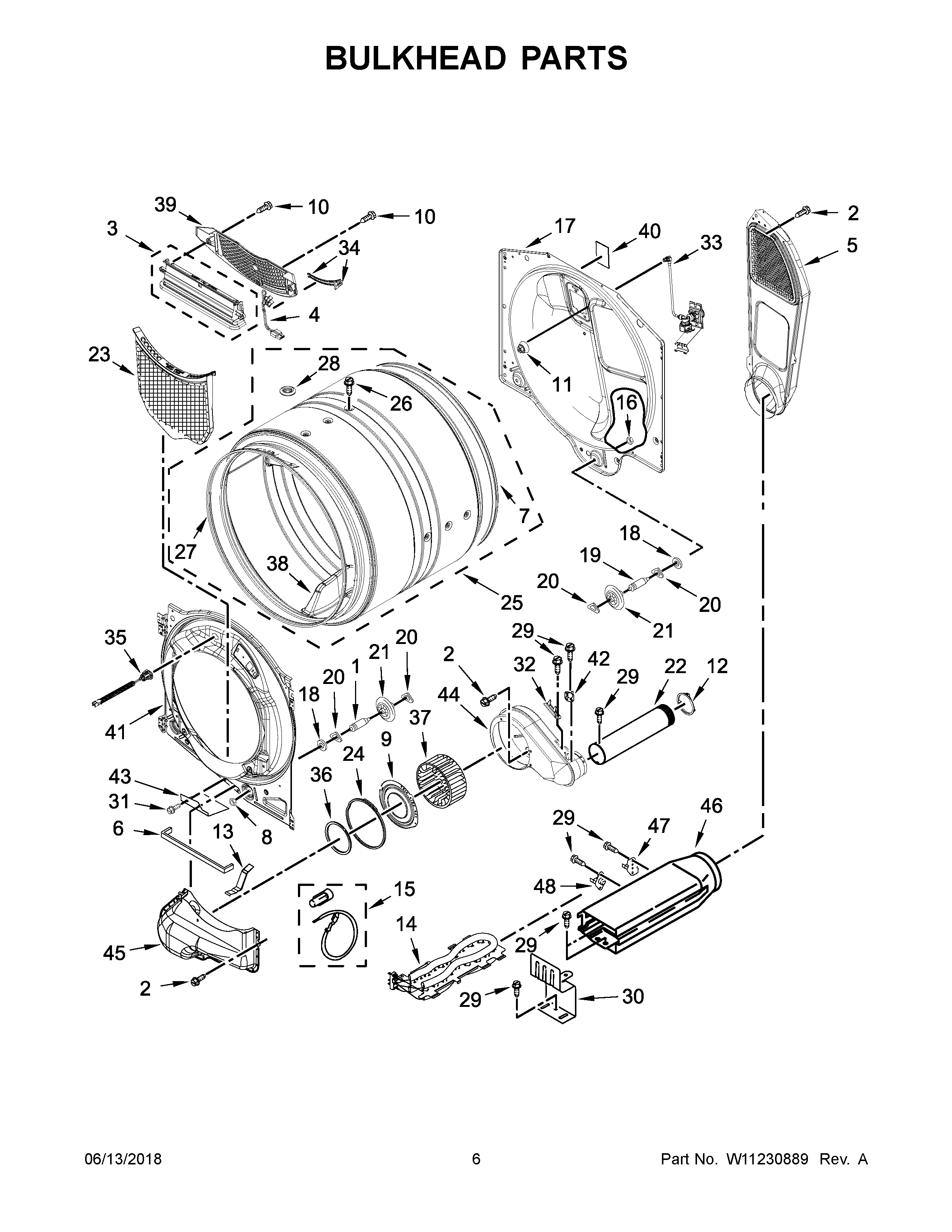

7MWED90HEFW2 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	HOUSNG-DRYER LINT
4	WPW10298258 Whirlpool Wire Harness
5	W11677720 Whirlpool Air Duct
6	W11676493 Whirlpool Seal Assembly
7	280114 Whirlpool Dryer Drum Seal
8	WPW10080210 Whirlpool Nut
9	W10211901 Whirlpool Cover Assembly
10	W11590579 Whirlpool Screw
11	W11230609 Whirlpool Nozzle
12	WPW10344699 Whirlpool Collar
13	W10414388 Whirlpool Clip
14	WP3387747 Whirlpool Dryer Heating Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11299321 Whirlpool Bulkhead
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WPW10342188 Whirlpool Exhaust Pipe
23	SCREEN – LINT. ALPHA W/FELT
24	WP697770 Whirlpool Blower Cover Plate Seal
25	W10381481 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	W11193479 Whirlpool Seal
28	W10665050 Whirlpool Plug
29	WP693995 Whirlpool Screw
30	8066099 Whirlpool Bracket
31	WP489463 Whirlpool Refrigerator Screw
32	FUSE-THRML
33	W11216837 Whirlpool Valve
34	WP3387223 Whirlpool Electrode Assembly
35	ASSEMBLY, DRUM LIGHT
36	W10211899 Whirlpool Seal
37	WP697772 Whirlpool Dryer Blower Wheel
38	W10416098 Whirlpool Baffle Assembly
39	W11125442 Whirlpool Outer Grille
40	W11409002 Whirlpool Pad
41	W10673491 Whirlpool Bulkhead Assembly
42	WP8557403 Whirlpool Thermostat
43	W11257251 Whirlpool Shield
44	WPW10211911 Whirlpool Housing
45	WPW10211896 Whirlpool Duct Lint
46	W10802681 Whirlpool Box Assembly
47	280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
48	WP8577274 Whirlpool Dryer Thermistor
