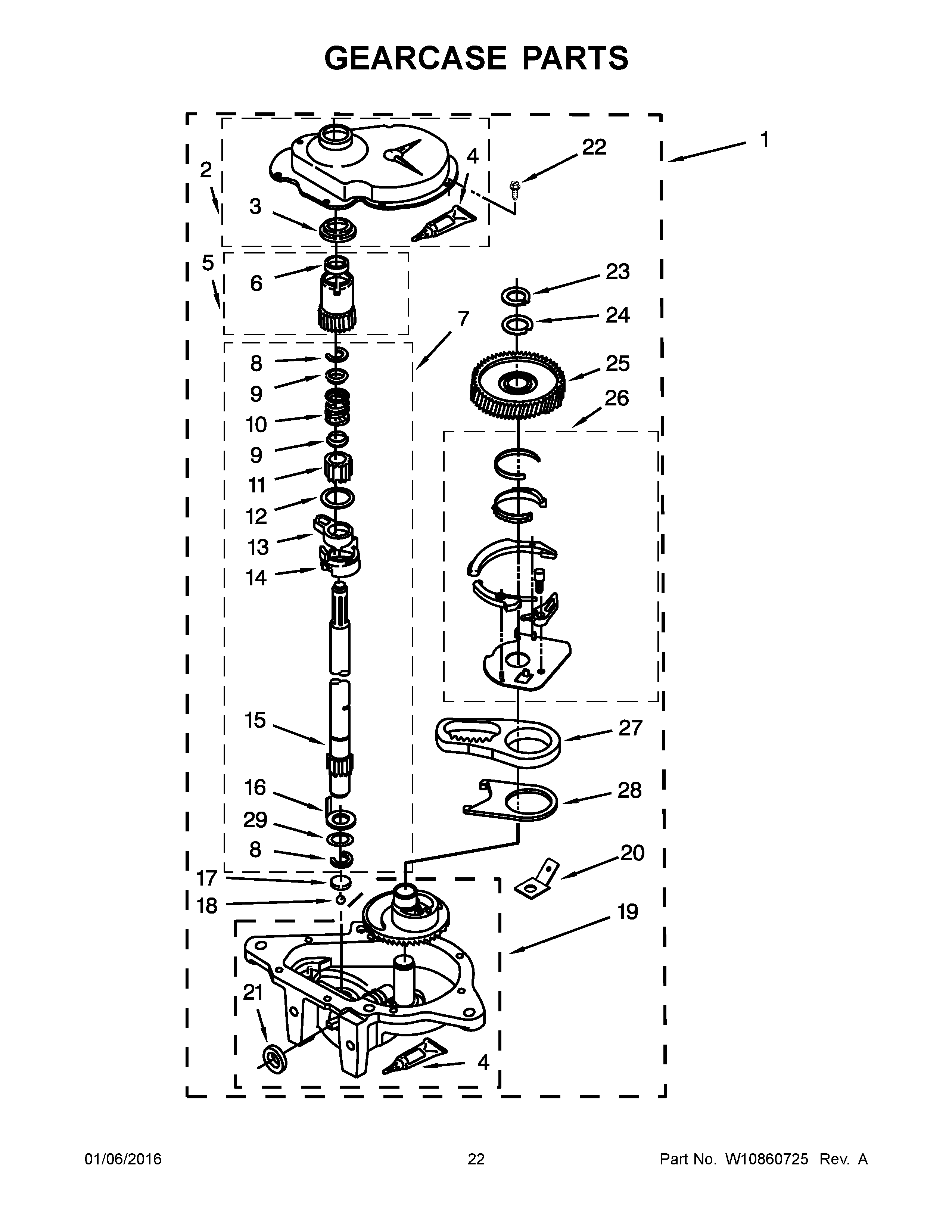

7MWET3300EQ0 12 – GEARCASE PARTS

7MWET3300EQ0 12 – GEARCASE PARTS

Written by

in

7MWET3300EQ0 12 – GEARCASE PARTS

Products

PositionProduct
2285202 Whirlpool Cover Assembly
3WP3349985 Whirlpool Shaft Seal
4WP285195 Whirlpool Sealer Assembly
6WP356427 Whirlpool Shaft Seal
7WP389387 Whirlpool Agitator Shaft
8Ring, Retaining (2)
962677 Whirlpool Retainer
10Spring, Agitator
1262619 Whirlpool Washer
15Shaft, Agitator
16Washer, Cam Thrust
17285205 Whirlpool Bearing
19BOTTOM AND PINION, GEARCASE
20BLOCK TAB, TERMINAL
21285352 Whirlpool Washer Oil Seal Kit for Gearcase Input Shaft
22WP3351614 Whirlpool Screw
23285353 Whirlpool Ring
24WASHER, THRUST
25W10838122 Whirlpool Spin Gear
26NEUTRAL ASSEMBLY
283360629 Whirlpool Washer Gearcase Transmission
29WP388815 Whirlpool Washer
