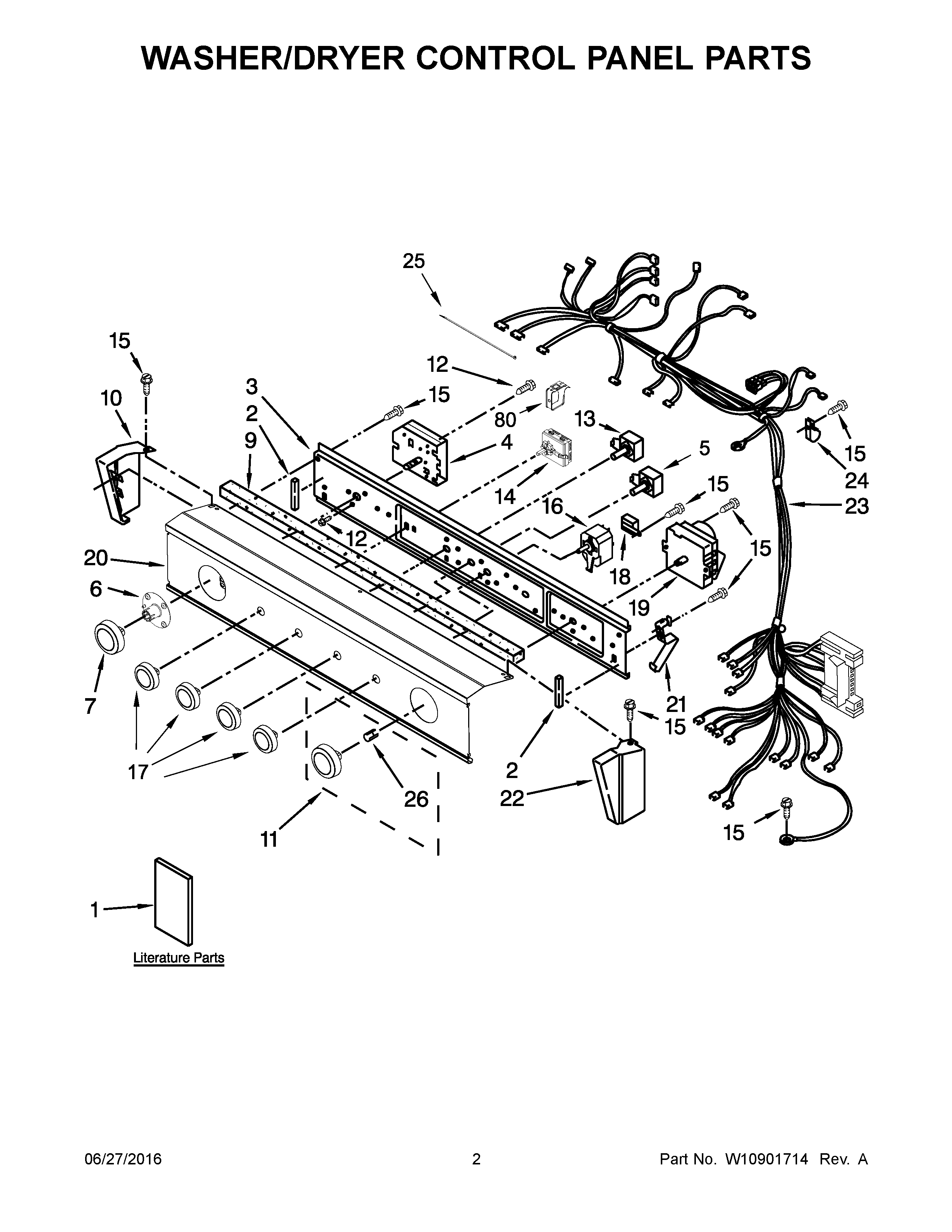

7MWET3300EQ1 02 – WASHER/DRYER CONTROL PANEL PARTS

7MWET3300EQ1 02 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

7MWET3300EQ1 02 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1BWIRING DIAGRAM
1AGUIDE, USE AND CARE
23390688 Whirlpool Bumper Assembly
3W10732070 Whirlpool Bracket
4WPW10113804 Whirlpool Timer Assembly
5W10851055 Whirlpool Cycle Switch
6W11174845 Whirlpool Washer/Dryer Knob Dial
7W11116863 Whirlpool Knob
8AKnob, Control
8W10210799 Whirlpool Clip
98521965 Whirlpool Gasket
10END CAP (LEFT) (WHITE)
11W11104717 Whirlpool Dial
12W10915367 Whirlpool Screw Assembly
13WPW10544357 Whirlpool Cycle Switch
14W11103597 Whirlpool Temperature Switch
15WP90767 Whirlpool Screw
16WP3404233 Whirlpool Dryer Starter Switch
17W11034979 Whirlpool Knob
18WP694419 Whirlpool Buzzer Adjuster
19W10854240 Whirlpool Laundry Center Dryer Timer
20PANEL, CONTROL (WHITE)
213389453 Whirlpool Hinge Assembly
22END CAP (RIGHT) (WHITE)
23W10640720 Whirlpool Wire Harness
247111P002-60 Whirlpool Clamp
25WPW10334336 Whirlpool Tie Wire
26WP8536939 Whirlpool Spring Clip
