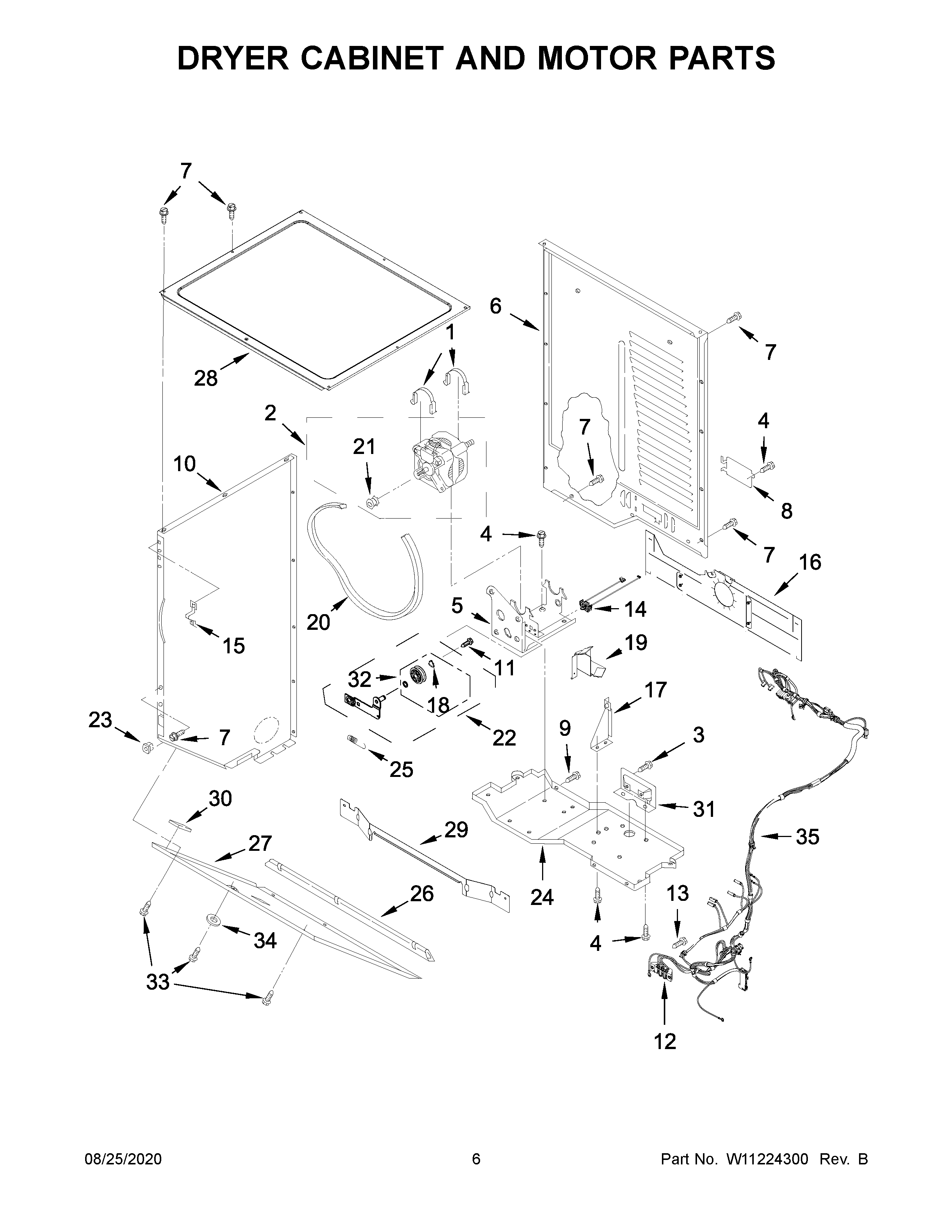

7MWET4027HW0 04 – DRYER CABINET AND MOTOR PARTS

7MWET4027HW0 04 – DRYER CABINET AND MOTOR PARTS

Written by

in

7MWET4027HW0 04 – DRYER CABINET AND MOTOR PARTS

Products

PositionProduct
1CLAMP
3WP273556 Whirlpool Screw
4WP3390631 Whirlpool Screw
5W11107903 Whirlpool Bracket
6W10892491 Whirlpool Rear Panel
7SCREW
8BRACKET, TERMINAL BLOCK
9W10850756 Whirlpool Screw
10W11043388 Whirlpool Panel
10APANEL, SIDE (WHITE (RIGHT HAND))
11WP3389420 Whirlpool Screw
12279318 Whirlpool Terminal
13279393 Whirlpool Terminal Block Screw and Nut Kit
14WPW10411937 Whirlpool Switch
153389231 Whirlpool Clip Front Panel
16PANEL, BACK ASSEMBLY
17BRACKET, BULKHEAD
18WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19BRACKET, ROLLER ASSEMBLY
20661570V Whirlpool Dryer Drum Belt
21279811 Whirlpool Dryer Drive Motor
22WPW10547294 Whirlpool Idler Pulley
23WP692400 Whirlpool Nut
24BASE, DRYER
25WPW10446781 Whirlpool Spring
26COVER, TRANSITION PANEL (WHITE)
273389272 Whirlpool Panel
28TOP, DRYER (ASSEMBLY)
29BRACKET
303389682 Whirlpool Spacer
313393721 Whirlpool Bracket
32279640 Whirlpool Dryer Idler Pulley Kit
33WP693304 Whirlpool Screw
34W11028744 Whirlpool Latch
35W11744211 Whirlpool Wire Harness
