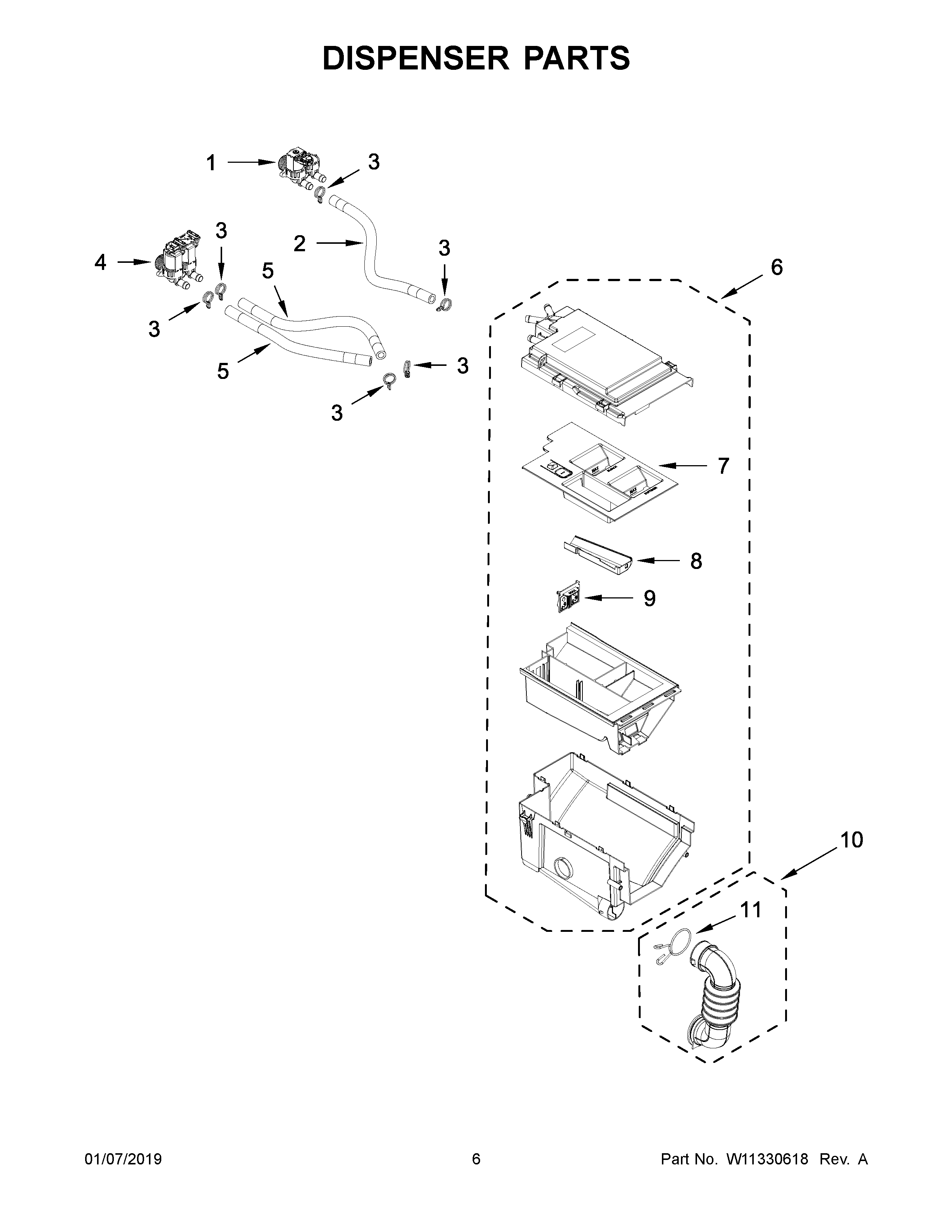

7MWFC9822HC0 04 – DISPENSER PARTS

Written by

Products

Position	Product
1	W11331281 Whirlpool Washer Valve
2	HOSE, INLET (HOT)
3	WP596669 Whirlpool Hose Clamp
4	W11331279 Whirlpool Valve
5	HOSE, INLET (COLD)
6	DRAWER
7	COVER
8	W11316375 Whirlpool Cover Assembly
9	W11316603 Whirlpool Divider Assembly
10	W11316604 Whirlpool Hose
11	W10239910 Whirlpool Clamp
