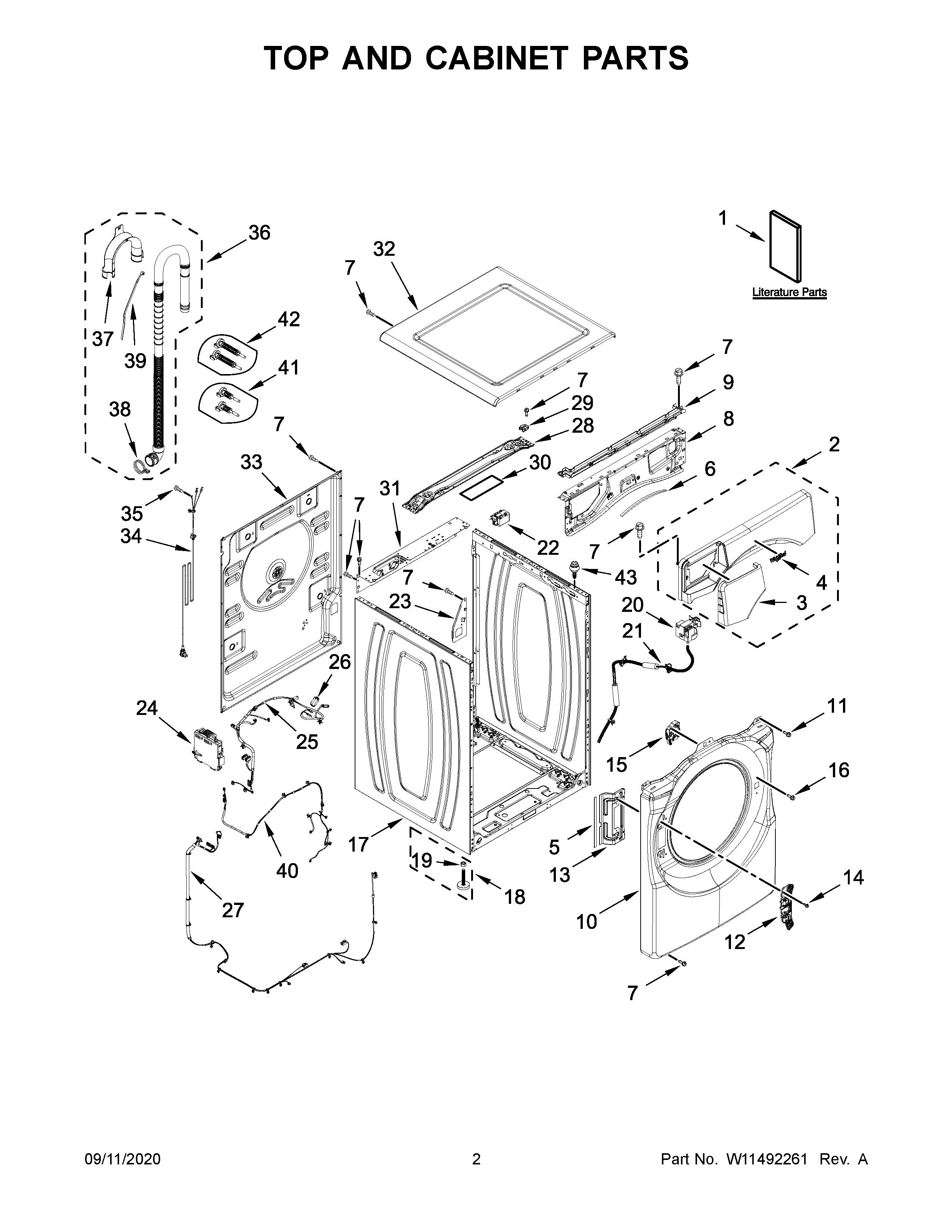

7MWFC9822HC1 02 – TOP AND CABINET PARTS

Products

Position	Product
1C	ENERGY GUIDE
1B	QUICK START GUIDE
1	USE AND CARE GUIDE
1A	INSTALLATION INSTRUCTIONS
2	W11328720 Whirlpool Console
3	W11573819 Whirlpool Handle
4	W11223753 Whirlpool Refrigerator Nameplate
5	EDGE GUARD
6	W11316770 Whirlpool Protector
7	W11568617 Whirlpool Screw
8	W11314678 Whirlpool Bracket Assembly
9	W11458348 Whirlpool Channel
10	W11325564 Whirlpool Panel
11	W11573574 Whirlpool Screw
12	W11310038 Whirlpool Hinge
13	W11310030 Whirlpool Bracket Assembly
14	SCREW
15	W11565030 Whirlpool Latch
16	WP8540282 Whirlpool Screw
17	W11352996 Whirlpool Cabinet
18	W10888529 Whirlpool Washer Leveling Leg
19	WP3359452 Whirlpool Nut
20	SWITCH-WL
21	W11456953 Whirlpool Hose
22	W11316771 Whirlpool Filter
23	W11316769 Whirlpool Bracket
24	W11494300 Whirlpool Electronic Control Board + Core
25	W11318752 Whirlpool Wire Harness
26	W11314662 Whirlpool Fertilizer Beads
27	HARNESS, MAIN LOWER
28	W10467484 Whirlpool Bracket
29	W10245452 Whirlpool Retainer
30	FOAM PAD
31	W11353016 Whirlpool Bracket
32	WPW10460693 Whirlpool Top Assembly
33	W11491750 Whirlpool Panel
34	CORD, POWER
35	W10850756 Whirlpool Screw
36	W11551765 Whirlpool Hose
37	WPW10280024 Whirlpool Retainer
38	WP356138 Whirlpool Hose Clamp
39	WPW10339879 Whirlpool Wire Tie
40	HARNESS, NTC
41	W11316629 Whirlpool Bolt
42	W11316631 Whirlpool Bolt Fastener
43	W10208380 Whirlpool Screw
