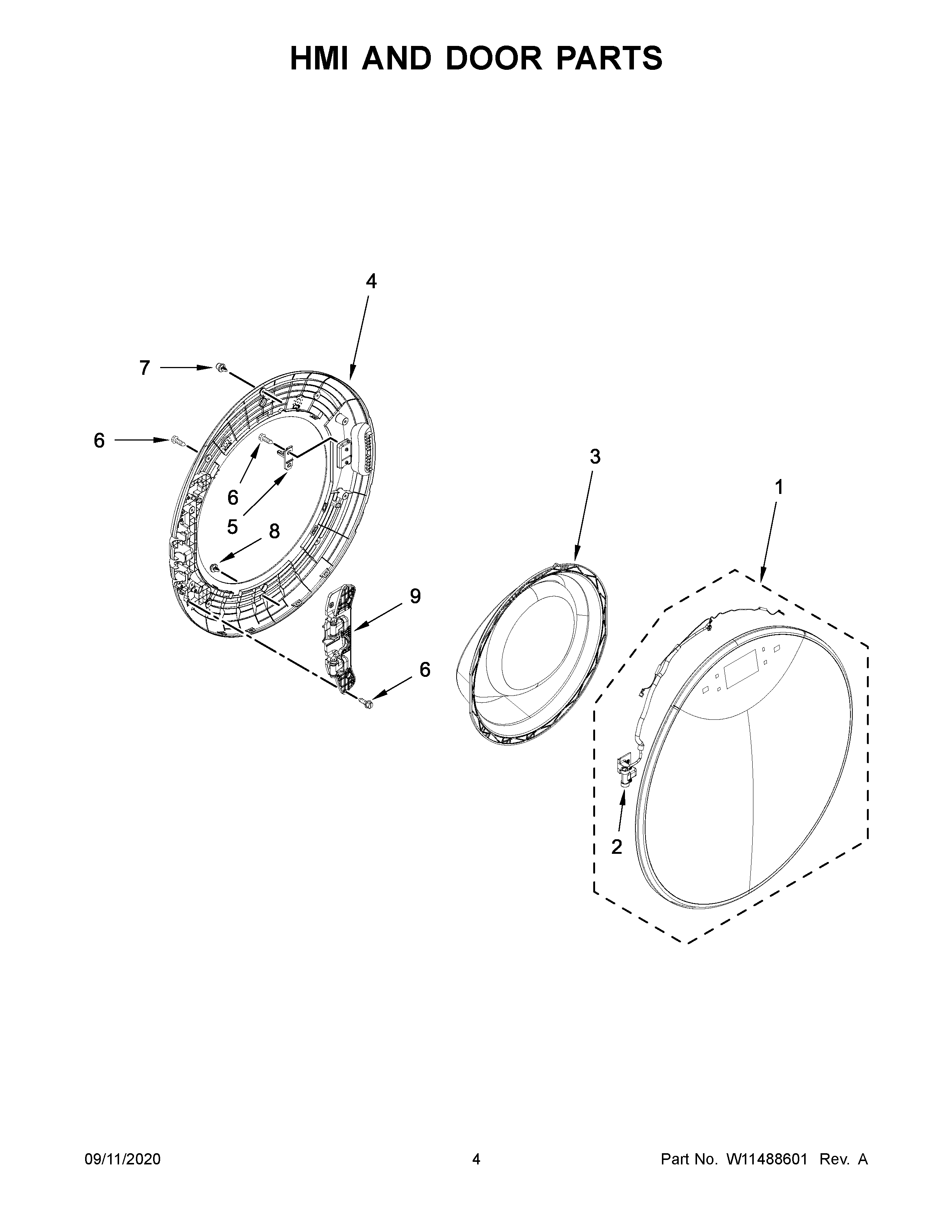

7MWFC9822HW0 03 – HMI AND DOOR PARTS

Written by

Products

Position	Product
1	W11712611-includeCORE Whirlpool W11712611 Core User Interface Panel
2	W11338345 Whirlpool Wire Harness
3	W11316777 Whirlpool Glass Door
4	DOOR, INNER
5	W11316914 Whirlpool Strike
6	WP8534022 Whirlpool Screw
7	W11230200 Whirlpool Bumper Assembly
8	W11310051 Whirlpool Bumper
9	W11310038 Whirlpool Hinge
