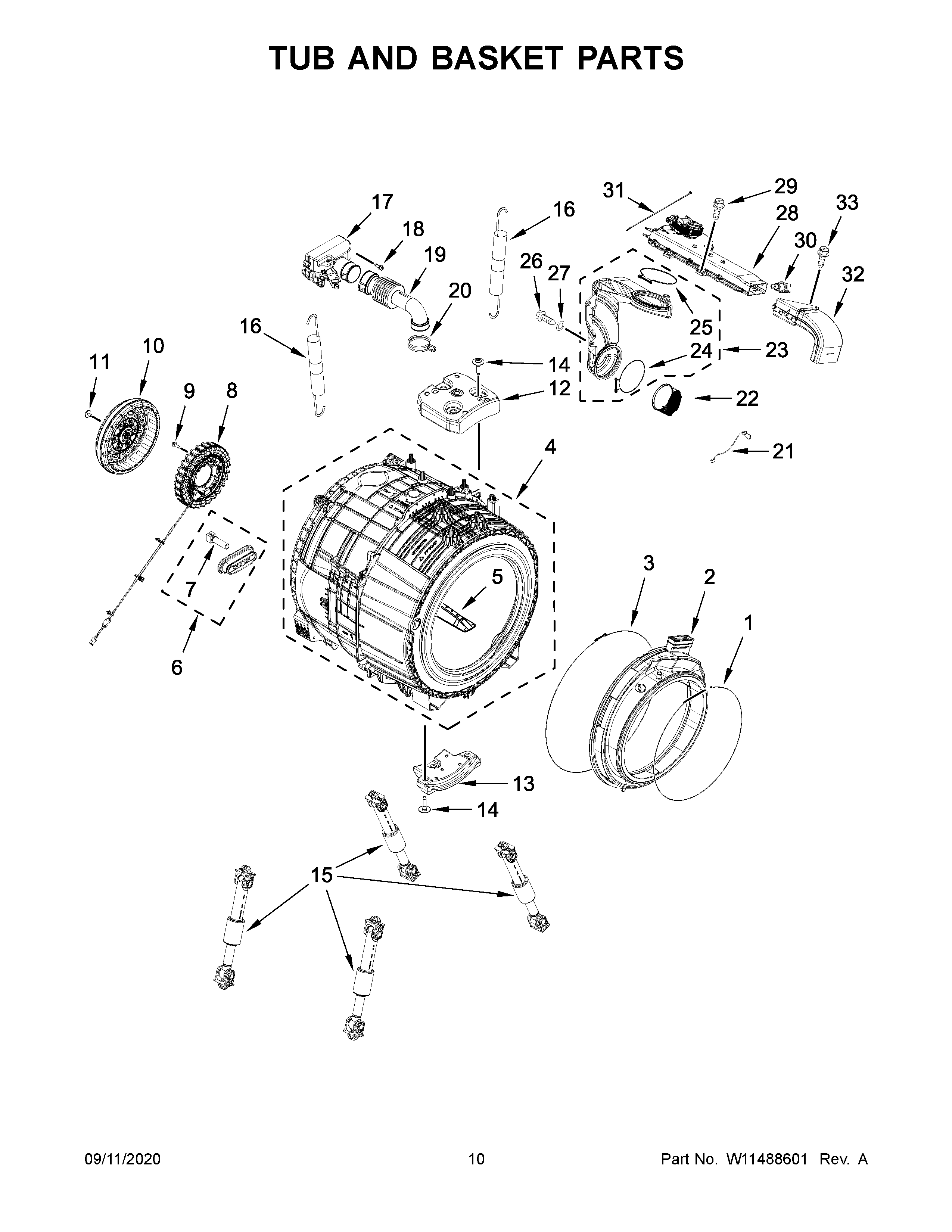

7MWFC9822HW0 06 – TUB AND BASKET PARTS

Products

Position	Product
1	CLAMP
2	BELLOW
3	W11314649 Whirlpool Clamp
4	W11287253 Whirlpool Outer Tub
5	W11460395 Whirlpool Baffle
6	W11320546 Whirlpool Sensor Assembly
7	W11314664 Whirlpool Heater
8	W11354541 Whirlpool Stator
9	W11314661 Whirlpool Screw
10	W11314361 Whirlpool Rotor Assembly
11	W11314657 Whirlpool Screw
12	W11314650 Whirlpool Counterweight
13	W11607191 Whirlpool Counterweight
14	W11314651 Whirlpool Screw
15	SHOCK-ABSR (1 EA)
16	SPRING
17	W11318807 Whirlpool Channel Assembly
18	W11230114 Whirlpool Screw Assembly
19	W11316247 Whirlpool Hose Assembly
20	WP371502 Whirlpool Clamp
21	W11315707 Whirlpool Light
22	W11497956 Whirlpool Filter
23	W11497957 Whirlpool Channel
24	W11318727 Whirlpool Hose Clamp
25	CLAMP, DUCT TO DRYER
26	W11116979 Whirlpool Screw
27	WASHER
28	HEATER
29	WPW10004910 Whirlpool Screw
30	W11712681 Whirlpool Sensor
31	WPW10339879 Whirlpool Wire Tie
32	ASSEMBLY, DUCT DRYER TO BELLOW
33	WP489128 Whirlpool Refrigerator Screw
