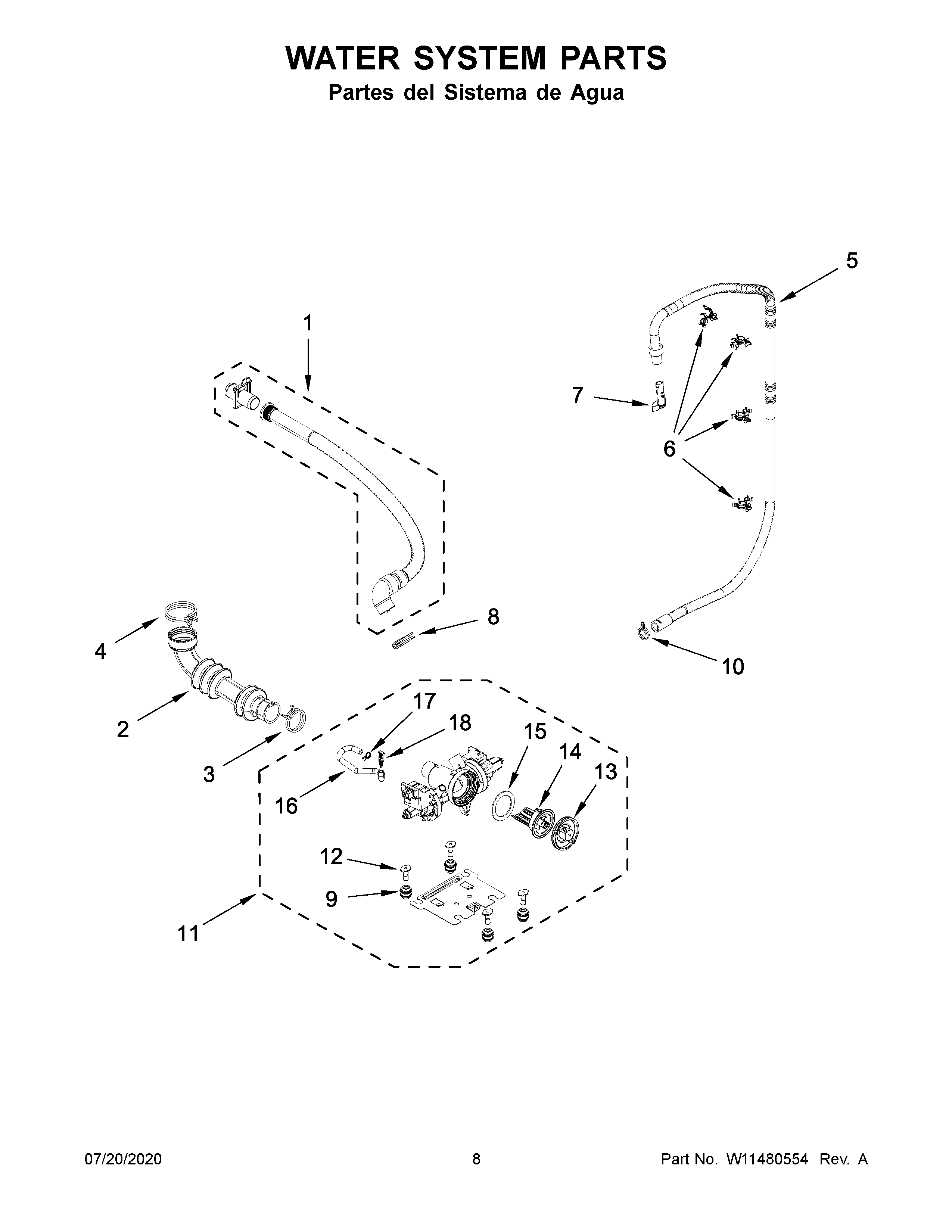

7MWFW560CHW2 05 – WATER SYSTEM PARTS

Products

Position	Product
1	HOSE
2	W11314666 Whirlpool Hose Assembly
3	WP616099 Whirlpool Clamp
4	W10273034 Whirlpool Clamp
5	W11316605 Whirlpool Hose
6	W11316608 Whirlpool Clip Assembly
7	W11316251 Whirlpool Injector Tube
8	WP356138 Whirlpool Hose Clamp
9	W11316663 Whirlpool Grommet Assembly
10	W11316607 Whirlpool Clamp Assembly
11	W11458345 Whirlpool Water Pump
12	W11316664 Whirlpool Pin
13	W11316610 Whirlpool Cap Assembly
14	W11458347 Whirlpool Filter
15	W11316613 Whirlpool Seal Assembly
16	W11316662 Whirlpool Hose
17	W11316666 Whirlpool Clamp
18	W11316669 Whirlpool Plug Assembly
