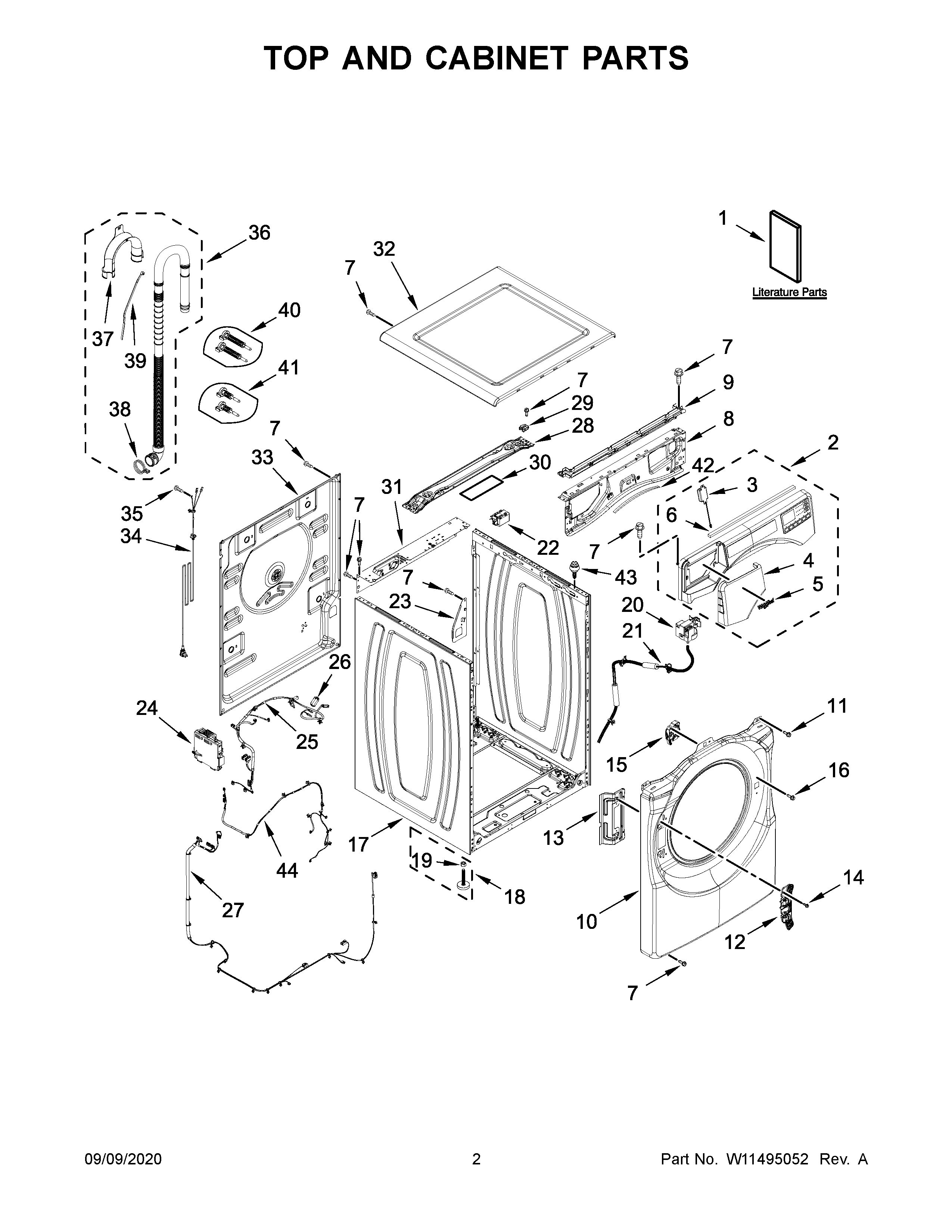

7MWFW5622HW2 02 – TOP AND CABINET PARTS

7MWFW5622HW2 02 – TOP AND CABINET PARTS

Written by

in

7MWFW5622HW2 02 – TOP AND CABINET PARTS

Products

PositionProduct
1AINSTALLATION INSTRUCTIONS
1CENERGY GUIDE
1BQUICK START GUIDE
1USE AND CARE GUIDE
2W11319991 Whirlpool Electronic Control Board + Core
3W11123146 Whirlpool Speaker
4W11318818 Whirlpool Handle
5W11223753 Whirlpool Refrigerator Nameplate
6SEAL
7W11568617 Whirlpool Screw
8W11314678 Whirlpool Bracket Assembly
9W11458348 Whirlpool Channel
10W11318809 Whirlpool Panel
11W11573574 Whirlpool Screw
12W11318815 Whirlpool Hinge
13W11310030 Whirlpool Bracket Assembly
14SCREW
15W11565030 Whirlpool Latch
16WP8540282 Whirlpool Screw
17W11352995 Whirlpool Cabinet Assembly
18W10888529 Whirlpool Washer Leveling Leg
19WP3359452 Whirlpool Nut
20SWITCH-WL
21W11456953 Whirlpool Hose
22W11316771 Whirlpool Filter
23W11316769 Whirlpool Bracket
24W11481989-includeCORE Whirlpool W11481989 Refrigerator Electronic Control Board + Core
25W11316252 Whirlpool Wire Harness
26W11314662 Whirlpool Fertilizer Beads
27W11550159 Whirlpool Wire Harness
28W10467484 Whirlpool Bracket
29W10245452 Whirlpool Retainer
30FOAM PAD
31W11353016 Whirlpool Bracket
32WPW10208373 Whirlpool Top
33W11491750 Whirlpool Panel
34W11316254 Whirlpool Power Cord
35W10850756 Whirlpool Screw
36W11551765 Whirlpool Hose
37WPW10280024 Whirlpool Retainer
38WP356138 Whirlpool Hose Clamp
39WPW10339879 Whirlpool Wire Tie
40W11316631 Whirlpool Bolt Fastener
41W11316629 Whirlpool Bolt
42W11316770 Whirlpool Protector
43W10208380 Whirlpool Screw
44W11449075 Whirlpool Wire Harness
