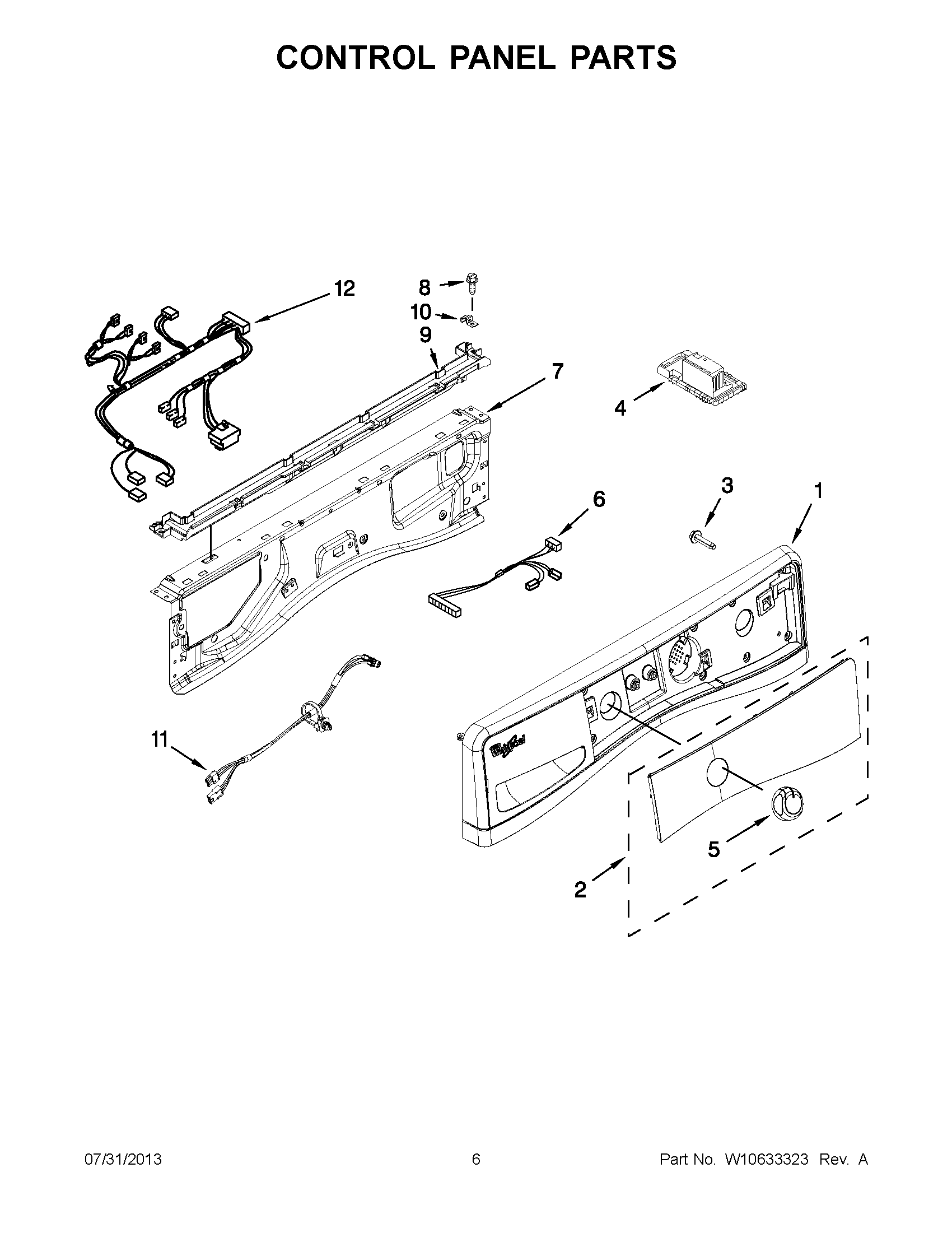

7MWFW80HEBW0 03 – CONTROL PANEL PARTS

7MWFW80HEBW0 03 – CONTROL PANEL PARTS

Written by

in

7MWFW80HEBW0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ASSEMBLY, CONSOLE (WHITE)
2IML ASSEMBLY (WHITE)
3W10589828 Whirlpool Screw
4CONTROL UNIT, CENTRAL
5KNOB ASSEMBLY
6WPW10486216 Whirlpool Wire Harness
7W10208197 Whirlpool Bracket
8WP489464 Whirlpool Refrigerator Screw
9WPW10653575 Whirlpool Channel
10W10317566 Whirlpool Clip
11WPW10486571 Whirlpool Wire Harness
12WPW10550613 Whirlpool Wire Harness
