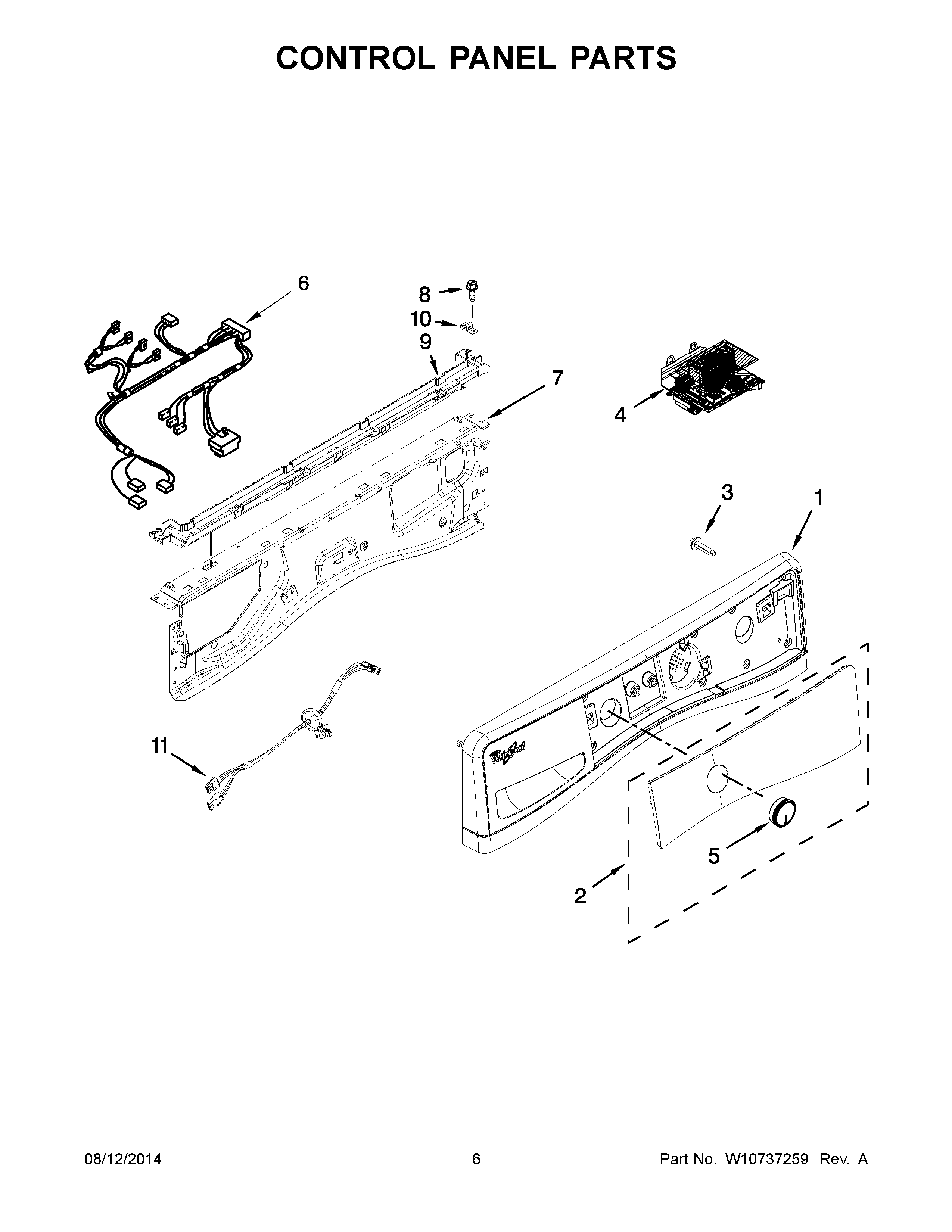

7MWFW81HEDW0 04 – CONTROL PANEL PARTS

7MWFW81HEDW0 04 – CONTROL PANEL PARTS

Written by

in

7MWFW81HEDW0 04 – CONTROL PANEL PARTS

Products

PositionProduct
1ASSEMBLY, CONSOLE (WHITE)
2W10750476 Whirlpool Control Panel
3W10589828 Whirlpool Screw
4W11030390 Whirlpool Electronic Control Board + Core
5W10875909 Whirlpool Timer Knob
6W11229597 Whirlpool Wire Harness
7W10208197 Whirlpool Bracket
8WP489464 Whirlpool Refrigerator Screw
9WPW10653575 Whirlpool Channel
10W10317566 Whirlpool Clip
11WPW10442440 Whirlpool Wire Harness
