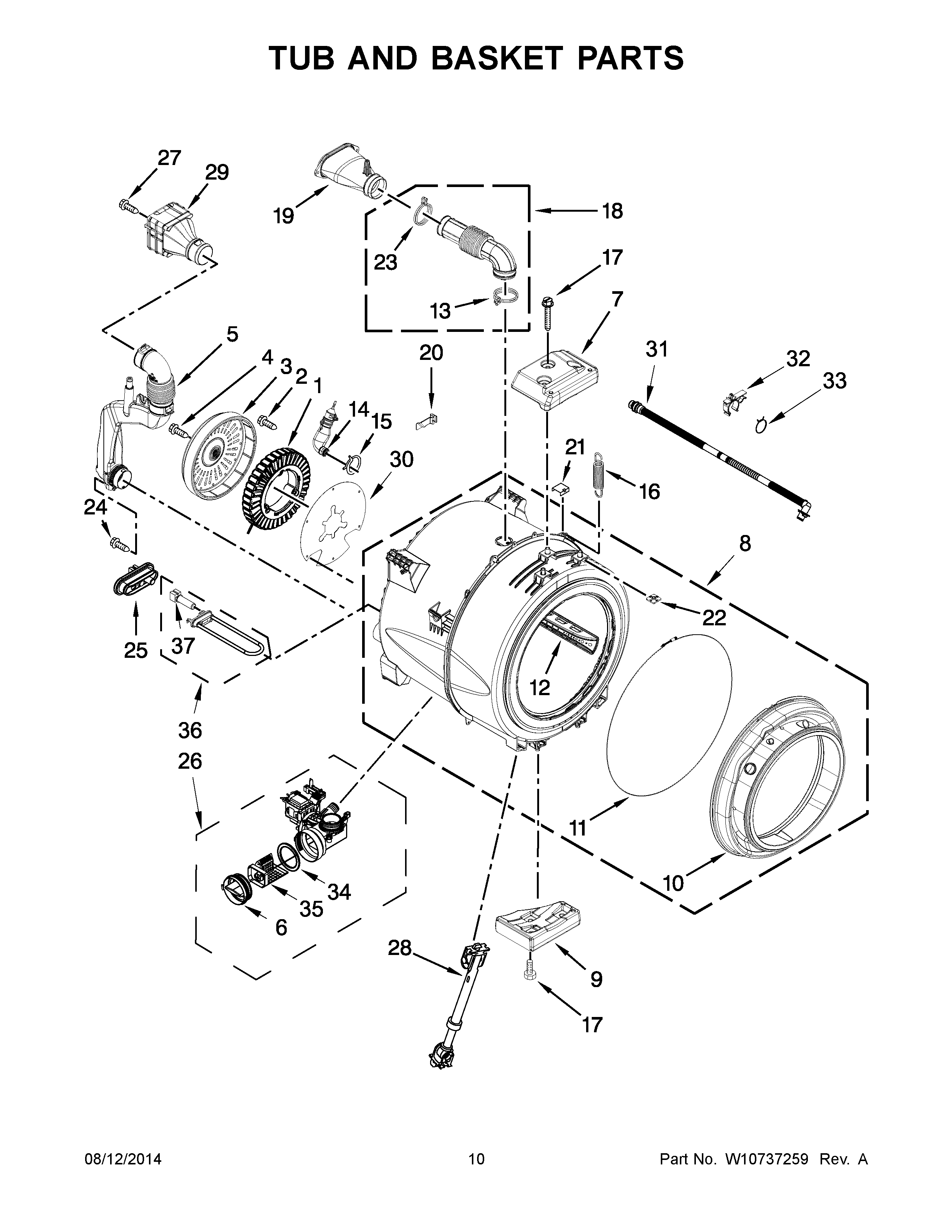

7MWFW81HEDW0 06 – TUB AND BASKET PARTS

Products

Position	Product
1	WPW10716185 Whirlpool Stator
2	WPW10253476 Whirlpool Screw
3	WPW10453673 Whirlpool Rotor
4	W11253212 Whirlpool Dryer Screw
5	PIPE, VENTILATION ASSEMBLY
6	W11568579 Whirlpool Cap
7	W10452854 Whirlpool Counterweight
8	WPW10737541 Whirlpool Outer Tub Assembly
9	COUNTERWEIGHT, BOTTOM
10	W11106747 Whirlpool Washer Front Load Door Boot
11	W11218344 Whirlpool Boot Seal Retaining Ring
12	WPW10597205 Whirlpool Washer Drum Baffle
13	W10353599 Whirlpool Hose Clamp
14	W10903220 Whirlpool Trap Assembly
15	CLAMP, HOSE
16	W11266650 Whirlpool Spring
17	W10261496 Whirlpool Screw
18	WPW10568614 Whirlpool Hose
19	WPW10352818 Whirlpool Vent Pipe
20	W10316388 Whirlpool Clip Assembly
21	WP8540092 Whirlpool Clamp
22	WP8182512 Whirlpool Nut Assembly
23	W10273034 Whirlpool Clamp
24	W10306501 Whirlpool Screw
25	W10318155 Whirlpool Cover
26	WPW10605427 Whirlpool Washer Drain Pump
27	WP8540282 Whirlpool Screw
28	SHOCK-ABSR
29	W10628719 Whirlpool Housing
30	W10870753 Whirlpool Shield
31	WPW10562025 Whirlpool Hose
32	W10441646 Whirlpool Clip Assembly
33	WP285655 Whirlpool Hose Clamp
34	W11673307 Whirlpool Washer Seal
35	W11712579 Whirlpool Filter
36	HEATER
37	WPW10467289 Whirlpool Sensor
